Daewoo B25S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
7.
Remove wiper seal (12) and retaining ring (13)
and U-packing (14) from the bearing.

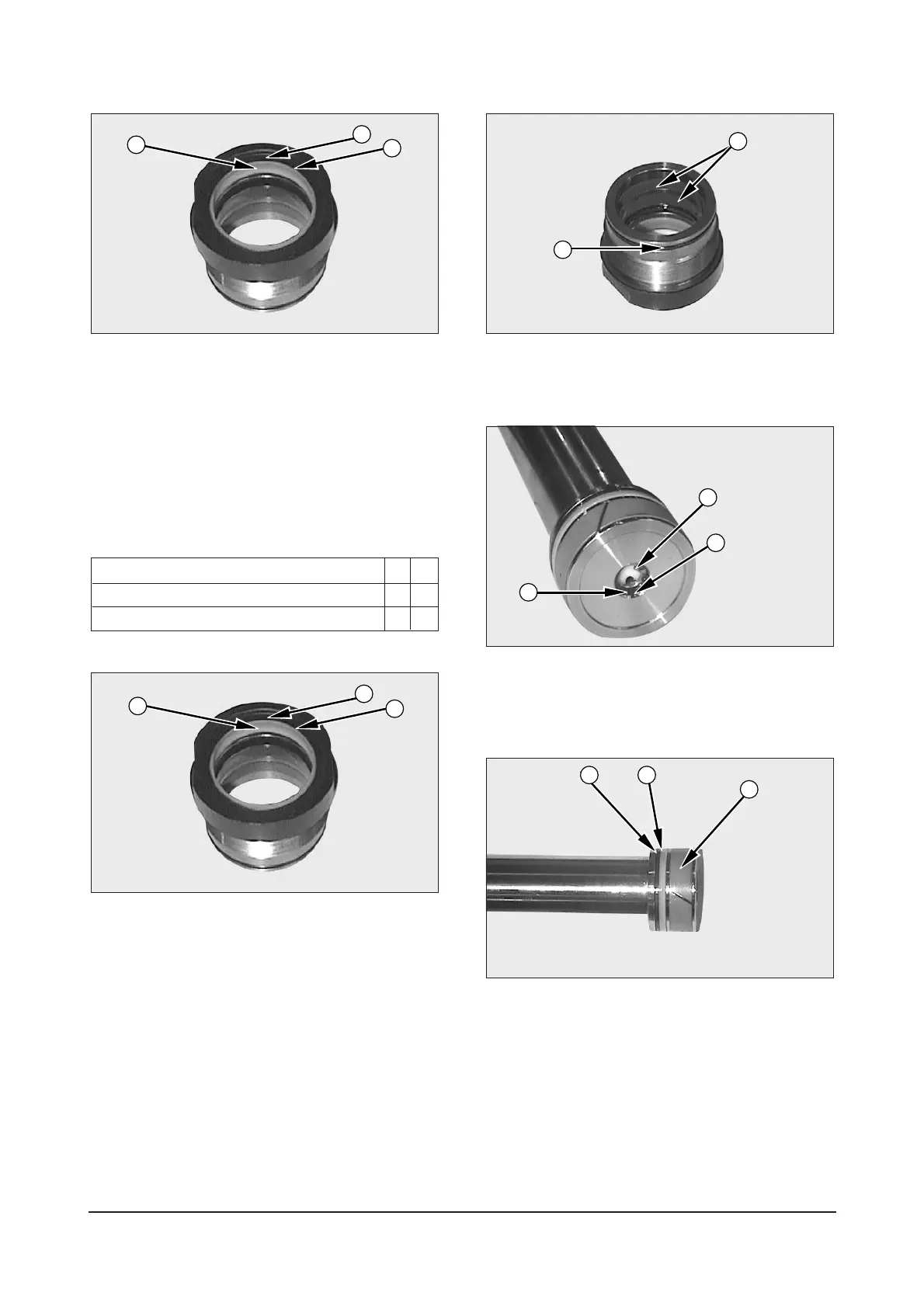

Assemble Primary Lift
Cylinders
1. Install U-packing (1) in the bearing.
2. Install wiper seal (2) and retaining ring (3). Install
the seal with the lip toward the outside.
3. Install O-ring seal (4) and two slyd-rings(5).
4. Install check valve (6), retaining ring (7) and
spacer (8).
5. Install wear ring (9), U-packing (10) and back up
ring (11) on the cylinder rod.
Tools Needed A B
Hydraulic Cylinder Repair Stand 1
Wrench Assembly 1
34
IDCD214P
14
13
12
IDCD214P
1
3
2
IDCD213P
5
4
IDCD212P
6
7
8
IDCD211P
9
10
11
