Vehicle Systems Disassembly & Assembly

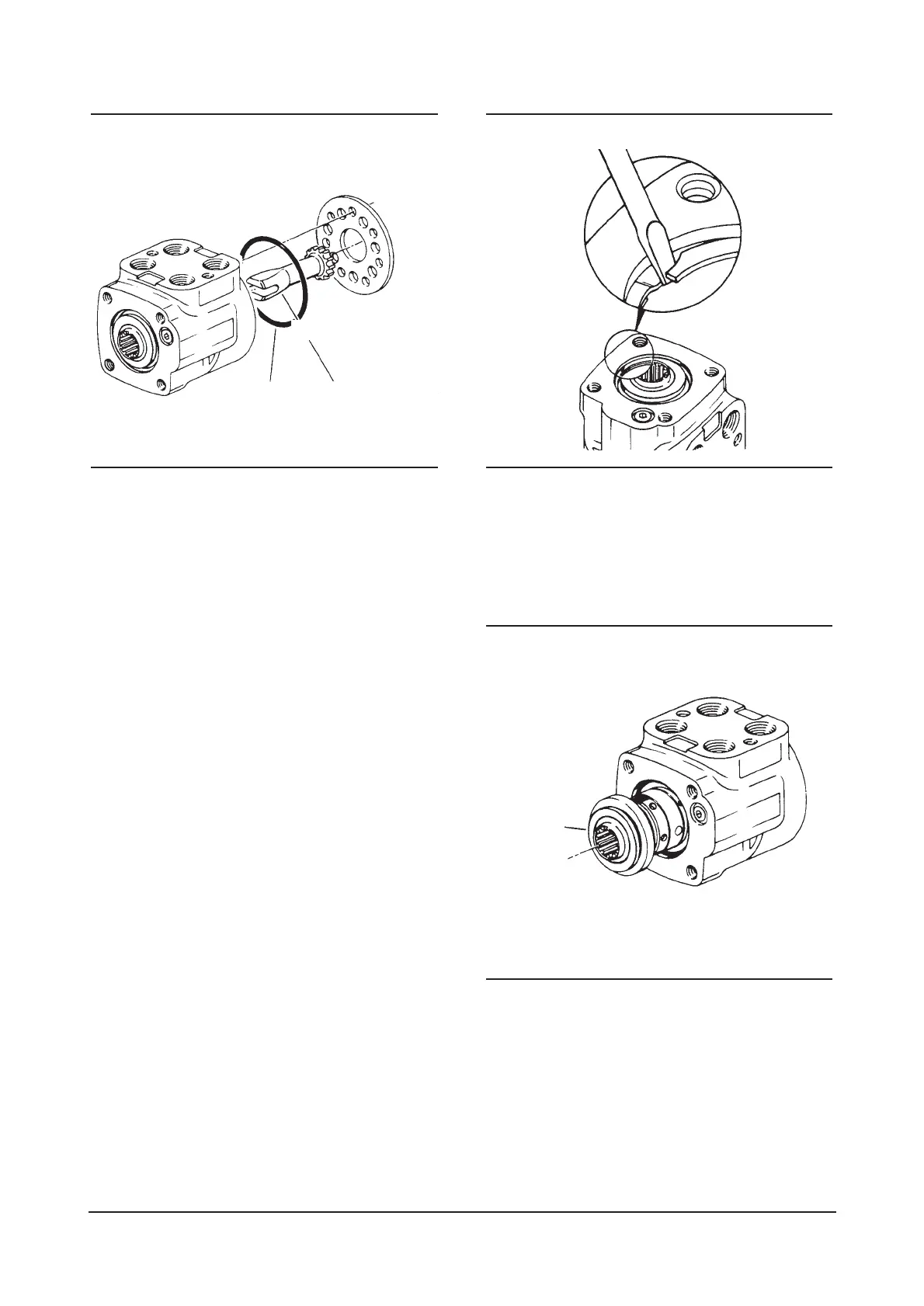

8.
Remove drive.
9. Remove spacer plate.
10. Remove seal from housing.
Control End
11 Remove housing from vise. Place housing on a
clean soft cloth to protect surface finish. Use a
thin bladed screwdriver to pry retaining ring from
housing.
12. Rotate spool and sleeve until pin is horizontal.
Push spool and sleeve assembly forward with
your thumbs just far enough to free gland bush-
ing from housing. Remove bushing.
47
Seal
Drive
Drive
IDCD281S
IDCD282S
IDCD283S
Seal Gland
Bushing
