Vehicle Systems Disassembly & Assembly
13.

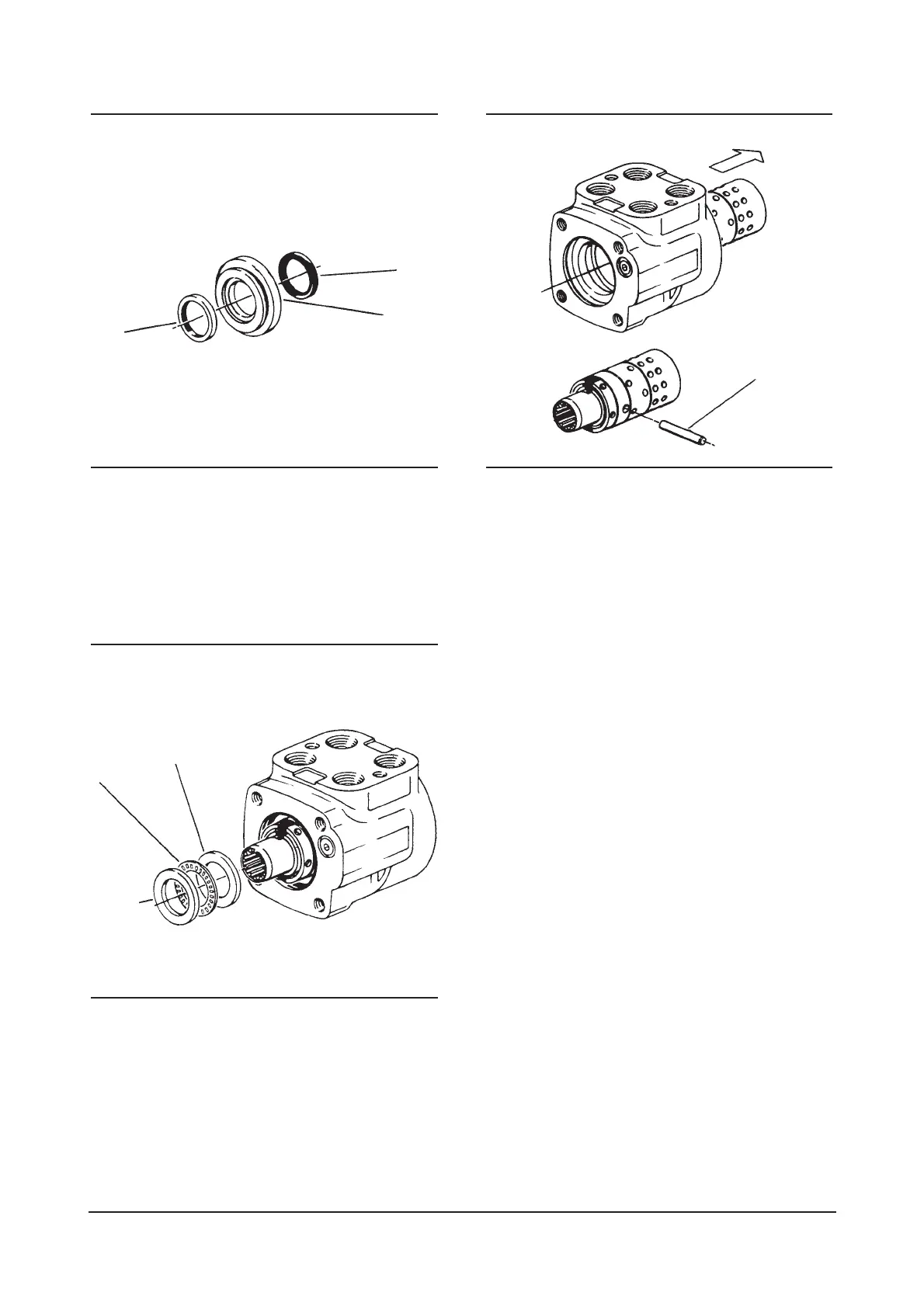

Remove quad ring seal from seal gland bushing.
14. Use a thin bladed screwdriver to pry dust seal
from seal gland bushing. Do not damage
bushing.
15. Remove 2 bearing races and the needle thrust
bearing from spool and sleeve assembly.
16. Remove spool and sleeve assembly from 14 hole
end of housing.
ATTENTION: Do not bind spool and sleeve in houst-
ing. Rotate spool and sleeve assembly slowly when
removing from housing.
17. Push pin from spool and sleeve assembly.
48
Quad
Ring
Seal
Seal
Gland
Bushing
Pin
Dust
Seal
Needle
Thrust
Bearing
Bearing
Race
Bearing
Race
IDCD284S
IDCD285S
IDCD286S
