Vehicle Systems Disassembly & Assembly
18.

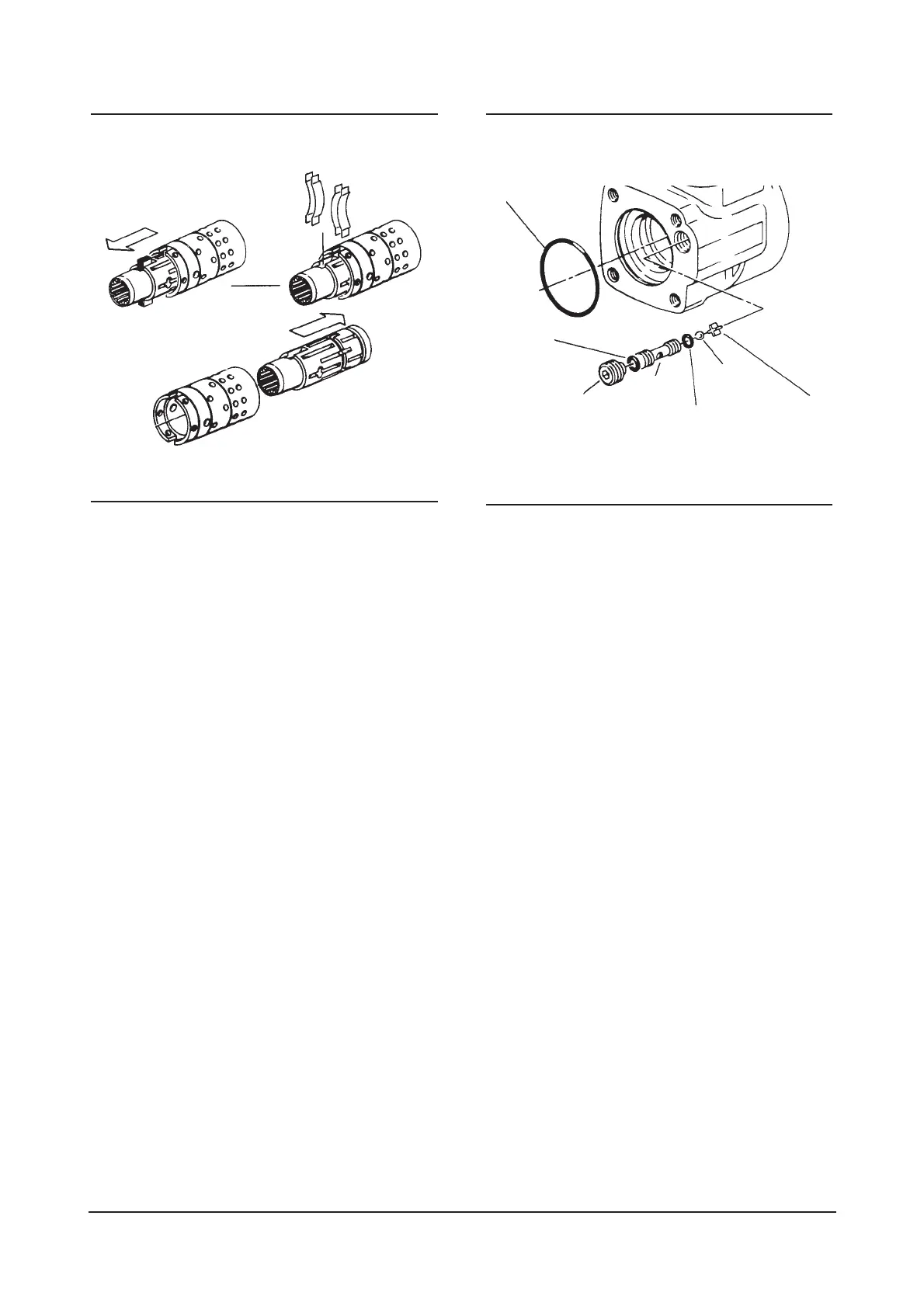

Push spool partially from control end of sleeve,
then remove 4 centering springs from spool
carefully by hand.
19. Push spool back through and out of sleeve.
Rotate spool slowly when removing from sleeve.
20. Remove seal from housing.
21. Remove set screw from housing.
22. Screw a #10-24 machine screw into end of check
ball seat. Then by pulling on screw, with a pliers,
lift seat out of housing.
23. Remove 2 seals from check valve seat.
24. Tip housing to remove check ball and check ball
retainer.
49
9,3mm
[.36in.] ID
Seal
Set Screw
Check
Ball
Seat
7.7mm
[.30 in.] ID
Check
Ball
Retainer
Check
Ball
IDCD288S
IDCD287S
To Next Page
