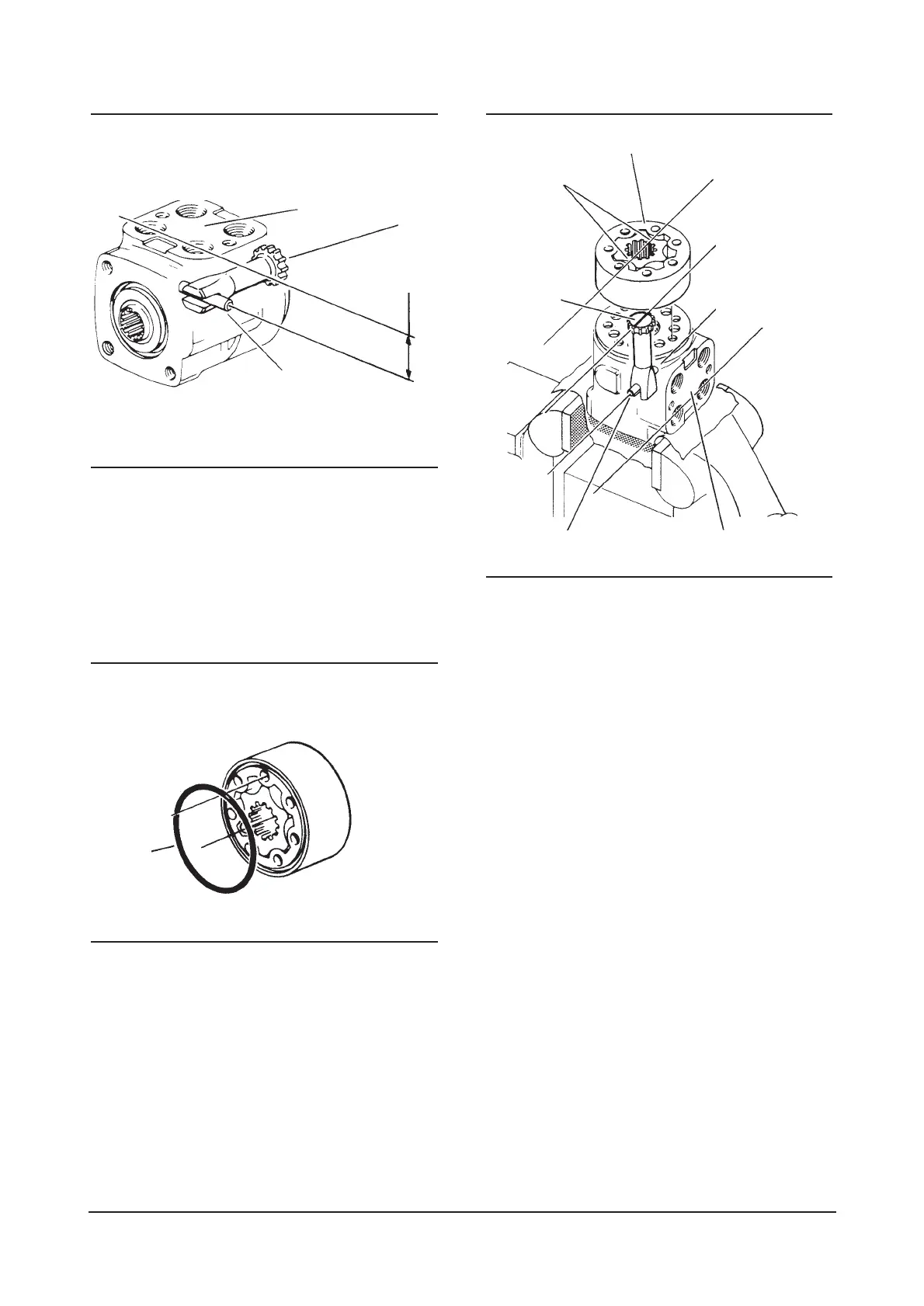

Rotate spool and sleeve assembly until pin is
parrallel with port face. Install drive, make sure
you engage drive with pin, To assure proper
alignment, mark drive as shown. Note relation-
ship between slotted end fo drive to splined end
of drive when marking.
22. Install 73,5 mm [2.89 in.] ID seal in spacer plate
or gerotor (meter).
23. With seal side of meter toward spacer plate, align
star valleys on drive. Note the parallel relation-
ship of reference lines A, B, C, and D. Align bolt
holes without disengaging meter from drive.
54
IDCD298S
IDCD299S
IDCD300S
Port Face
Pin
Pin Parallel
with Port
Face
Drive
Seal Groove this Side of Gerotor (Meter)
Star Valley
A
B
C
D
Drive
(Marked)
Pin
Seal
Port Face
