Daewoo B25S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
24.
Install drive spacer (s) when used, in meter.
25. Install 73.5 mm [2.89 in.] ID seal in gerotor (meter)
or end cap, see notes.
26. Install end cap on gerotor, align holes.
27. Install 7 dry cap screws in end cap. Pretighten
screws to 11 to 17 N
Im [100 to 150 lbIin] then
torque screws to specifications.
Actual
Displacement
Spacer
cm
3
/r(in
3
/r)
Length mm[in.]
45[ 2.8] None
60[ 3.6] None
75[ 4.5] None
95[ 5.9] 3.56[ .140]
120[ 7.3] 6.10[ .240]
145[ 8.9] 10.29[ .405]
160[ 9.7] 12.19[ .480]
185[11.3] 15.62[ .615]
230[14.1] 21.97[ .865]
295[17.9] 28.45[1.120]
370[22.6] 41.15[1.620]
460[28.2] 53.67[2.113]
590[35.9] 66.37[2.613]
740[45.1] 91.77[3.613]
55
Seal
Drive Spacer(s)

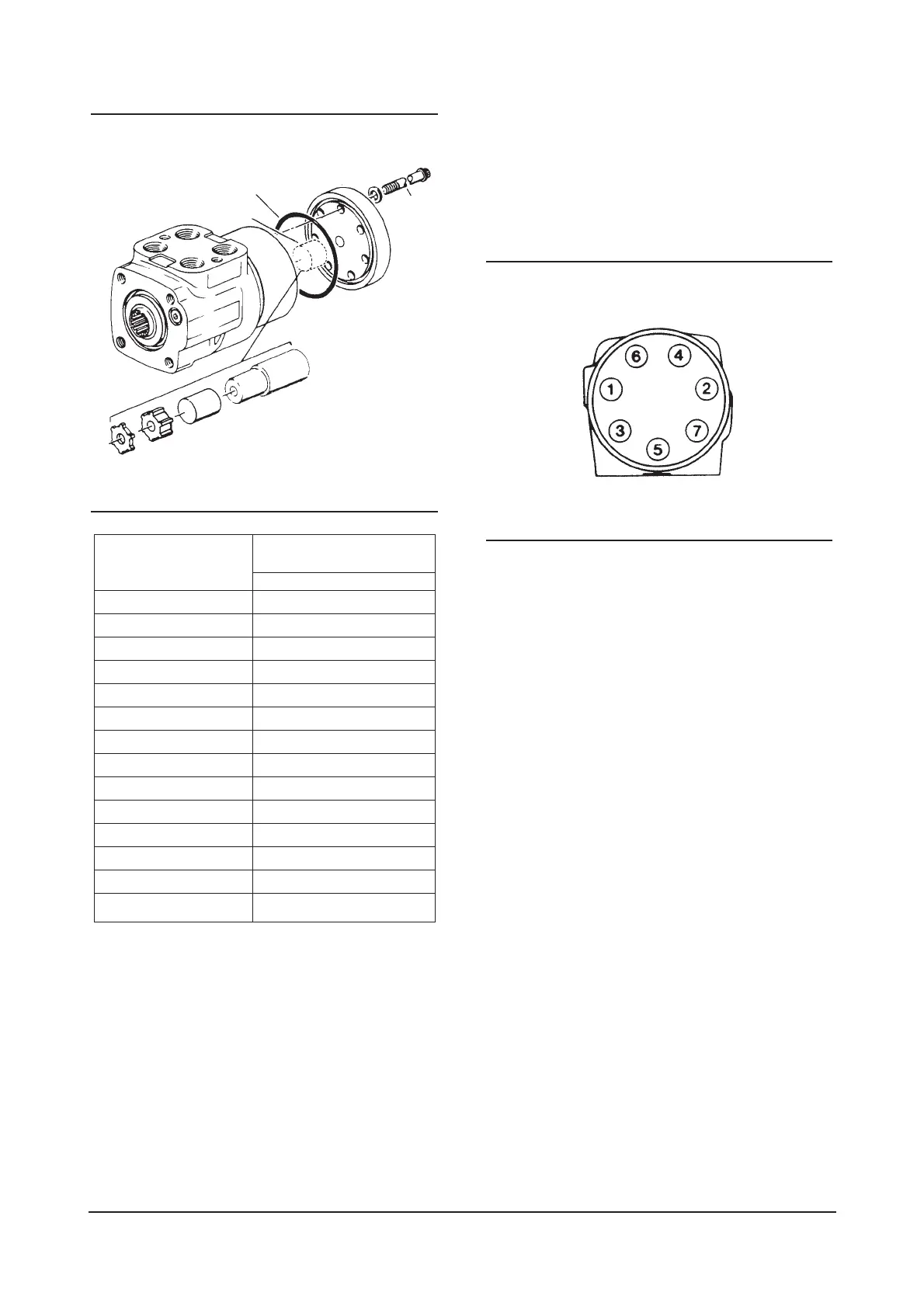

IDCD301P
IDCD302P
