Power Train Specifications
Cushion Tire Mounting

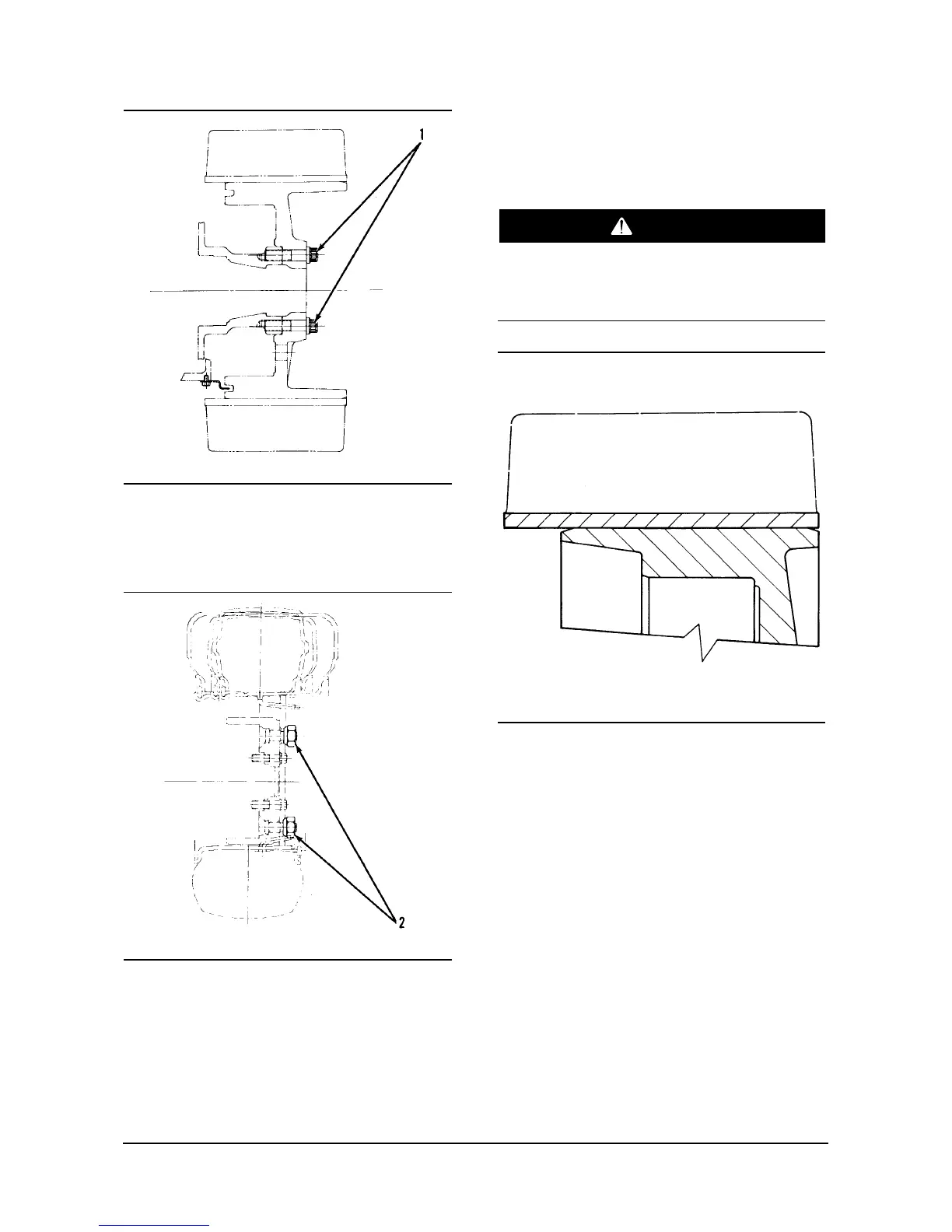

Tighten the cushion tire wheel mounting bolts (1) to
a torque of ..................270 L 25 N¥m (200 L 18 lb¥ft)
Pneumatic Tire Mounting
Tighten the pneumatic tire wheel nuts (2) to a torque
of ................................644 L 34 N¥m (475 L 25 lb¥ft)
Use ÒcrisscrossÓ procedure to tighten the nuts.
BC Series
BC20S-2, BC25S-2
The drive tire must be installed as shown below.
Failure to do so will decrease the stability of the lift
truck and can cause injury to the operator.
Install the tire so that the edge of the tire is even with
the outside edge of the wheel.
