Power Train Systems Operation
Systems Operation
General Information
Power Flow

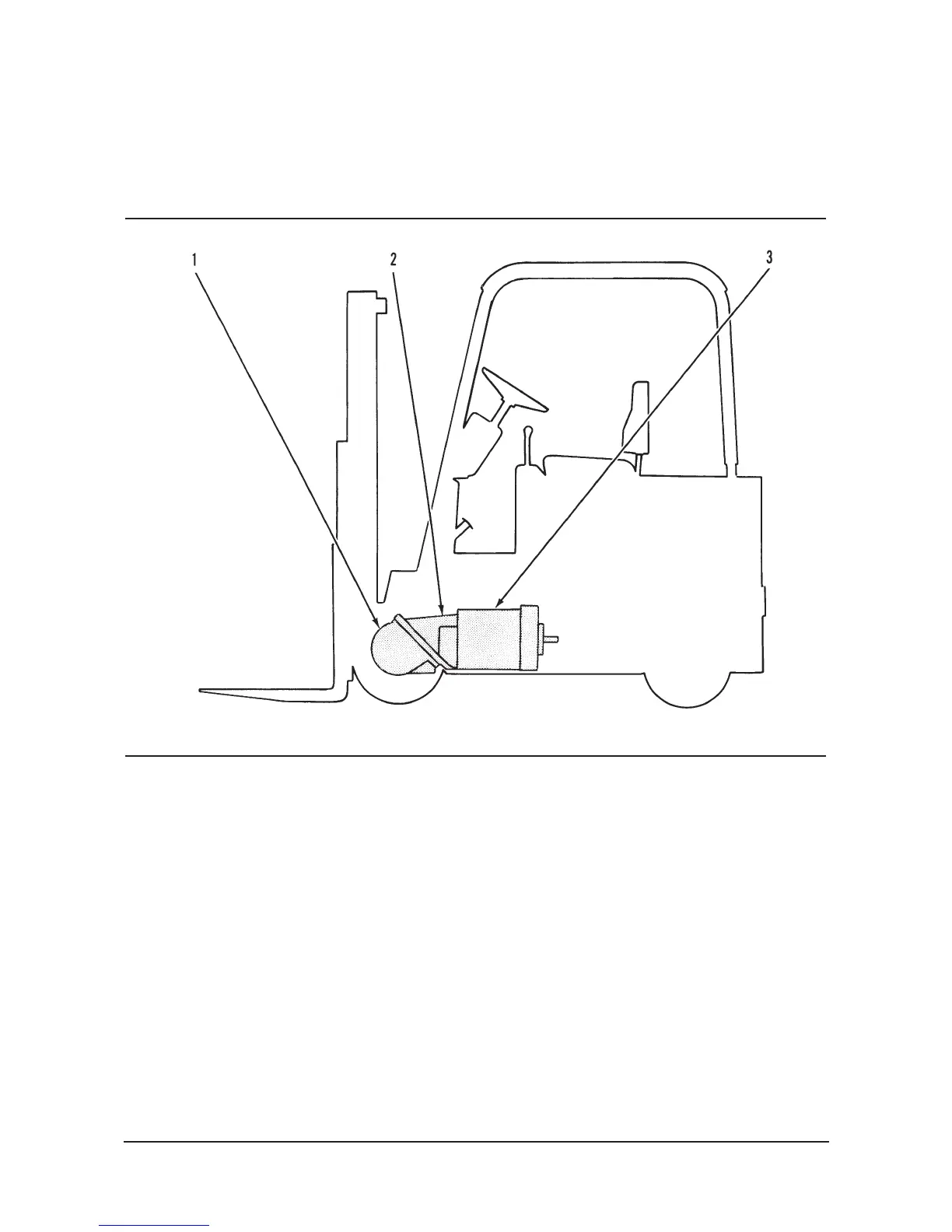

(1) Final drive (2) Power transfer group (3) Drive motor
5
The power train for the B, BC MODEL Lift Trucks
consists of three main components: drive motor (3),
power transfer group (2) and final drive (1).
Electric storage batteries are used as a power source
for drive motor (3). The drive motor turns power
transfer group (2). The power is sent through the
power transfer group to the axles. The axle turns final
drive (1), which is part of the drive wheels.
