Power Train Disassembly & Assembly
Oil Cooled Disc Type Brake

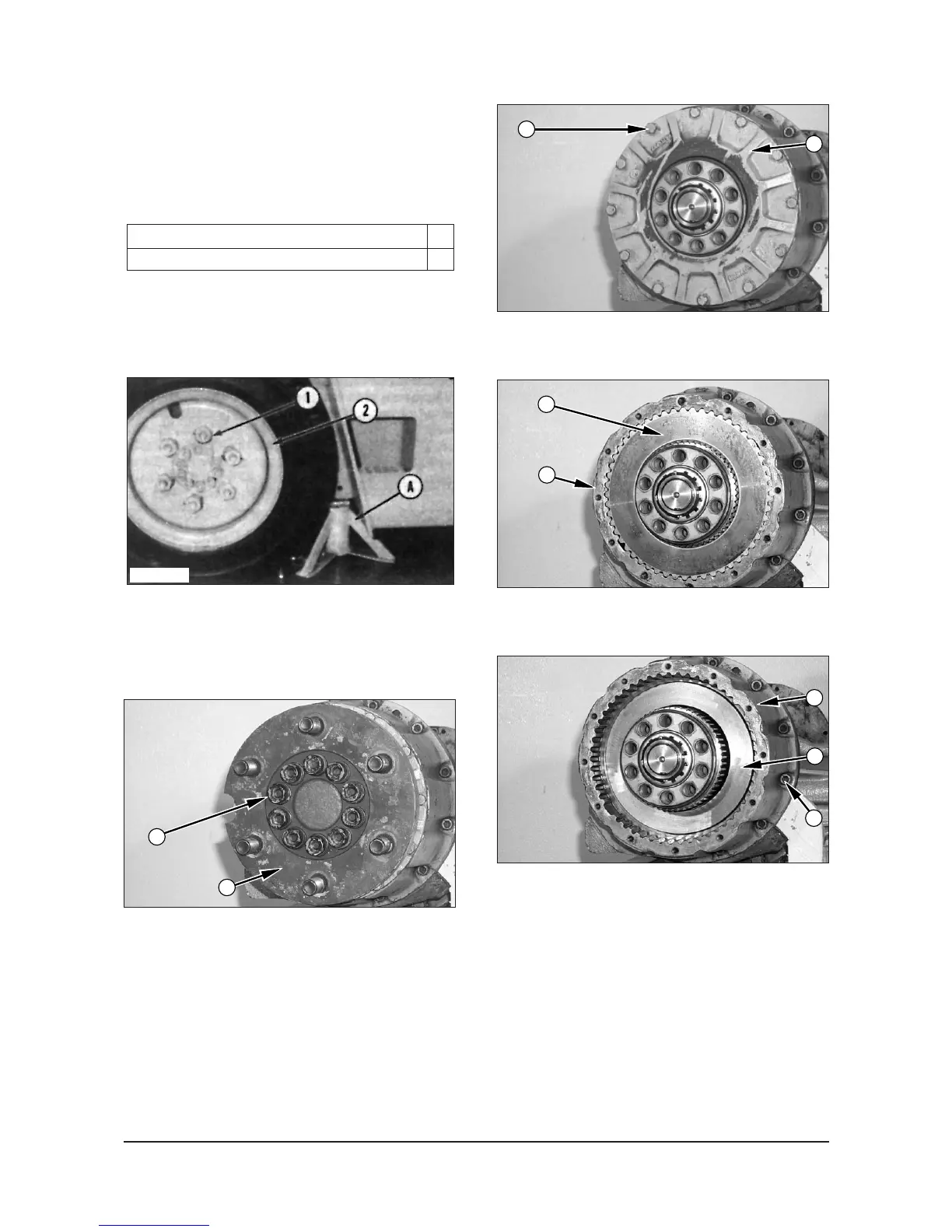

Remove & Install Brakes
(Oil Cooled Disc Type)
NOTE : The procedure to remove and install oil
cooled disc type brakes is the same for both sides of
the machine.
1. Put the lift truck in position on tooling (A).
2. Remove the bolts (1) and wheel (2).
3. Remove bolts (3) and adapter (4).
4. Remove bolts (5) and cover (6).
5. remove the plates and discs (7) from hub (8).
6. Remove piston (9) from hub (8).
7. Remove bolts (10) and hub (8).
NOTE : Check the condition of all O-ring seals and
components. If any seals or components are worn or
damaged use new parts for replacement.
Tools Needed A
Jack Stand 4
48
IDCD382S
To Next Page
