Daewoo D20-2 - Hydraulic Systems Operation; System Operation for D20;25;30 S-2 Models

Systems Operation
Hydraulic System
(D20/25/30S-2, G20/25/30S-2, GC20/25/30S-2 Model)
6 of 29New Hydraulic Systems Systems Operation

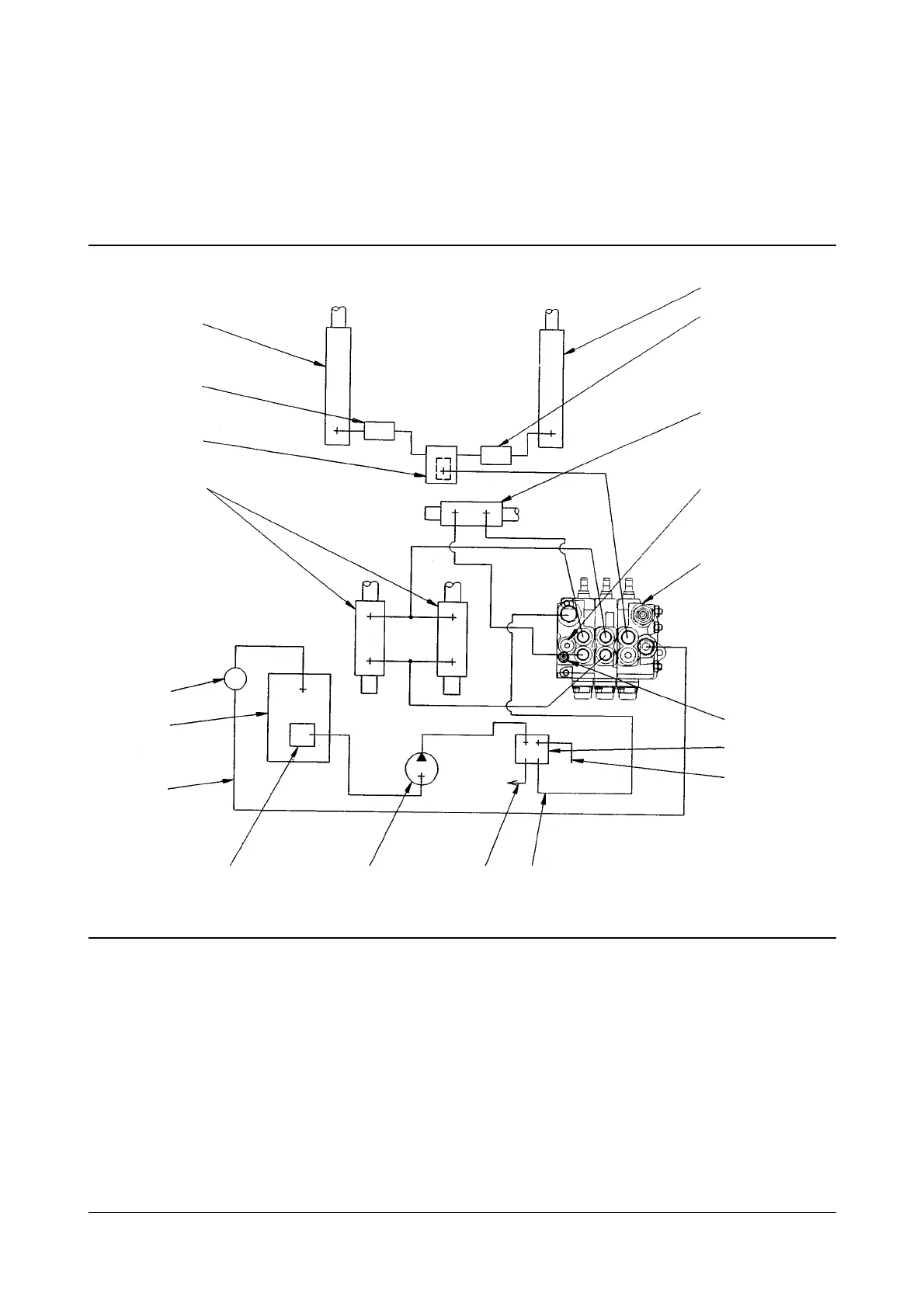

Basic Hydrauic Schematic With Standard Lift
(1) Lift cylinders. (2) Excess flow protectors. (3) Sideshift cylinder(s)(if equipped). (4) Lowering flow control valve. (5) Hydraulic
control valve. (6) Tilt cylinders (7) Relief valve(lift). (8) Relief valve(tilt and sideshift). (9) Hydraulic oil filter. (10) Hydraulic oil
tank. (11) Priority valve. (12) Oil line(trucks with power brakes only). (13) Oil line. (14) Hydraulic strainer. (15) Hydraulic pump.
(16) Oil line to steering gear. (17) Oil line.
12
11
8
5
7
3
2
1
1
2
4
6
9
10
13
14 15
16 17
IDCS002B
