Vehicle Systems Disassembly & Assembly
Steering Wheel
Remove & Install Steering Wheel

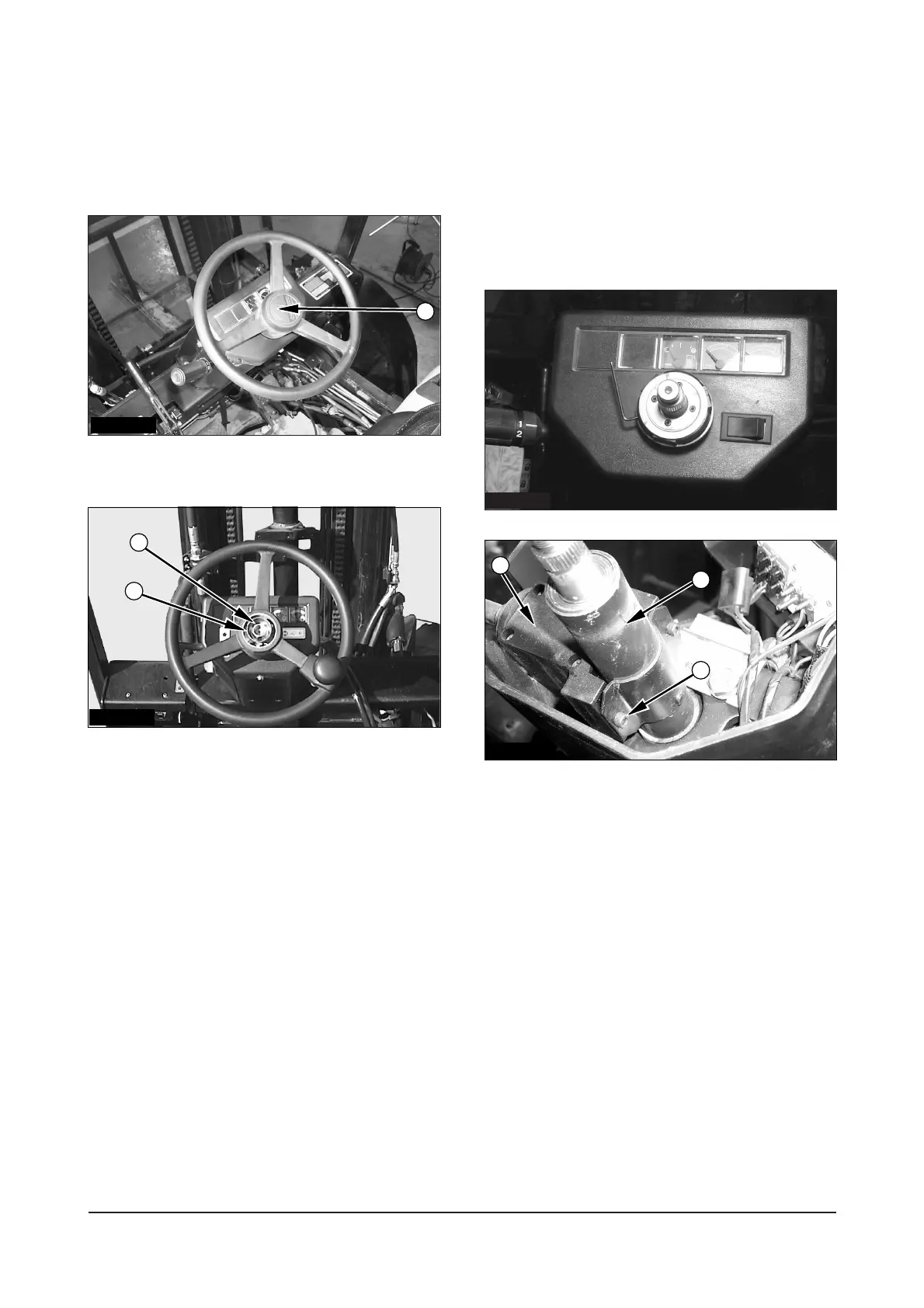

1. Remove cap (1) from the steering wheel.
2. Remove nut (2) and cup (3) from the steering
wheel shaft. Put location marks on the steering
wheel and the steering wheel shaft for installation
purposes.
3. Use hammer (A) to remove the steering wheel
from the shaft.
NOTE : Use the following steps to install the steering
wheel.
4. Put the steering wheel on the steering wheel shaft
in its original position.
5. Install cup (3) and nut (2). Tighten nut (2) to a
torque of 80
L 7 N¥m (60 L 5 lb¥ft).
6. Install cap (1).
Steering Unit
Remove & Install Steering Unit
Start By:
a. Remove steering wheel.
1. Open the access cover for the fuse panel.
Remove horn switch and open the top cover.
2. Loosen two bolts (1). Slide directional control
switch (3) off of steering column (2). Set switch (3)
aside, clear of the steering column.
