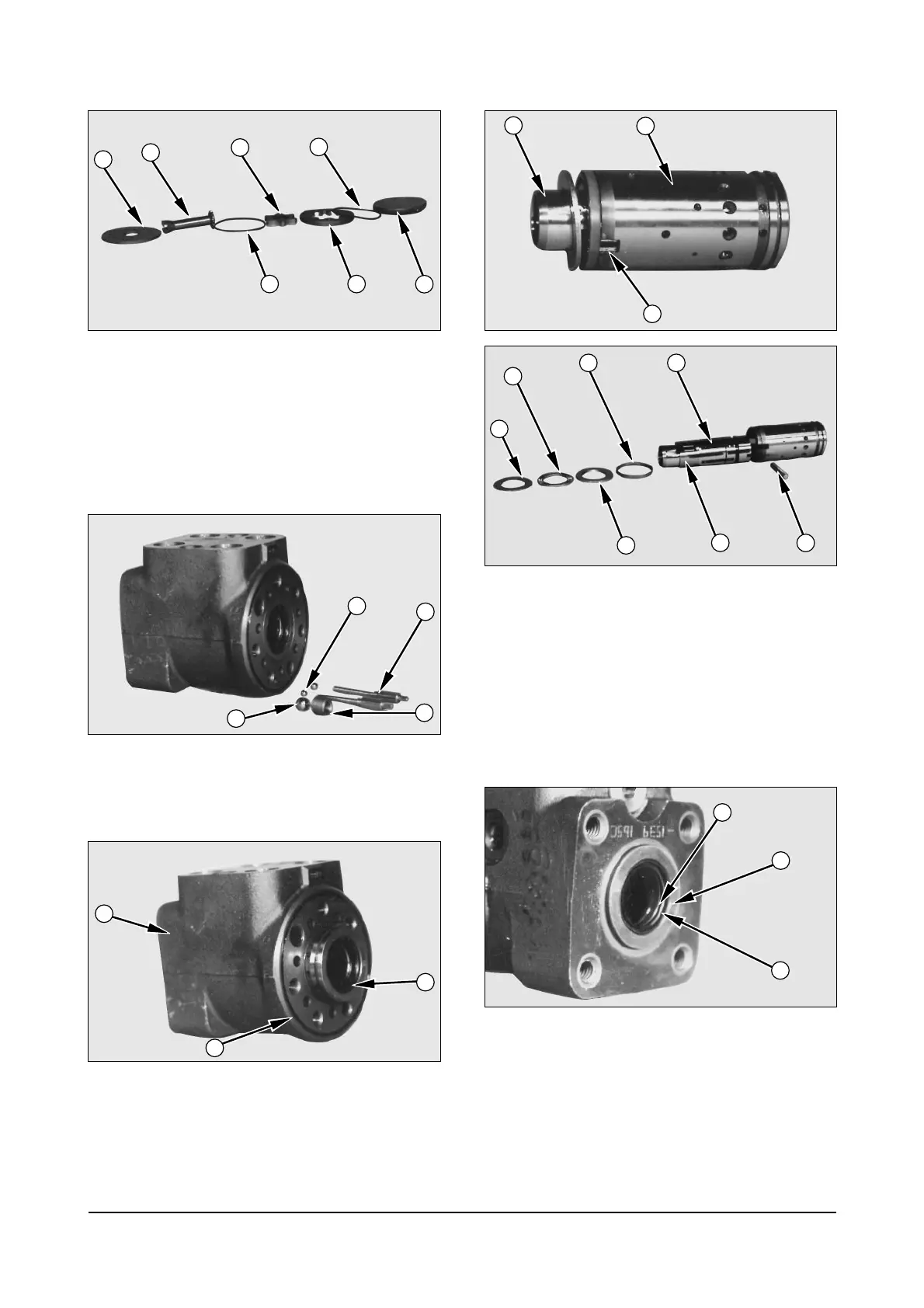

4. Remove the components from housing (3) as
follows:
a. Remove plate (6) from housing (3).
b. Remove shaft (7) from gerotor (9).
c. Remove gerotor (9) from housing (3).
d. Remove O-rings seal (8) from housing (3).
e. Remove O-ring seal (10) from cap (4).
5. Remove suction valve balls (12) and pins (11).
6. Remove screw (13) and check valve ball (14).
7. Remove O-ring seal (15) from steering unit body
(2).
8. Remove sleeve (16) from the body.
9. Remove the components from sleeve (16) as
follows :
a. Remove pin (18) from spool (17) and sleeve
(16).
b. Remove spool (17) from sleeve (16).
c. Remove two bearing races (19), (20) and
bearing (21) from spool (17).
d. Remove six springs (23) and ring (22) from
spool (17).
10. Remove O-ring seal (24) and king-ring (25) from
body.
11. Check the condition of dust seal ring(26).
Replace seals with new if worn or damaged.
