Daewoo D35S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
Disassemble And Assemble
Steering Cylinder
Start By :
a. Remove steering cylinder.

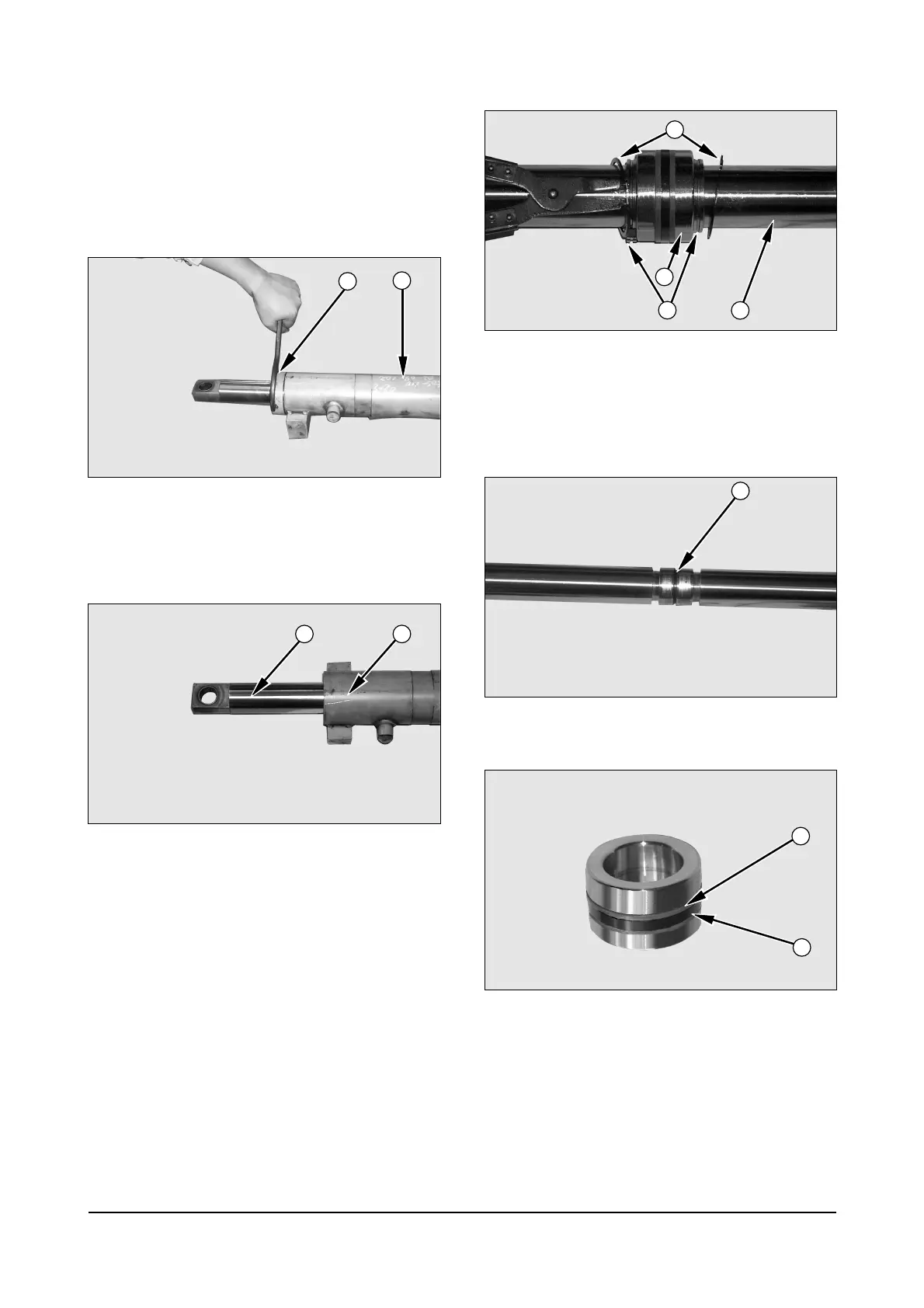

1. Put the steering cylinder in position in a vise.
2. Loosen head (1) from tube (2) with a spanner
wrench.
3. Remove rod assembly (3) from the tube (2).
4. Remove retaining ring (5) with a plier and ring (6)
from each side of piston (7) that holds piston in
position on rod (3).
5. Remove piston (7) from the rod (3).
6. Remove O-ring seal (8) from the rod.
7. Remove seal ring (9) and backup seal (10) from
the piston.
8. Loosen the head in the opposite end of the tube.
25
ICCD065P
1
2
ICCD066P
2
3
ICCD066P
2
3
ICCD068P
5
6
3
7
ICCD069P
8
ICCD070P
9
10
