30

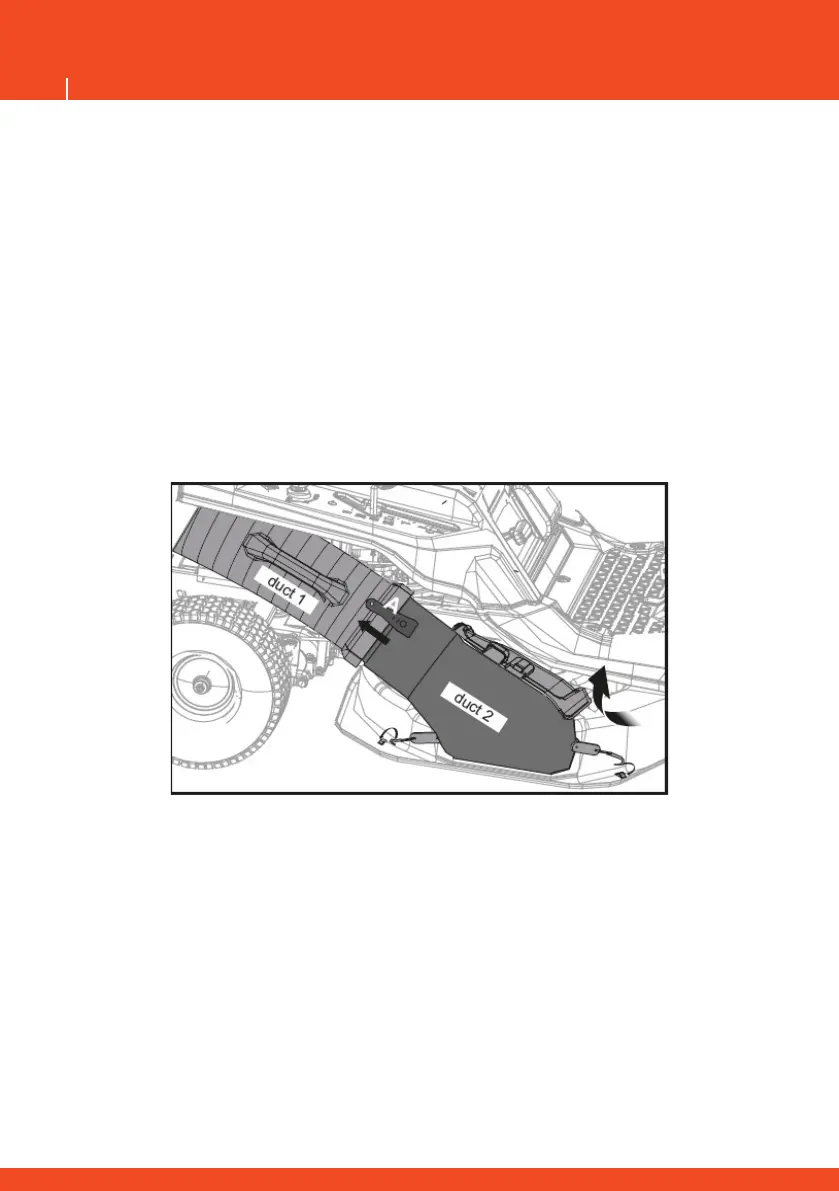

Install the rear duct
1. Adjust cutter (7)to lowest gear.
2. Insert the duct 1 to grass catcher deeply.
3. Hold the side cover switch and ip the side cover up.
4. Place duct 2 in bayonet.
5. Hang the two tension springs on the cutter deck.
6. Connect duct 1 to duct 2 and hang rubber A on side
discharge chute.
7. Release the side discharge cover to secure the duct in position
Notice: The machine must be stopped during installation.
Assembling the side discharge chute
1. Adjust cutter (7)to lowest gear.
2. Hold the side cover switch and ip the side cover up.
3. Place side discharge chute to bayonet.
4. Release the side discharge cover to secure the duct in position
Notice: The machine must be stopped during installation.
