D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
57
Printed in Jan. 2001 PS-MMA0415-E1A
4) Reassembling rocker arm assembly
Reassembling can be done in the reverse order of disassembling and following
things should be heeded
z Check the oil supply hole of rocker arm shaft for any clog and clean
thoroughly.
z Be careful not to occur any swap of position and reverse assembly.

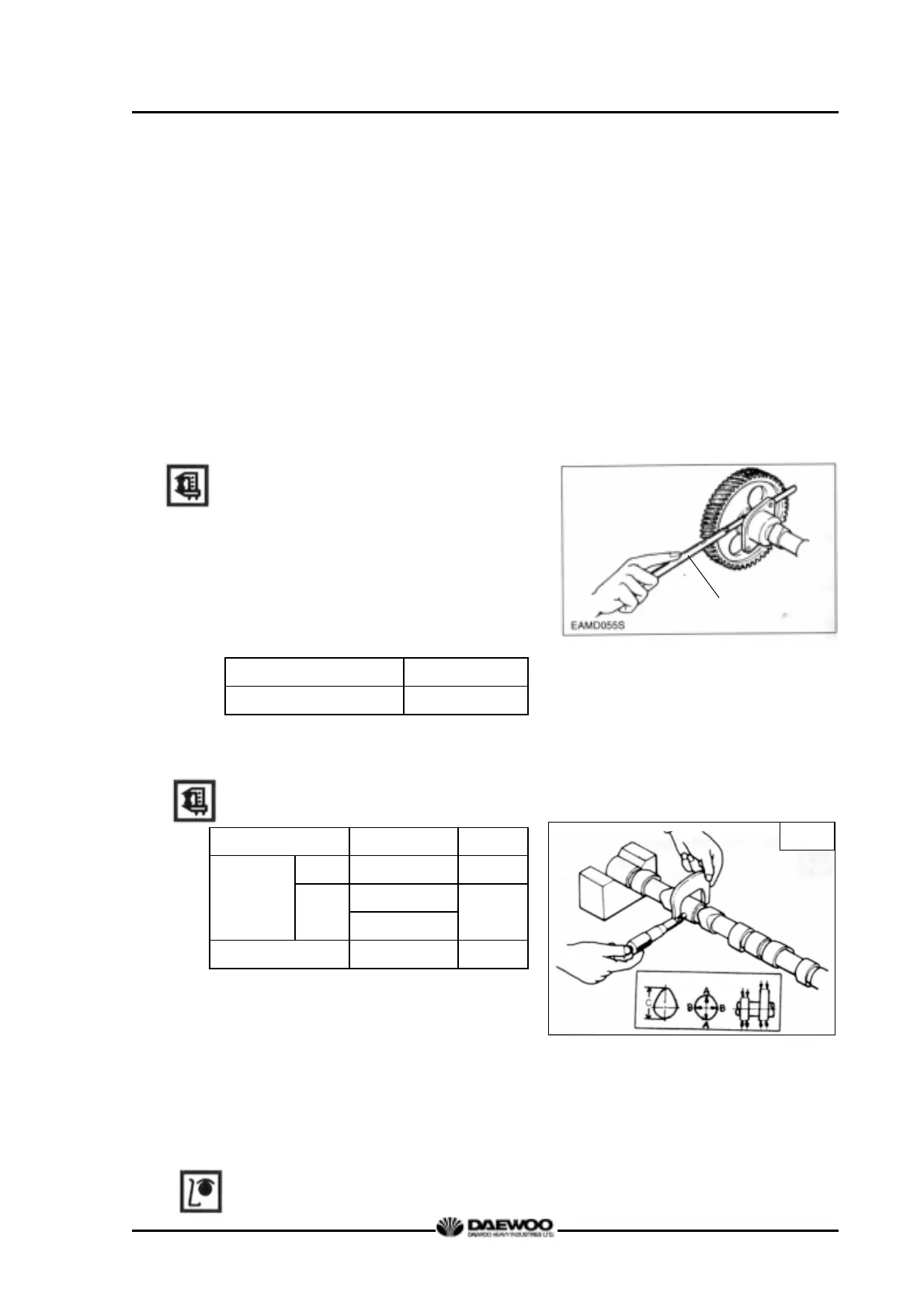

3.2.4. Camshaft
(1) Camshaft end play
z Push the thrust plate toward the cam
gear.
z With a feeler gauge, measure
the
clearance between the thrust plate
and camshaft journal.
z If the end play is excessive, replace
the thrust plate.
Standard Limit
0.28 ∼ 0.43 mm
0.6 mm
(2) Cam
z Cam lobe height
Standard Limit
Intake 49.15 mm 48.85 mm
D1146/TI : 49.32mm
Cam lobe height
(C)
Exhaust
DE08TIS : 49.35mm
49.00 mm
Cam journal diameter (A,B
φ57.86 ∼ φ57.88 mm φ57.52 mm
Use a micrometer to measure the
cam lobe height and journal
diameter.
If the measured number is less than
the specified limit, the camshaft
must replaced.
z Cam surface
Feeler gauge
M1095
