D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
91
Printed in Jan. 2001 PS-MMA0415-E1A

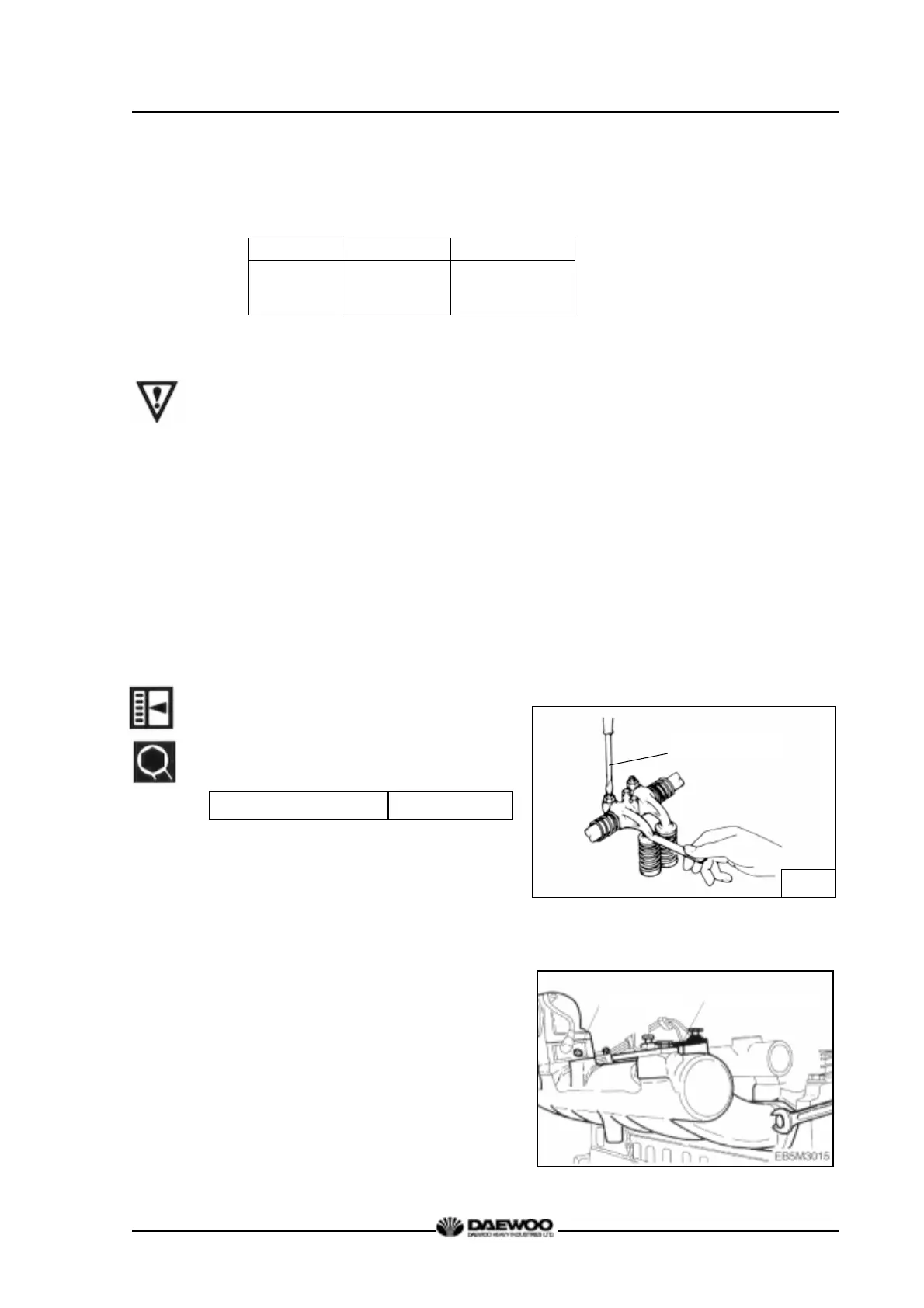

As for the valve clearance, adjust it
when in cold.
Model
Intake Valve Exhaust Valve
D1146
D1146TI
DE08TIS
0.3 mm 0.3 mm
CAUTION :
(1) Crankshaft revolution is done by hands
without using a starting motor.
(2) Turn it to the direction of engine
rotation, but do not use the installing
bolts at the turn.
(3) The cylinder no. and the order of intake
and exhaust can be determined from
the crank shaft pulley.
z Adjust valve clearance with a feeler
gauge and tighten the fixing nuts to
specified torque.
Torque
5.0 kg.m
3.3.29. Intake manifold
z Put in the new gasket between the
cylinder head and manifold, and
assemble the intake manifold by
tightening the assembling bolts.
3.3.30. Exhaust manifold
M1013
Valve clearance adjust
Air heater
Intake manifold
