screw.

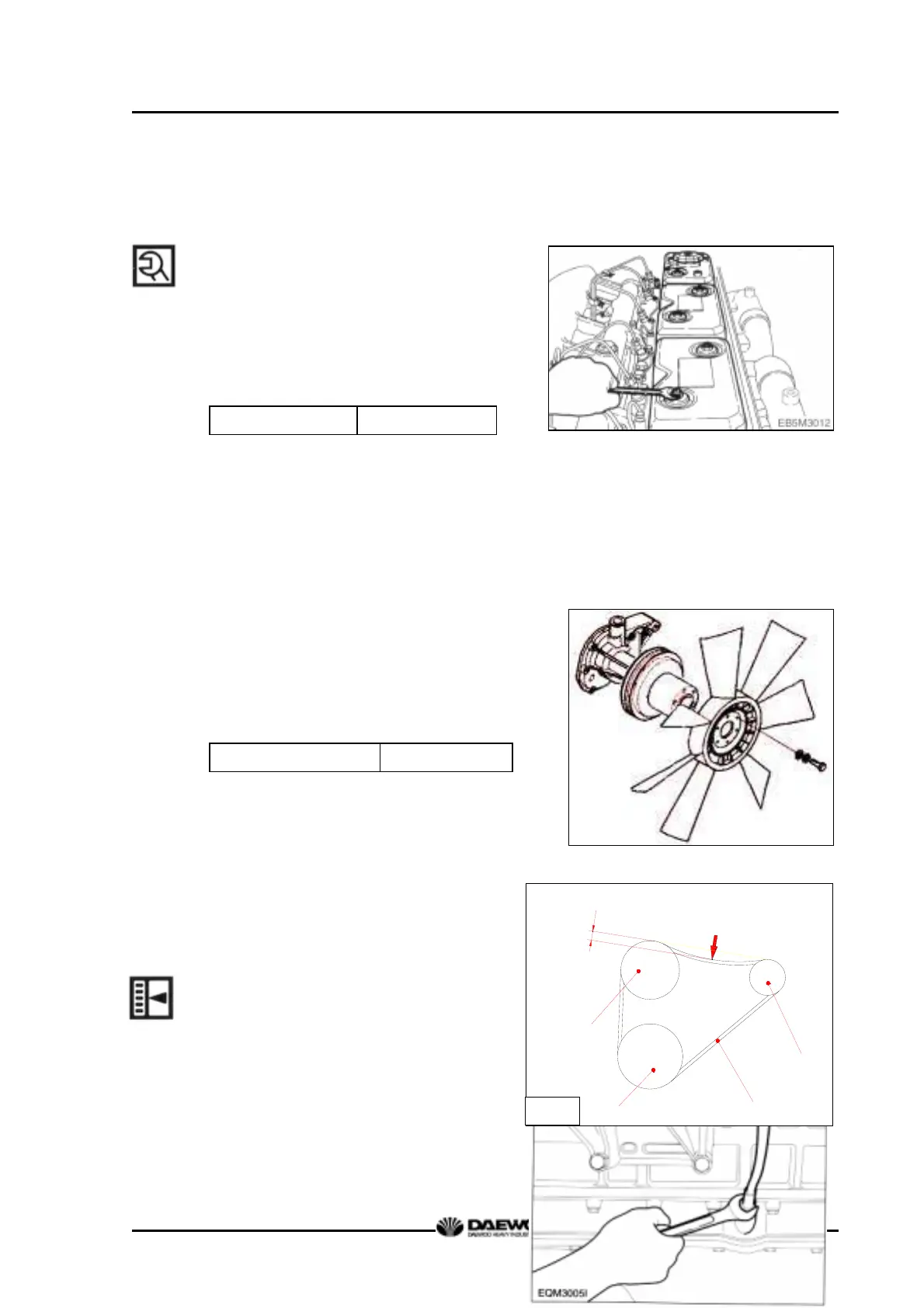

3.3.39. Cylinder head cover
z Attach a new gasket on the cylinder
head cover.
z Assemble the cylinder head cover to the
cylinder head by tightening the cap bolts
for fixing the cylinder head cover.
Torque 1.2 kg.m
z Assemble the breather and breather
hose.
z Fit the oil filler cap on the cylinder head
cover.
3.3.40. Cooling fan
z Install the flange to the water pump
pulley, then assemble the cooling fan
to the pulley by tightening the fixing
bolts.
Torque
4.4 kg.m
3.3.41. Belt
z Install the V-belt on the crank pulley,
alternator pulley and water pump
pulley.
z Adjust the V-belt tension using the
tension adjusting support.
3.3.42. Oil level gauge
z Apply sealant (Locktite #262) to the
G1086
G1105
Press here
10-15mm
Alternator
pulley
V-belt
Crank pulley
Water pump
pulley
