3) 2-spring type
(1) Disassembly
- 109 -
2
A
10
11
12
15
13
14
16
31
30
7
6
4
3
17
1
1. Nozzle holder body
2. Push rod
3. Primary spring
4. Adjusting screw
6. Gasket
7. Cap nut
10. Adjusting shim
11. Secondary spring
12. Spring seat
13. Lift pin
14. Pin
15. Spacer
16. Pin
17. Retaining seat
30. Gasket
31. Eye bolt
A. Nozzle
EQM4029I

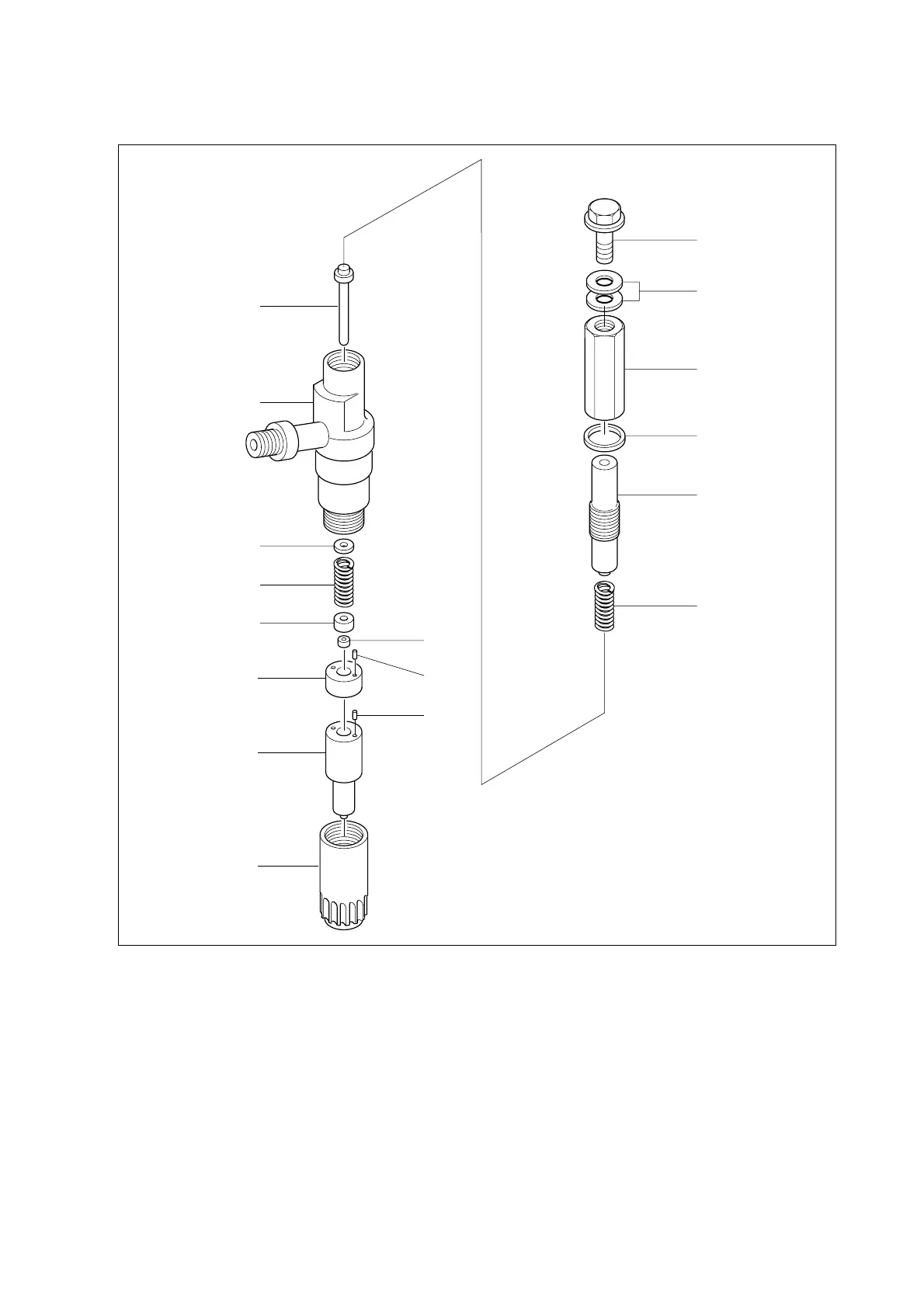

<Fig 4-23> Exploded view of 2-spring
