e. Assemble the pin(14), lift piece(13),
and spacer(15) with the nozzle
holder body. (Figure 4-27)
- 111 -
13
14
15
EQM4033I

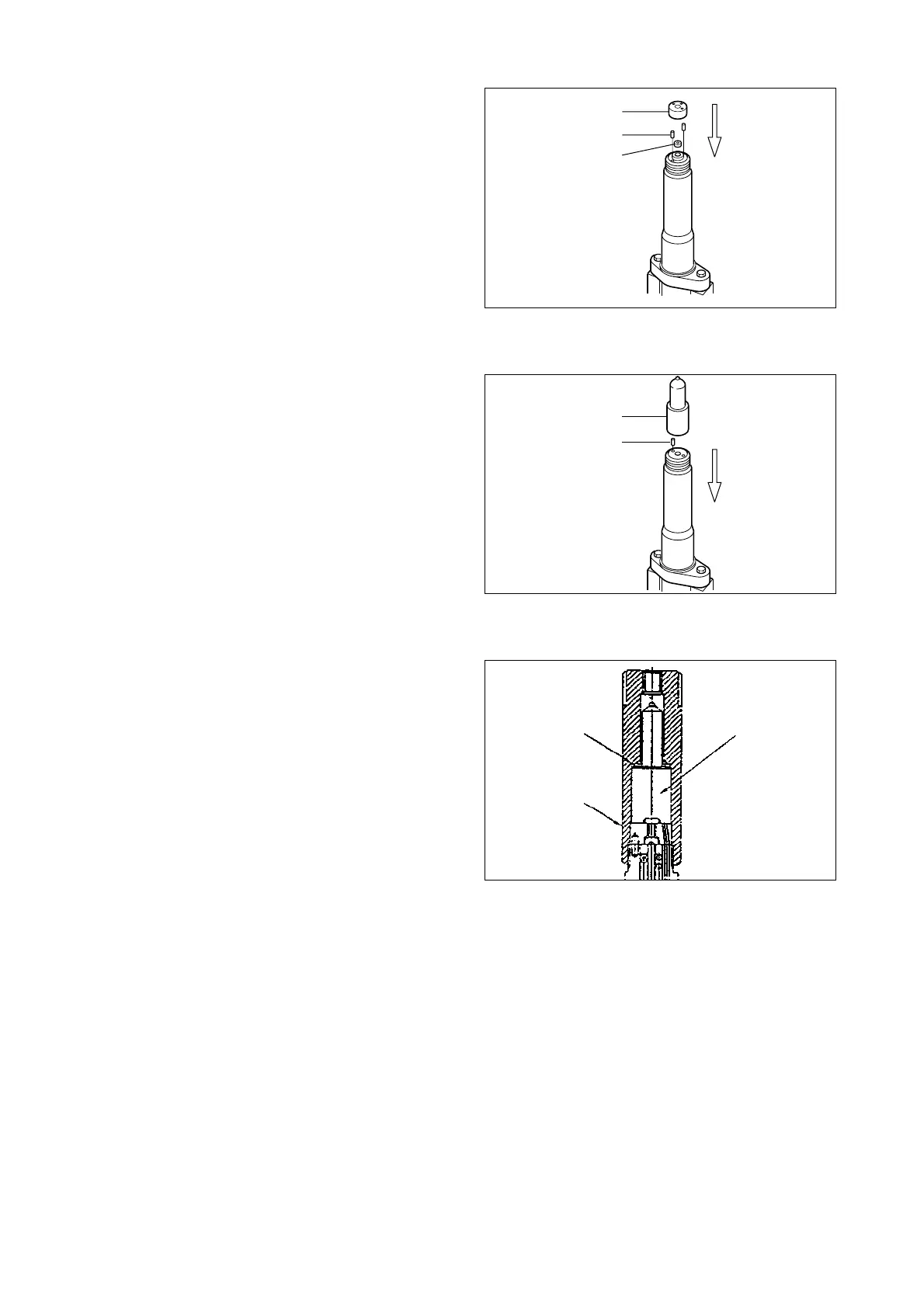

<Figure 4-27> Installing pin, lift piece, and spacer
f. Install the pin(16) and nozzle(A)
onto the spacer.
16
A
EQM4034I
<Figure 4-28> Installing pin and nozzle
g. After installing the gasket(157892-
1500) on the nozzle, use the retain-
ing nut(157892-4000:SW22mm) to
fix the nozzle onto the nozzle hold-
er. (Figures 4-28 and 4-29)
Note: While tightening the retain-
ing nut, keep checking to
see if the lock pin comes all
the way into the nozzle.
Note: Tighten the retaining nut
until it resists hand tighten-
ing, then further tighten it
using a torque wrench.
EQM4035I
<Figure 4-29> Installing gasket and retaining nut
A
Gasket
Retaining
nut
