h. Be sure to follow the specified
torque rating when tightening the
adjusting retaining nut.
Specified torque : 59~78N•m
(6.0~8.0kg•m)
- 112 -
EQM4036I
i. With the cap nut facing upward,
install the nozzle holder on the
plate. (Figure 4-31)
EQM4037I

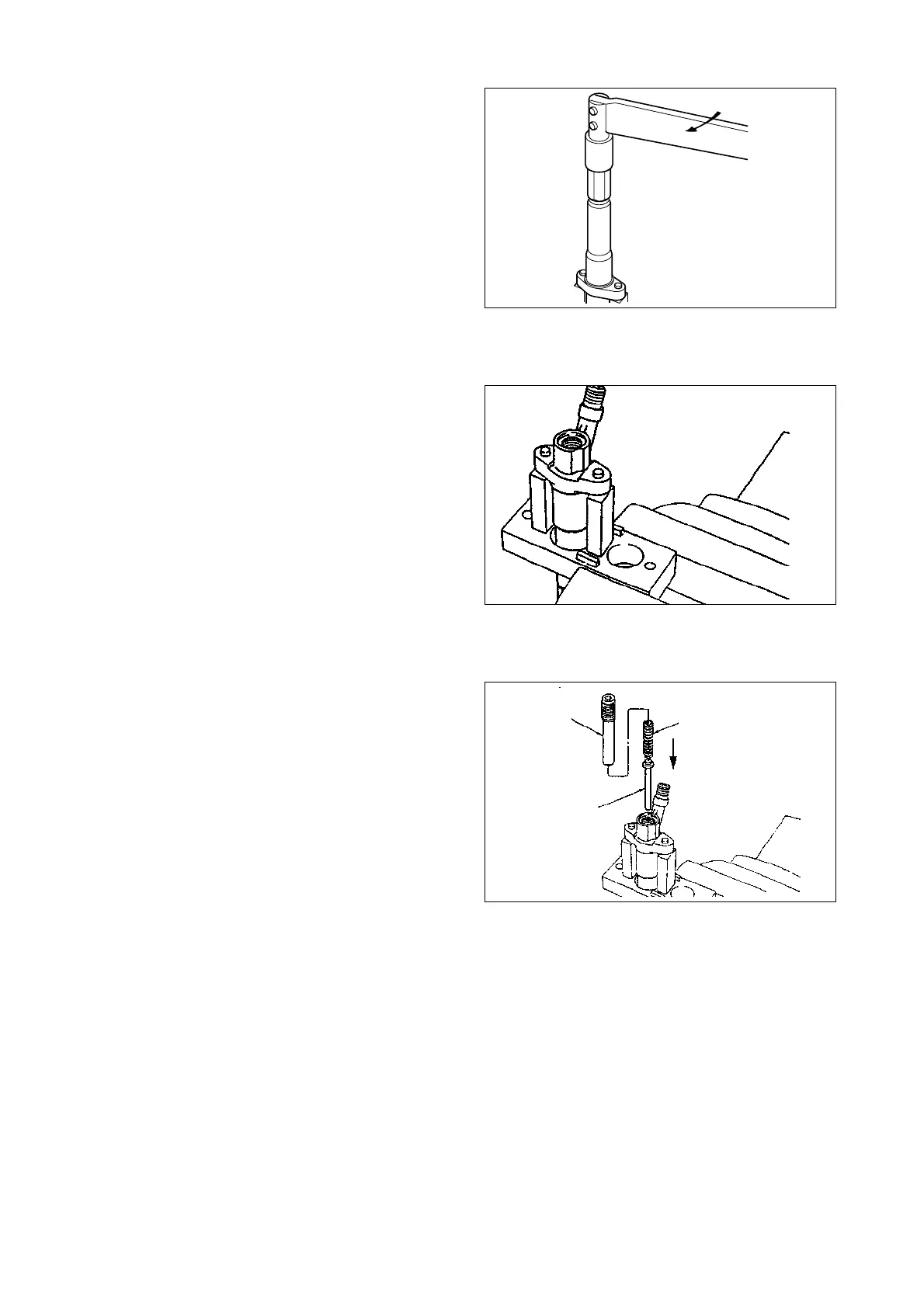

<Figure 4-30> Fixing the nozzle
<Figure 4-31> Installing nozzle holder
j. Assemble the push rod(2), primary
spring(3), and adjusting screw(4)
on the nozzle holder in the order
described. (Figure 4-32)
k. Install the gasket(6) and cap
nut(7) onto the adjusting screw(4).
EQM4038I
<Figure 4-32> Assembling secondary push
rod, primary spring, and adjusting screw
(4)
(2)
(3)
