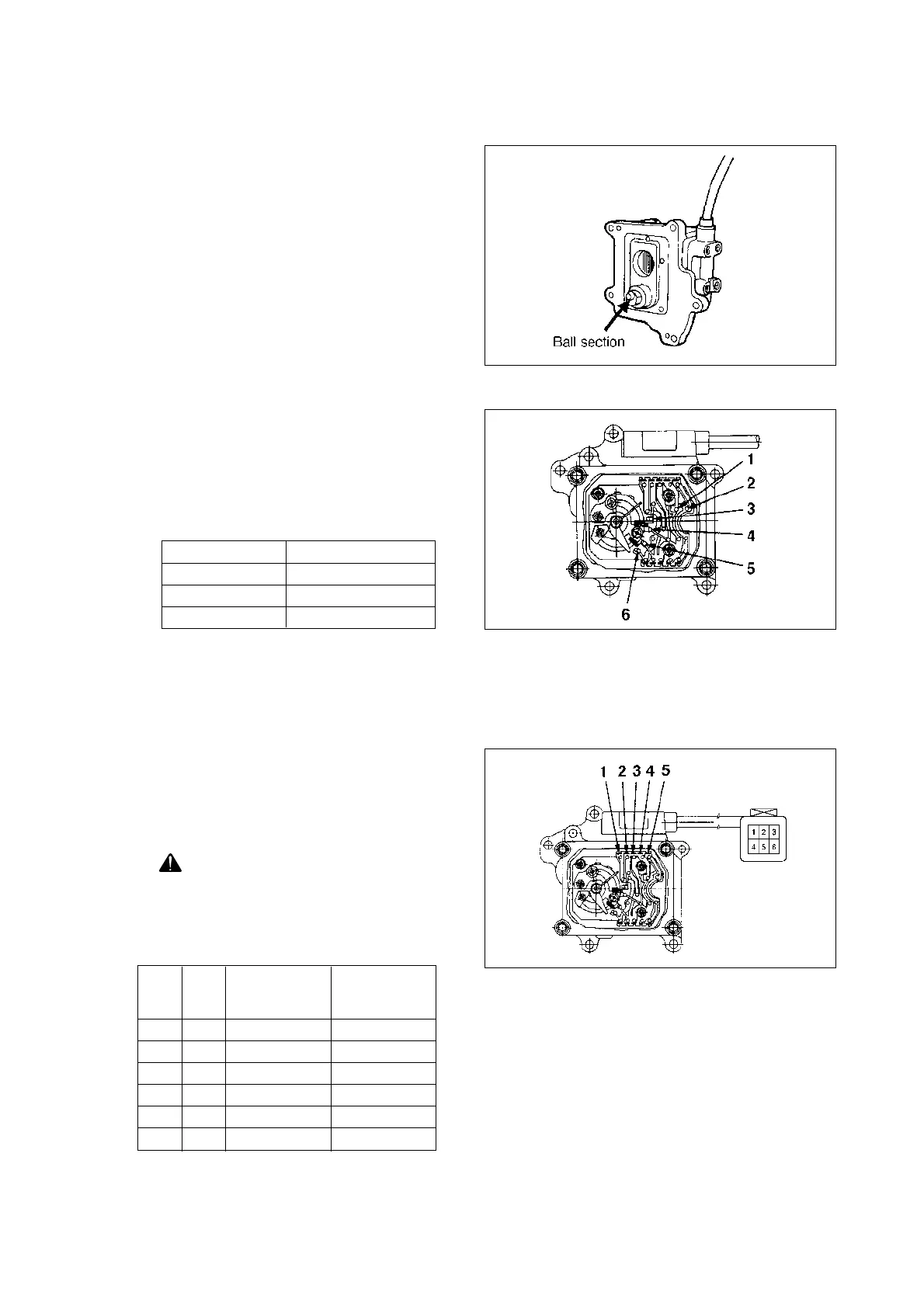

4.3.5. DE12TIS fuel injection pump inspec-
tion & adjustment only
1) Pre-stroke actuator inspection drive
shaft.
Replace the drive shaft if the ball section
is bent,worn or damaged.
- 121 -
EA2M4002
2) Electrical components
(1) Check the resistances between the
prestroke actuator terminals shown in
the figure at left using a circuit tester.
Their resistances are shown below.
Also, check that the resistance
between the terminals and the hous-
ing is
∞.
Terminal Resistance(
Ω)
1~2 2.45~2.95
3~4 5.5~6.1
5~6 5.5~6.1
EA2M4003
(2) Check the conductance between
each of the pre-stroke acuator termi-
nals and connectors using a circuit
tester.
COUTION : The connector ter-
minal layouts and
shapes differ with
maker and engine.
Con. Act.
Harness
term term Remarks
no no
color
1 6 Green Act drive(-)
2 5 Yellow Act drive(+)
3 4 Black/White Shield
4 3 Black P/s sen(GND)
5 2 White P/s sen(MDL)
6 1 Blue P/s sen(OSC)
EA2M4004
