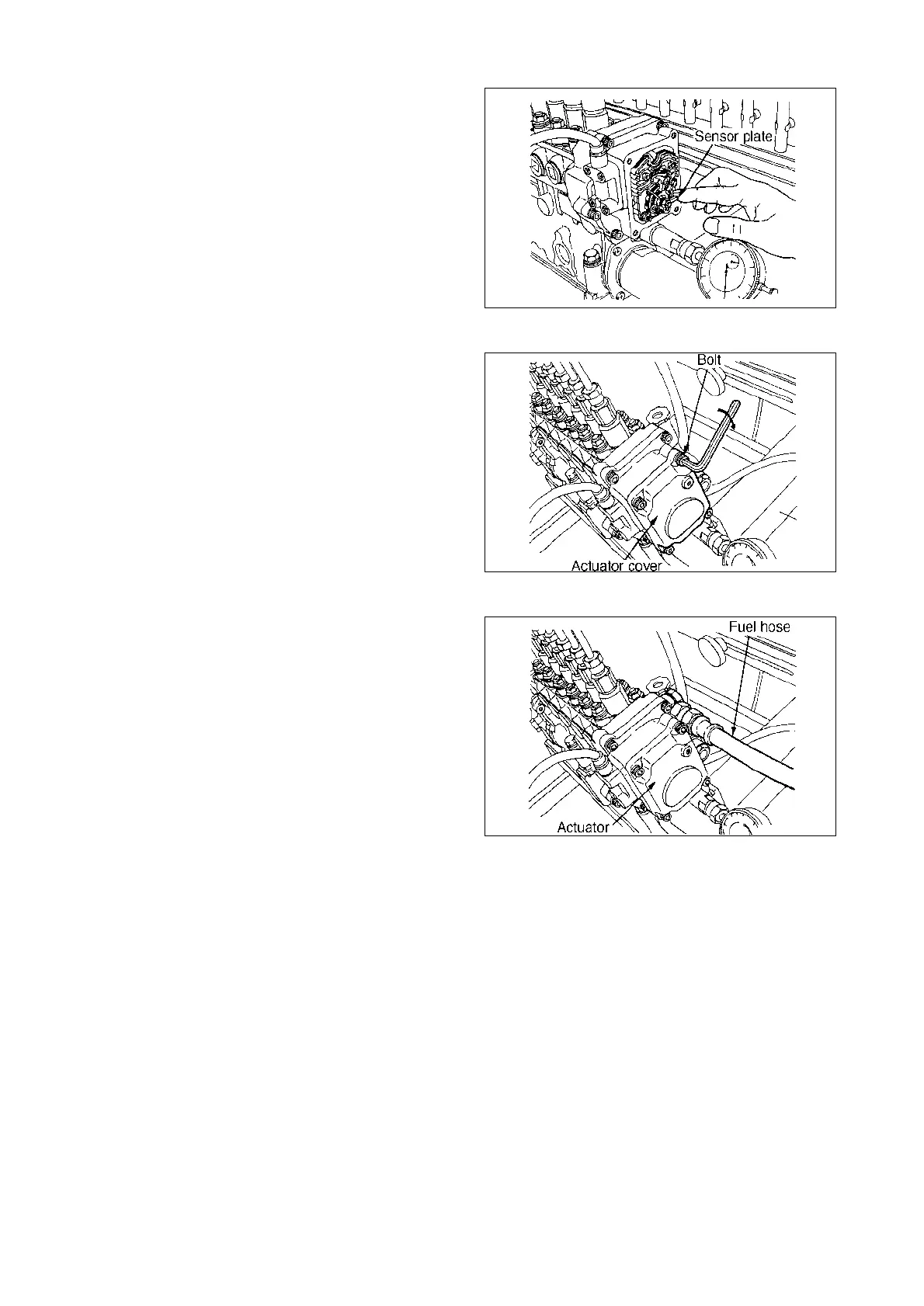

(2) Confirm that the actuator’s pre-stroke
position sensor plate moves smooth-
ly when moved with a finger, as
shown at left.
- 123 -
EA2M4008
(3) Install the actuator cover on the actu-
ator and tighten the bolts to the spec-
ified torque.
Specified torque :
4.9~6.9 N•m(0.5~0.7 kgf•m)
EA2M4009
(4) Connect the fuel hose to the rear of
the actuator.
EA2M4010
