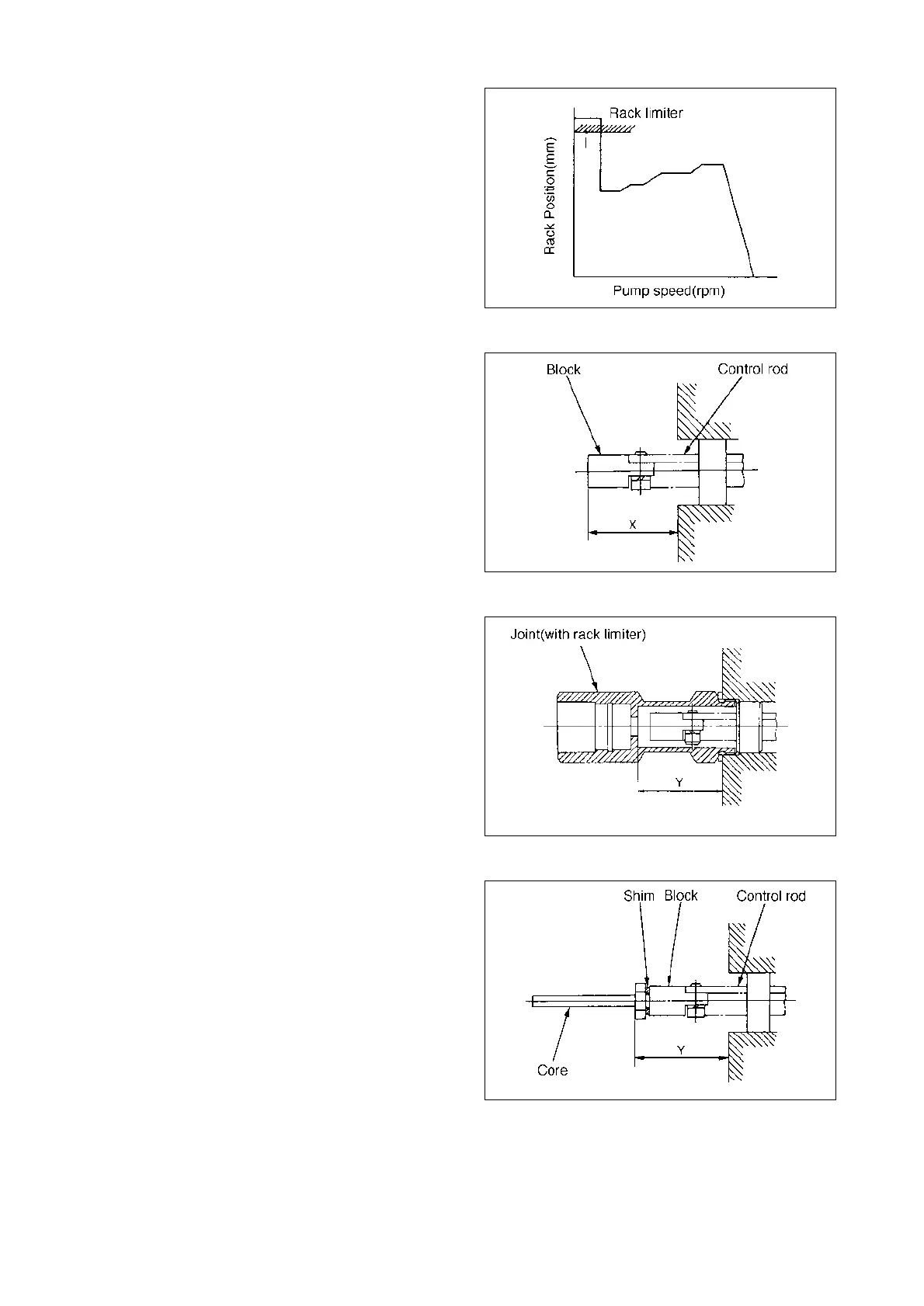

9) Rack sensor adjustment
(1) Rack limiter adjustment
Secure the control rod in the position
where the fuel quantity ‘I’ is obtained.
- 129 -
EA2M4023
(2) Install the block and measure the dis-
tance ‘X’.
EA2M4024
(3) Install the joint and measure the dis-
tance ‘Y’.
EA2M4025
(4) Install the core and adjust the dimen-
sion ‘X’ using shims until it equals ‘Y’.
After adjusting the distance ‘Y’, install
the joint and check the fuel injection
quantity.
Note : If not as specified, add or
remove shims until it is as
specified.
EA2M4026
