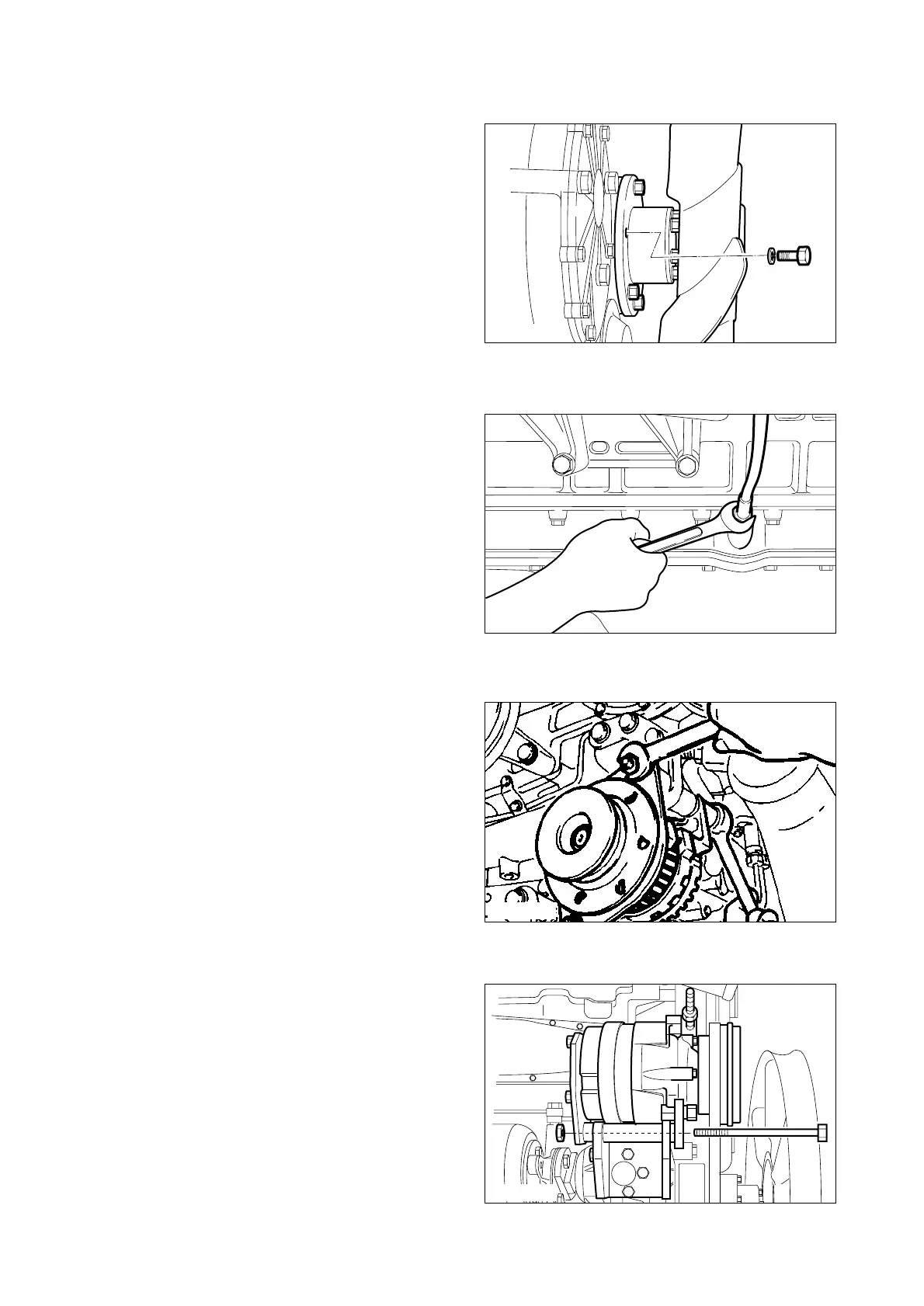

3.1.5. Cooling fan
1) Remove the flange fixing bolts, then take
off the flange and cooling fan.
- 38 -
EQM3004I
3.1.6. Oil level gauge guide tube
1) Loosen the flange nut installed on the
ladder frame to remove the guide tube.
EQM3005I
3.1.7. Alternator
1) Loosen the alternator fixing bolts to dis-
assemble the alternator, then remove
the tension adjusting bolt and bracket.
EQM3006I
3.1.8. Air-conditioning compressor
1) Remove the compressor fixing bolts and
disassemble the A/C compressor.
2) Disassemble the A/C compressor ten-
sion adjusting bolt and alternator fixing
bracket.
3) Disassemble the A/C compressor fixing
bracket.
EQM3007I
