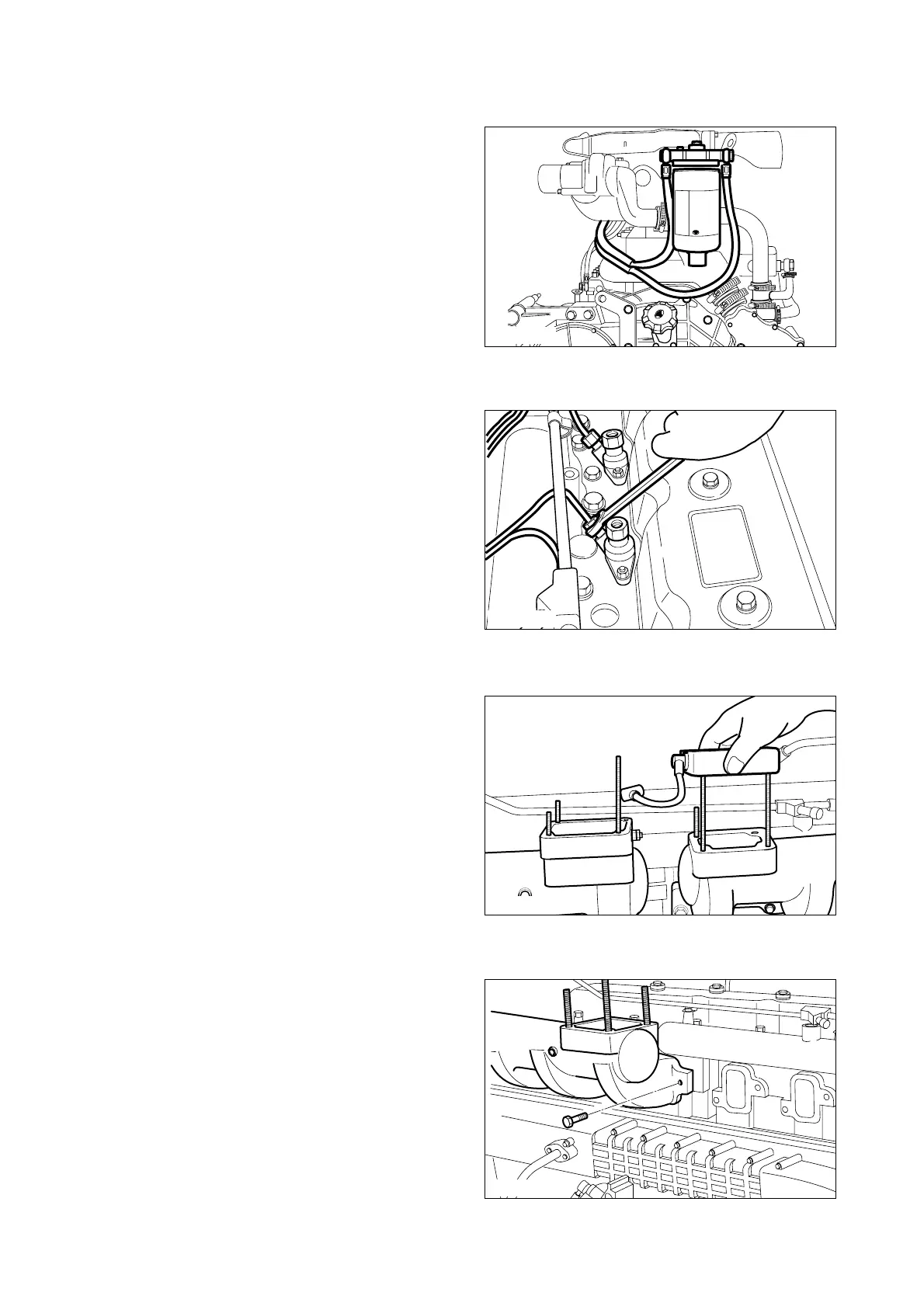

3.1.9. Fuel filter
1) Remove fuel hoses connected to the fuel
injection pump, take off the bracket fixing
bolts, then disassemble the fuel filter.
3.1.10. Breather
1) Loosen the clamp screw to remove the
rubber hose.
- 39 -
EQM3008I
3.1.11. Injection pipe
1) Unscrew the hollow screws to disas-
semble the fuel return pipe.
2) Remove the nuts installed on the fuel
injection pump and nozzles, then disas-
semble the injection pipe.
EQM3009I
3.1.12. Air heater
1) Remove the electrical wiring for the air
heater.
2) Disassemble the intake pipes by loos-
ening the nuts installed thereon.
3) Disassemble the air heater and gasket.
EQM3010I
3.1.13. Intake manifold
1) Remove the air hose connected to the
fuel injection pump.
2) Loosen the intake manifold fixing bolts,
then disassemble the intake manifold.
EQM3011I
