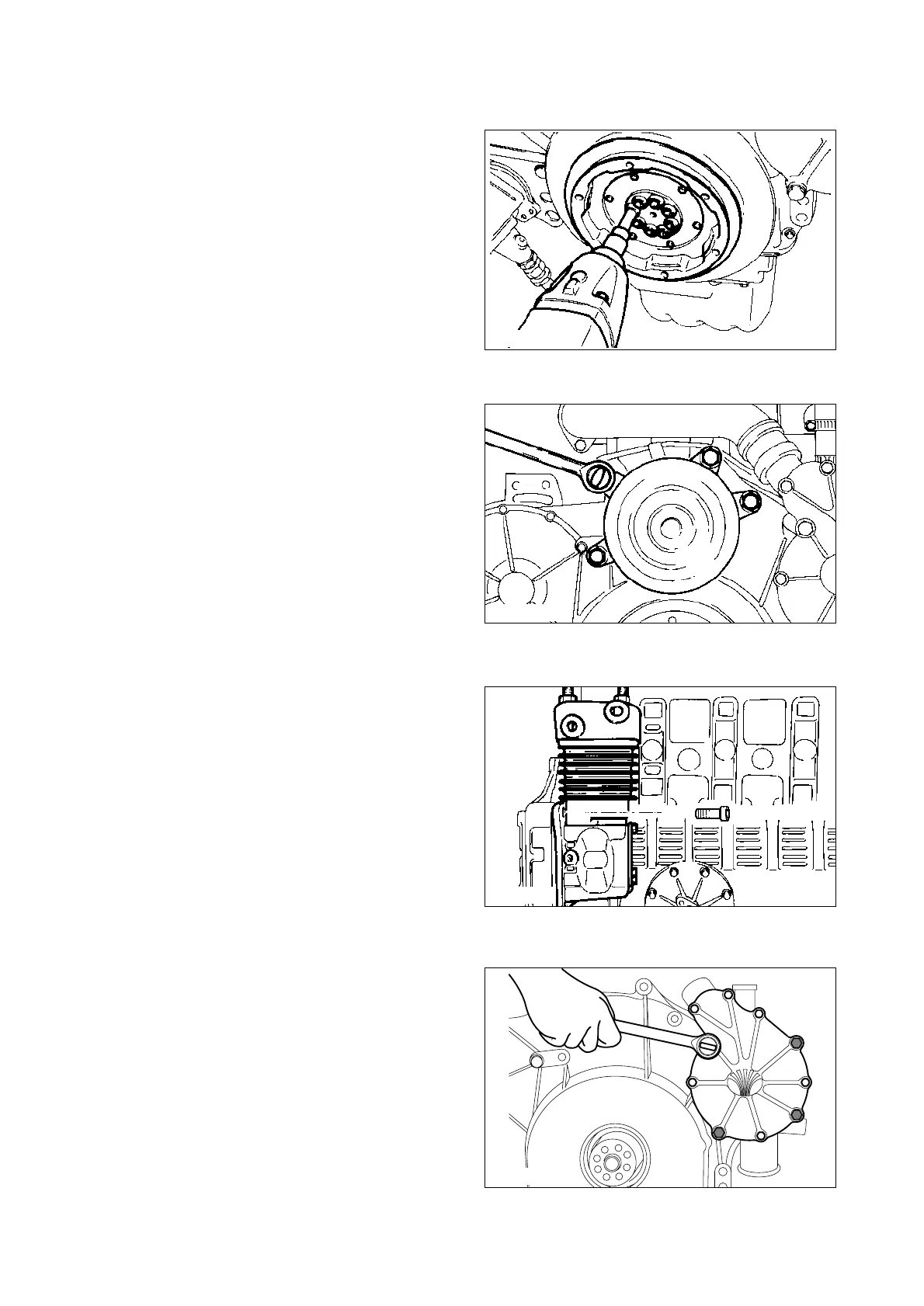

3.3.29. Vibration damper and pulley
1) Install the vibration damper on the
crank shaft pulley.
2) Install the crank shaft pulley assembly
on the crank shaft, then tighten the
bolts and thrust washers.
(bolt tightening torque : 13.4kg
•
m)
- 74 -
EQM3092S
3.3.30. Idle pulley
1) Install the idle pulley onto the timing
gear case cover.
EQM3093S
3.3.31. Air compressor
1) Mount gasket and assemble the air
compressor assembly with care to pre-
vent damage.
2) Using hollow screw, assemble the oil
delivery pipe with the adaptor.
3) Install water hoses to the water pump.
4) Connect the air hoses and pipes to the
air compressor.
EQM3094S
3.3.32. Water pump
1) Mount a new gasket.
2) Install the water pump drive pinion over
the air compressor spline.
3) Connect water pipes, by-pass pipe, and
air compressor cooling water hoses to
the water pump.
4) Connect a water pipe to the expansion
tank.
EQM3095I
