4) Tighten the fixing bolts in a diagonal
sequence to specified torque (4.4kg
•
m).

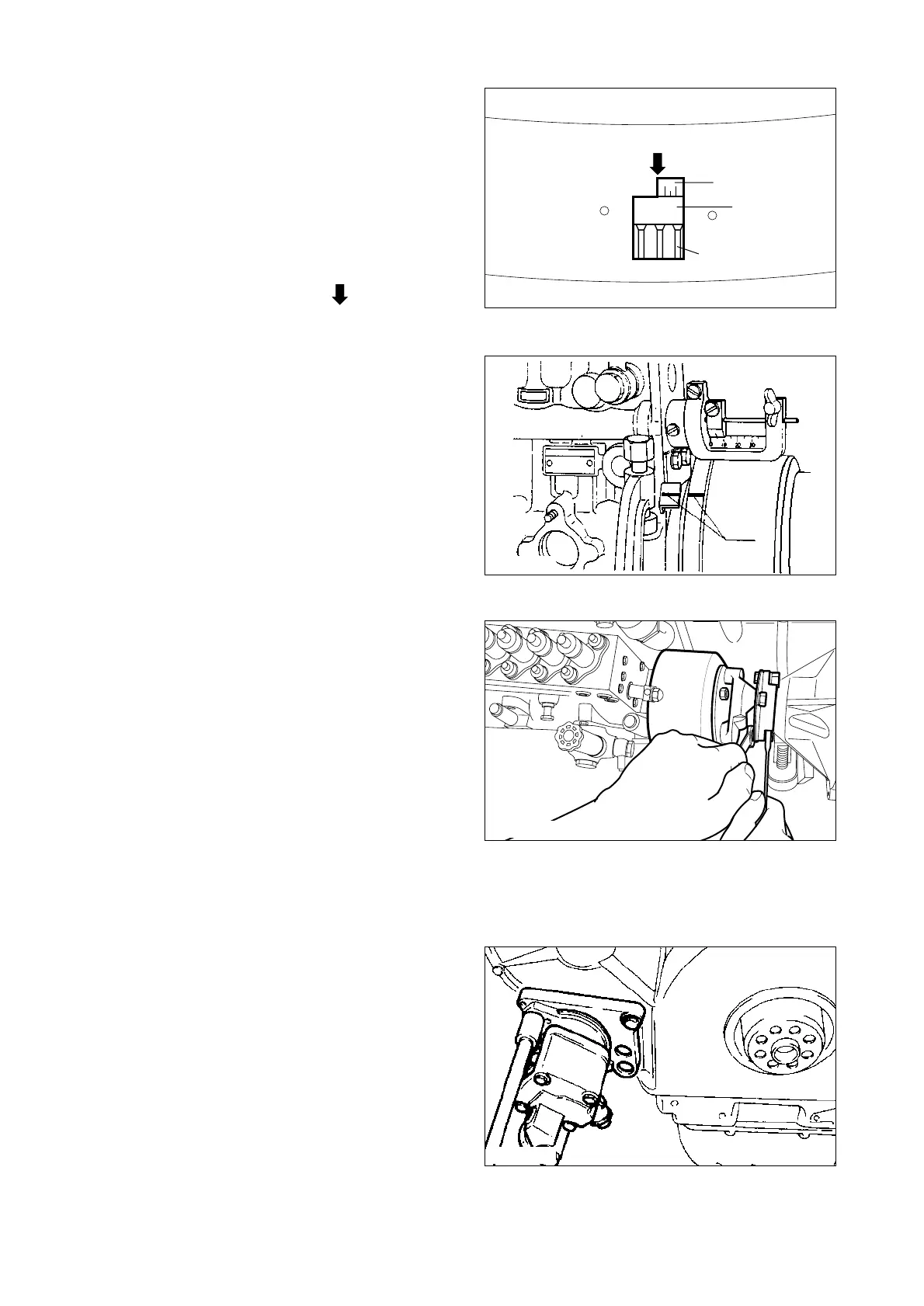

5) Turn the flywaheel until No. 1 piston is
placed in the "OT" position, and then
turn again the flywheel clockwise until,
of notch marks on the flywheel, the
notch mark under the figure corre-
sponding to the injection timing is
aligned with the pointer( ) on the fly-
wheel housing.
6) Turn the timer until the notch mark of
the indicator plate attached to the fuel
injection pump is aligned with the notch
mark of the timer.
- 73 -
EQM3088I
EQM3089S
7) Tighten the coupling fixing bolts and
nuts to specified torque(6.0kg
•
m).
8) Tighten the drive shaft connecting
flange fixing bolts to specified
torque(7.5~8.5kg
•
m).
9) Install the oil delivery pipe and return
pipe.
10) At the same time, install the oil delivery
pipe which feeds oil to the air compressor.
EQM3090I
3.3.28. Power steering pump
1) Mount gasket, align the dowel pin with
the pin hole, then assemble the power
steering pump by using hammer not to
damage the gears .
EQM3091S
Injection timing
notch mark
Flywheel
Flywheel ring gear
