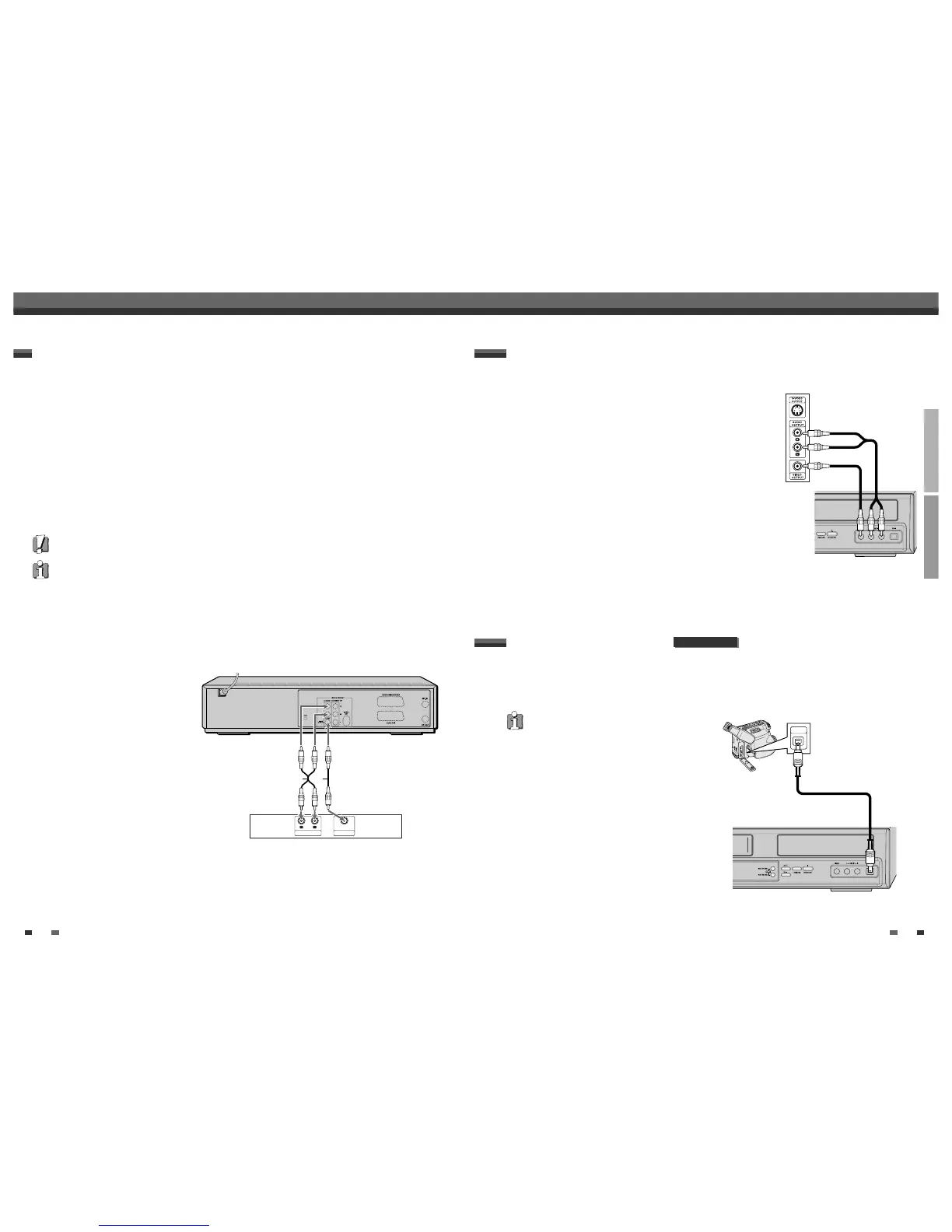

CONNECTIONS SETUP
1514
Connections
To receive audio/video signals from other equipment, connect
the AVF jacks on the DVD Recorder+VCR to the audio/video
out jacks on your external component, using optional
audio/video cables.
Connecting Optional Equipment
Using the front panel DV IN jack, it is possible to connect a DV digital camcorder, video deck or DVD+R/RW
recorder and digitally transfer DV tapes or DVD+R/RW discs to DVD+R/RW.
Use a DV cable (not supplied) to connect the DV In/Out jack of your DV camcorder/video deck to the front panel
DV IN jack of the DVD Recorder+VCR.
Connecting a Digital Camcorder
This jack is for connection to DV equipment only. It is not
compatible with digital satellite tuners or D-VHS video
decks.
DV IN
DV Digital Camcorder
Front of DVD Recorder+VCR
DV
IN/OUT
Front of DVD Recorder+VCR
Jack Panel of Accessory Component
(VCR, Camcorder, etc.)
Connections
Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic ll/Pro Logic
Connect the Left and Right AUDIO OUT jacks on the DVD Recorder+VCR to the left and right audio in jacks on
your amplifier, receiver, or stereo system, using the supplied audio cables (A).
Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped
with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)
1
Connect the DVD Recorder+VCR’s DIGITAL AUDIO OUT jack (COAXIAL X) to the corresponding in jack on
your amplifier. Use an optional digital coaxial audio cable.
2
You will need to activate the DVD Recorder+VCR’s digital output; see ‘AUDIO Settings‘ on page 24.
Digital Multi-Channel Sound?
A digital multi-channel connection provides the best sound quality. For this you need a multi-channel
audio/video receiver that supports one or more of the audio formats supported by your DVD Recorder+VCR
(MPEG 2, Dolby Digital, and DTS). Check the receiver manual and the logos on the front of the receiver.
Connecting an Amplifier/Receiver
Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is
selected.
If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce
a strong, distorted sound or no sound at all.
5.1 channel digital surround sound via the digital connection can only be obtained if your receiver is equipped with
a digital multi-channel decoder.
To see the audio format of the current DVD on the on-screen display, press [AUDIO].
The DVD Recorder+VCR does not perform internal (2- channel) decoding of DTS sound tracks. To enjoy DTS multi-
channel surround, you must connect the DVD Recorder+VCR to a DTS compatible receiver via one of the DVD
Recorder+VCR’s digital audio outputs.
Amplifier (Receiver)
R
L
AUDIO INPUT DIGITAL INPUT
COAXIAL
A X
Rear of DVD Recorder+VCR
DV model only

Other manuals for Daewoo DF-4501P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Daewoo DF-4501P and is the answer not in the manual?

Daewoo DF-4501P Specifications

Operating Environment IconOperating Environment
operating temperature5°C to 35°C
operating humidity5% to 90%
Power IconPower
power requirements200-240V, 50/60Hz
power consumptionMaximum 26W
stand-by power consumption3.7W
Recording Specifications IconRecording Specifications
video recording sampling frequency27MHz
video recording compression formatMPEG 2
audio recording sampling frequency48kHz
audio recording compression formatMPEG1 Layer2
VCR Specifications IconVCR Specifications
tape speed SP23.39 mm/sec
tape speed LP11.70 mm/sec
tape width12.7 mm
DVD Specifications IconDVD Specifications
laser wavelength650 nm
frequency response DVD8 Hz to 22 kHz
frequency response CD8 Hz to 20 kHz
Inputs IconInputs
antenna input impedance75 Ω
video input level1.0 Vp-p 75 Ω
audio input level-8.8 dBm more than 47 k
Outputs IconOutputs
video output level1.0 Vp-p
component video output Y level1.0 Vp-p
audio output digital level0.5 Vp-p 75 Ω
Weight and Dimensions IconWeight and Dimensions
dimensions430 92 312 mm
mass4.96 kg
