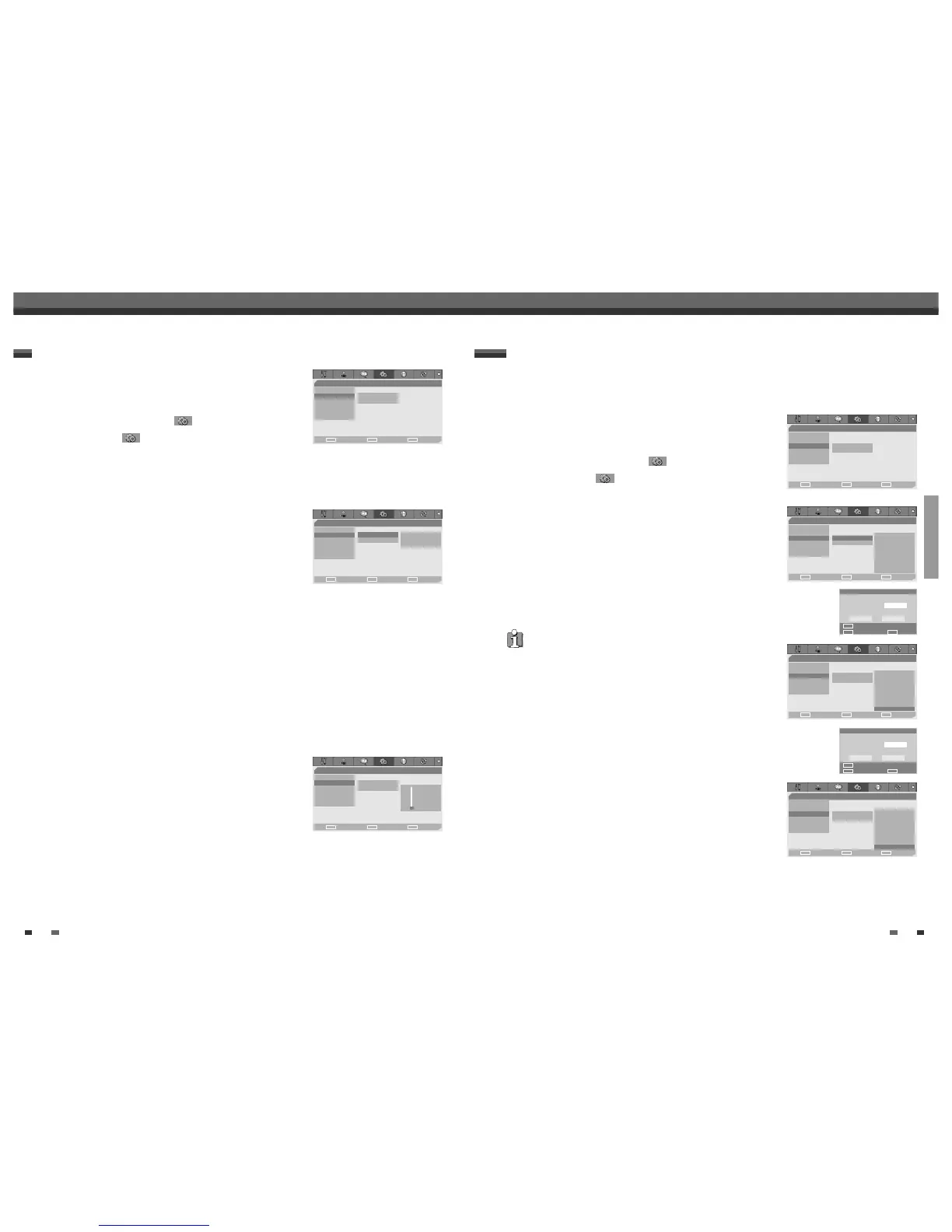

SETUP
2524
Initial Setup Initial Setup
1 Press [SETUP]. The Setup menu appears.
While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup
page.
2 Use [œ/√] to select ‘Preferences ‘.
3 While ‘Preferences ‘ is selected, press [†] to select ‘Audio‘.
4 Press [√]. The ‘Audio‘ submenu is displayed.
Digital Output
1
Use […/†] to select ‘Digital Output‘ while the Audio submenu is
displayed.
2 Press [√] to go to the second level.
3 Use […/†] to select the desired digital output type.
4 Press [ENTER] to confirm your selection.
5 Press [SETUP] to exit the menu.
Off
No signal will be output from the Digital Audio Out jacks.
Bitstream
Select when connected to a Dolby Digital or DTS decoder (or an amplifier or other equipment with a Dolby
Digital or DTS decoder).
LPCM
Select when connected to a digital amplifier. The DVD Recorder+VCR's digital audio signal will be output in the
PCM format when you play a DVD recorded with a Dolby Digital (only for DVD) or MPEG soundtrack. If the DVD
is recorded with a DTS sound track then no sound will be heard.
Dynamic Range
While watching DVD movies, you may wish to compress the dynamic range
of the audio output (the difference between the loudest and quietest
passages). This allows you to listen to a movie at a lower volume without
losing clarity of sound.
Set 'Dynamic Range'to anymode you want for this effect.
Follow the same procedure as ‘Digital Output‘ to set the Dynamic Range.
‘Preferences’ / Audio Settings
Preferences
Video
•Audio Digital Output BItstream
Parental Ctrl Dynamic Range
Auto Settings
VCR
Modulator Out
Choose OK Exit
ENTER SETUP
œ √
…
†
Preferences
Video
Audio Digital Output
Parental Ctrl Dynamic Range – – FULL
Auto Settings – –
VCR – – 1/2
Modulator Out – –
– – OFF
Choose OK Exit
ENTER SETUP
œ √
…
†
Preferences
Video
Audio • Digital Output Off
Parental Ctrl Dynamic Range Bitstream
Auto Settings LPCM
VCR
Modulator Out
Choose OK Exit
ENTER SETUP
œ √
…
†
Set Parental Level
The Parental Controls feature allows you to prevent DVDs from being played based on their ratings or to have
certain discs played with alternative scenes. You can set the parental level from ‘ADULT’ to ‘KID SAFE’.
1 Press [SETUP]. The Setup menu appears.
While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup
page.
2 Use [œ/√] to select ‘Preferences ‘.
3 While ‘Preferences ‘ is selected, press [†] to select ‘Parental
Ctrl‘.
4 Press [√]. The ‘Parental‘ submenu is displayed.
5 The Password Input dialog will appear. Enter a 4-digit password using the [0-9]
buttons. If this is the first time you have entered a password, you will be prompted to
enter the password again to confirm it.
After setting the password, press [ENTER].
6 Enter your new password.
7 Use […/†] to select the desired parental level and press [ENTER] to
confirm.
Adult to Kid Safe : Some discs contain scenes not suitable for children.
If you set a rating for the DVD Recorder+VCR, all scenes with the same
rating or lower will be played. Higher rated scenes will not be played
unless an alternative scene is available on the disc. The alternative
must have the same rating or a lower one. If no suitable alternative is
found, playback will stop. You must enter the 4-digit password or change the rating level in order to play
the disc.
8 Press [ENTER] to confirm your rating selection, then press [SETUP] to exit the menu.
The initial password is ‘3308‘. You must enter this password before you can
change the Parental Level.
‘Preferences’ / Parental Controls
Preferences
Video
Audio
•Parental Ctrl Parental
Auto Settings Password
VCR
Modulator Out
Choose OK Exit
ENTER SETUP
œ √
…
†
Preferences
Video
Audio
Parental Ctrl •Parental
Auto Settings Password
VCR
Modulator Out
Choose OK Exit
ENTER SETUP
œ √
…
†
1 Kid Safe
2 G
3 PG
4 PG-13
5 PGR
6 R
7 NC-17
8 Adult
Preferences
Video
Audio
Parental Ctrl Parental
Auto Settings Password
VCR
Modulator Out
Choose OK Exit
ENTER SETUP
œ √
…
†
Input Password
Password
Input digits
Select OK
OK Cancel
ENTER
0-9
œ √
…
†
1 Kid Safe
2 G
3 PG
4 PG-13
5 PGR
6 R
7 NC-17
•8 Adult
Preferences
Video
Audio
Parental Ctrl Parental
Auto Settings Password
VCR
Modulator Out
Choose OK Exit
ENTER SETUP
œ √
…
†
1 Kid Safe
2 G
3 PG
4 PG-13
5 PGR
6 R
7 NC-17
•8 Adult
Input Password
New Password
Input digits
Select OK
OK Cancel
ENTER
0-9
œ √
…
†

Daewoo DF-4501P Specifications

Operating Environment

operating temperature	5°C to 35°C
operating humidity	5% to 90%

Power

power requirements	200-240V, 50/60Hz
power consumption	Maximum 26W
stand-by power consumption	3.7W

Recording Specifications

video recording sampling frequency	27MHz
video recording compression format	MPEG 2
audio recording sampling frequency	48kHz
audio recording compression format	MPEG1 Layer2

VCR Specifications

tape speed SP	23.39 mm/sec
tape speed LP	11.70 mm/sec
tape width	12.7 mm

DVD Specifications

laser wavelength	650 nm
frequency response DVD	8 Hz to 22 kHz
frequency response CD	8 Hz to 20 kHz

Inputs

antenna input impedance	75 Ω
video input level	1.0 Vp-p 75 Ω
audio input level	-8.8 dBm more than 47 k

Outputs

video output level	1.0 Vp-p
component video output Y level	1.0 Vp-p
audio output digital level	0.5 Vp-p 75 Ω

Weight and Dimensions

dimensions	430 92 312 mm
mass	4.96 kg
