Daewoo DHC-X100 Series User Manual

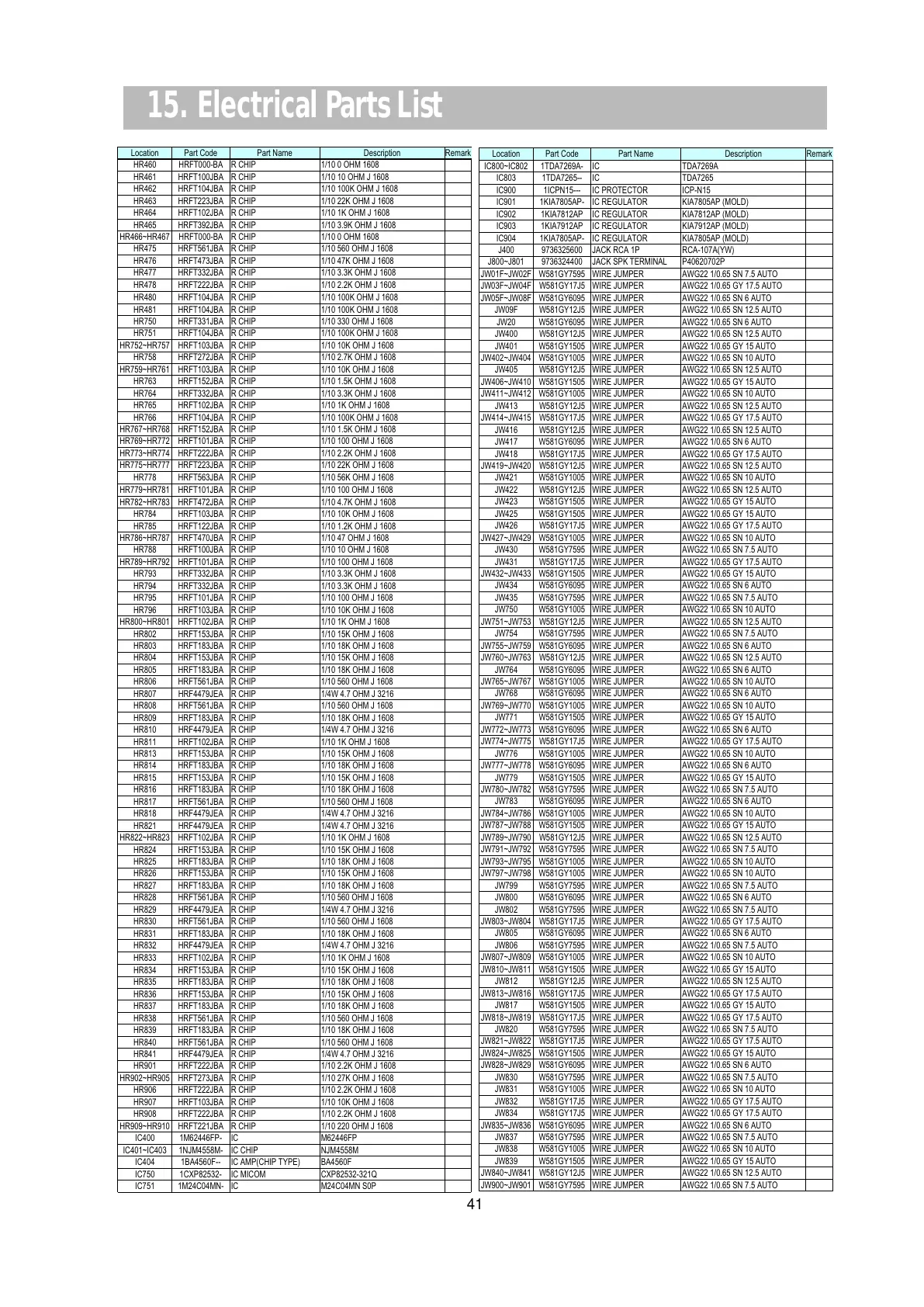

15. Electrical Parts List
41
Location Part Code Part Name Description Remark
HR460 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR461 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR462 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR463 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR464 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR465 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608
HR466~HR467 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR475 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR476 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR477 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR478 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR480 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR481 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR750 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR751 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR752~HR757 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR758 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
HR759~HR761 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR763 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR764 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR765 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR766 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR767~HR768 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR769~HR772 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR773~HR774 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR775~HR777 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR778 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR779~HR781 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR782~HR783 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR784 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR785 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
HR786~HR787 HRFT470JBA R CHIP 1/10 47 OHM J 1608
HR788 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR789~HR792 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR793 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR794 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR795 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR796 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR800~HR801 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR802 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR803 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR804 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR805 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR806 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR807 HRF4479JEA R CHIP 1/4W 4.7 OHM J 3216
HR808 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR809 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR810 HRF4479JEA R CHIP 1/4W 4.7 OHM J 3216
HR811 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR813 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR814 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR815 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR816 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR817 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR818 HRF4479JEA R CHIP 1/4W 4.7 OHM J 3216
HR821 HRF4479JEA R CHIP 1/4W 4.7 OHM J 3216
HR822~HR823 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR824 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR825 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR826 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR827 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR828 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR829 HRF4479JEA R CHIP 1/4W 4.7 OHM J 3216
HR830 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR831 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR832 HRF4479JEA R CHIP 1/4W 4.7 OHM J 3216
HR833 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR834 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR835 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR836 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR837 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR838 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR839 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR840 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR841 HRF4479JEA R CHIP 1/4W 4.7 OHM J 3216
HR901 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR902~HR905 HRFT273JBA R CHIP 1/10 27K OHM J 1608
HR906 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR907 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR908 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR909~HR910 HRFT221JBA R CHIP 1/10 220 OHM J 1608
IC400 1M62446FP- IC M62446FP
IC401~IC403 1NJM4558M- IC CHIP NJM4558M
IC404 1BA4560F-- IC AMP(CHIP TYPE) BA4560F
IC750 1CXP82532- IC MICOM CXP82532-321Q
IC751 1M24C04MN- IC M24C04MN S0P
Location Part Code Part Name Description Remark
IC800~IC802 1TDA7269A- IC TDA7269A
IC803 1TDA7265-- IC TDA7265
IC900 1ICPN15--- IC PROTECTOR ICP-N15
IC901 1KIA7805AP- IC REGULATOR KIA7805AP (MOLD)
IC902 1KIA7812AP IC REGULATOR KIA7812AP (MOLD)
IC903 1KIA7912AP IC REGULATOR KIA7912AP (MOLD)
IC904 1KIA7805AP- IC REGULATOR KIA7805AP (MOLD)
J400 9736325600 JACK RCA 1P RCA-107A(YW)
J800~J801 9736324400 JACK SPK TERMINAL P40620702P
JW01F~JW02F W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW03F~JW04F W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW05F~JW08F W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW09F W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW20 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW400 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW401 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW402~JW404 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW405 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW406~JW410 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW411~JW412 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW413 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW414~JW415 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW416 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW417 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW418 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW419~JW420 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW421 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW422 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW423 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW425 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW426 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW427~JW429 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW430 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW431 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW432~JW433 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW434 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW435 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW750 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW751~JW753 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW754 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW755~JW759 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW760~JW763 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW764 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW765~JW767 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW768 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW769~JW770 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW771 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW772~JW773 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW774~JW775 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW776 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW777~JW778 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW779 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW780~JW782 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW783 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW784~JW786 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW787~JW788 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW789~JW790 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW791~JW792 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW793~JW795 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW797~JW798 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW799 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW800 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW802 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW803~JW804 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW805 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW806 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW807~JW809 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW810~JW811 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW812 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW813~JW816 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW817 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW818~JW819 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW820 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW821~JW822 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW824~JW825 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW828~JW829 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW830 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW831 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW832 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW834 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW835~JW836 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW837 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW838 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW839 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW840~JW841 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW900~JW901 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
