Daewoo DHC-X100 Series User Manual

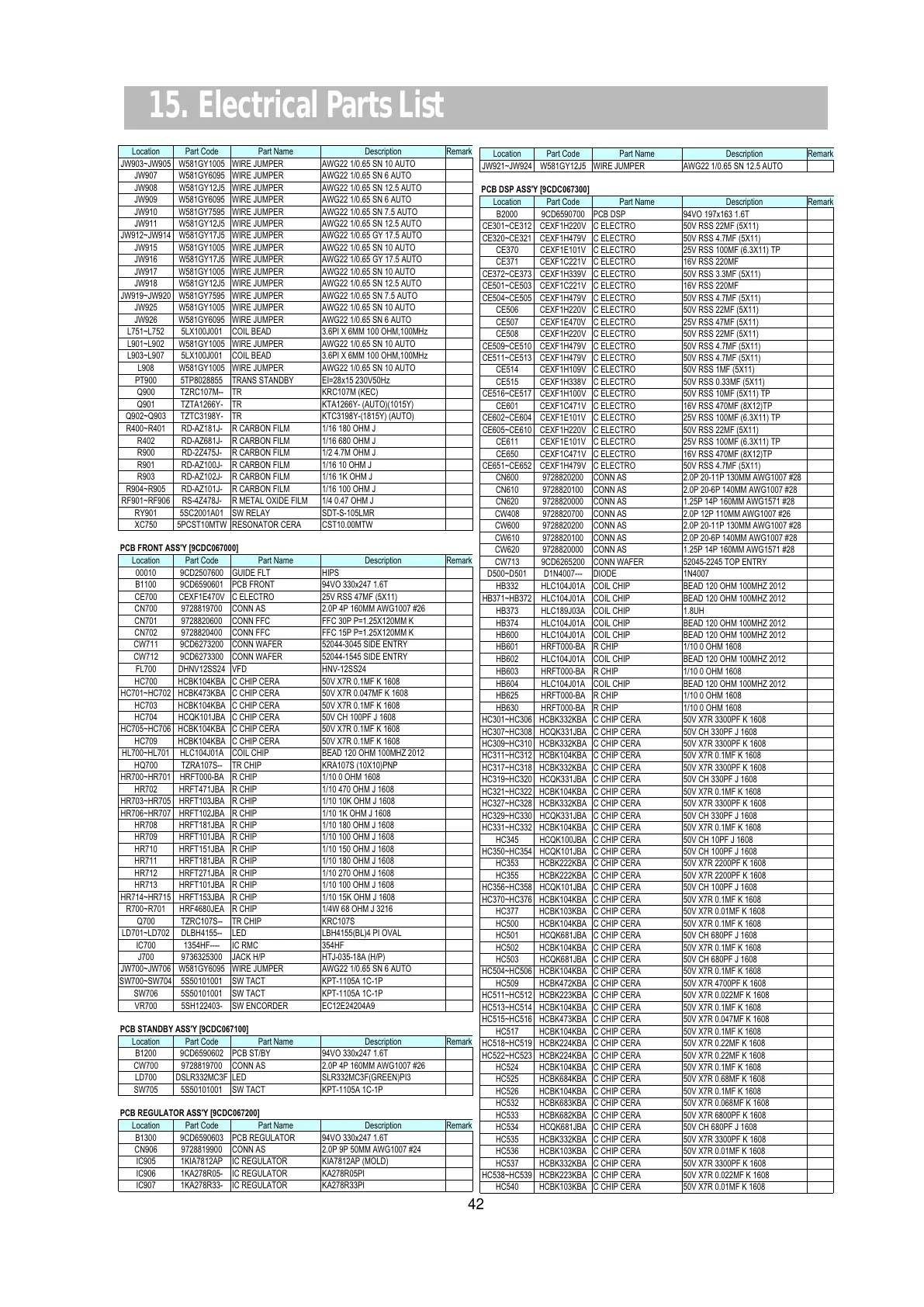

15. Electrical Parts List
42
Location Part Code Part Name Description Remark
JW903~JW905 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW907 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW908 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW909 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW910 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW911 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW912~JW914 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW915 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW916 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW917 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW918 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW919~JW920 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW925 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW926 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
L751~L752 5LX100J001 COIL BEAD 3.6PI X 6MM 100 OHM,100MHz
L901~L902 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
L903~L907 5LX100J001 COIL BEAD 3.6PI X 6MM 100 OHM,100MHz
L908 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
PT900 5TP8028855 TRANS STANDBY EI=28x15 230V50Hz
Q900 TZRC107M-- TR KRC107M (KEC)
Q901 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q902~Q903 TZTC3198Y- TR KTC3198Y-(1815Y) (AUTO)
R400~R401 RD-AZ181J- R CARBON FILM 1/16 180 OHM J
R402 RD-AZ681J- R CARBON FILM 1/16 680 OHM J
R900 RD-2Z475J- R CARBON FILM 1/2 4.7M OHM J
R901 RD-AZ100J- R CARBON FILM 1/16 10 OHM J
R903 RD-AZ102J- R CARBON FILM 1/16 1K OHM J
R904~R905 RD-AZ101J- R CARBON FILM 1/16 100 OHM J
RF901~RF906 RS-4Z478J- R METAL OXIDE FILM 1/4 0.47 OHM J
RY901 5SC2001A01 SW RELAY SDT-S-105LMR
XC750 5PCST10MTW RESONATOR CERA CST10.00MTW
Location Part Code Part Name Description Remark
00010 9CD2507600 GUIDE FLT HIPS
B1100 9CD6590601 PCB FRONT 94VO 330x247 1.6T
CE700 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CN700 9728819700 CONN AS 2.0P 4P 160MM AWG1007 #26
CN701 9728820600 CONN FFC FFC 30P P=1.25X120MM K
CN702 9728820400 CONN FFC FFC 15P P=1.25X120MM K
CW711 9CD6273200 CONN WAFER 52044-3045 SIDE ENTRY
CW712 9CD6273300 CONN WAFER 52044-1545 SIDE ENTRY
FL700 DHNV12SS24 VFD HNV-12SS24
HC700 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC701~HC702 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
HC703 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC704 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC705~HC706 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC709 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HL700~HL701 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
HQ700 TZRA107S-- TR CHIP KRA107S (10X10)PNP
HR700~HR701 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR702 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR703~HR705 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR706~HR707 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR708 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR709 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR710 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR711 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR712 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR713 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR714~HR715 HRFT153JBA R CHIP 1/10 15K OHM J 1608
R700~R701 HRF4680JEA R CHIP 1/4W 68 OHM J 3216
Q700 TZRC107S-- TR CHIP KRC107S
LD701~LD702 DLBH4155-- LED LBH4155(BL)4 PI OVAL
IC700 1354HF---- IC RMC 354HF
J700 9736325300 JACK H/P HTJ-035-18A (H/P)
JW700~JW706 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
SW700~SW704 5S50101001 SW TACT KPT-1105A 1C-1P
SW706 5S50101001 SW TACT KPT-1105A 1C-1P
VR700 5SH122403- SW ENCORDER EC12E24204A9
Location Part Code Part Name Description Remark
B1200 9CD6590602 PCB ST/BY 94VO 330x247 1.6T
CW700 9728819700 CONN AS 2.0P 4P 160MM AWG1007 #26
LD700 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
SW705 5S50101001 SW TACT KPT-1105A 1C-1P
Location Part Code Part Name Description Remark
B1300 9CD6590603 PCB REGULATOR 94VO 330x247 1.6T
CN906 9728819900 CONN AS 2.0P 9P 50MM AWG1007 #24
IC905 1KIA7812AP IC REGULATOR KIA7812AP (MOLD)
IC906 1KA278R05- IC REGULATOR KA278R05PI
IC907 1KA278R33- IC REGULATOR KA278R33PI
PCB FRONT ASS'Y [9CDC067000]
PCB STANDBY ASS'Y [9CDC067100]
PCB REGULATOR ASS'Y [9CDC067200]
Location Part Code Part Name Description Remark
JW921~JW924 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
Location Part Code Part Name Description Remark
B2000 9CD6590700 PCB DSP 94VO 197x163 1.6T
CE301~CE312 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11)
CE320~CE321 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE370 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE371 CEXF1C221V C ELECTRO 16V RSS 220MF
CE372~CE373 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11)
CE501~CE503 CEXF1C221V C ELECTRO 16V RSS 220MF
CE504~CE505 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE506 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11)
CE507 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11)
CE508 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11)
CE509~CE510 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE511~CE513 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE514 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11)
CE515 CEXF1H338V C ELECTRO 50V RSS 0.33MF (5X11)
CE516~CE517 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE601 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP
CE602~CE604 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE605~CE610 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11)
CE611 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE650 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP
CE651~CE652 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CN600 9728820200 CONN AS 2.0P 20-11P 130MM AWG1007 #28
CN610 9728820100 CONN AS 2.0P 20-6P 140MM AWG1007 #28
CN620 9728820000 CONN AS 1.25P 14P 160MM AWG1571 #28
CW408 9728820700 CONN AS 2.0P 12P 110MM AWG1007 #26
CW600 9728820200 CONN AS 2.0P 20-11P 130MM AWG1007 #28
CW610 9728820100 CONN AS 2.0P 20-6P 140MM AWG1007 #28
CW620 9728820000 CONN AS 1.25P 14P 160MM AWG1571 #28
CW713 9CD6265200 CONN WAFER 52045-2245 TOP ENTRY
D500~D501 D1N4007--- DIODE 1N4007
HB332 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
HB371~HB372 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
HB373 HLC189J03A COIL CHIP 1.8UH
HB374 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
HB600 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
HB601 HRFT000-BA R CHIP 1/10 0 OHM 1608
HB602 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
HB603 HRFT000-BA R CHIP 1/10 0 OHM 1608
HB604 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
HB625 HRFT000-BA R CHIP 1/10 0 OHM 1608
HB630 HRFT000-BA R CHIP 1/10 0 OHM 1608
HC301~HC306 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608
HC307~HC308 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
HC309~HC310 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608
HC311~HC312 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC317~HC318 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608
HC319~HC320 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
HC321~HC322 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC327~HC328 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608
HC329~HC330 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
HC331~HC332 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC345 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
HC350~HC354 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC353 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC355 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC356~HC358 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC370~HC376 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC377 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC500 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC501 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608
HC502 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC503 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608
HC504~HC506 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC509 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
HC511~HC512 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC513~HC514 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC515~HC516 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
HC517 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC518~HC519 HCBK224KBA C CHIP CERA 50V X7R 0.22MF K 1608
HC522~HC523 HCBK224KBA C CHIP CERA 50V X7R 0.22MF K 1608
HC524 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC525 HCBK684KBA C CHIP CERA 50V X7R 0.68MF K 1608
HC526 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC532 HCBK683KBA C CHIP CERA 50V X7R 0.068MF K 1608
HC533 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
HC534 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608
HC535 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608
HC536 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC537 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608
HC538~HC539 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC540 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
PCB DSP ASS'Y [9CDC067300]
