Daewoo DHC-X100 Series User Manual

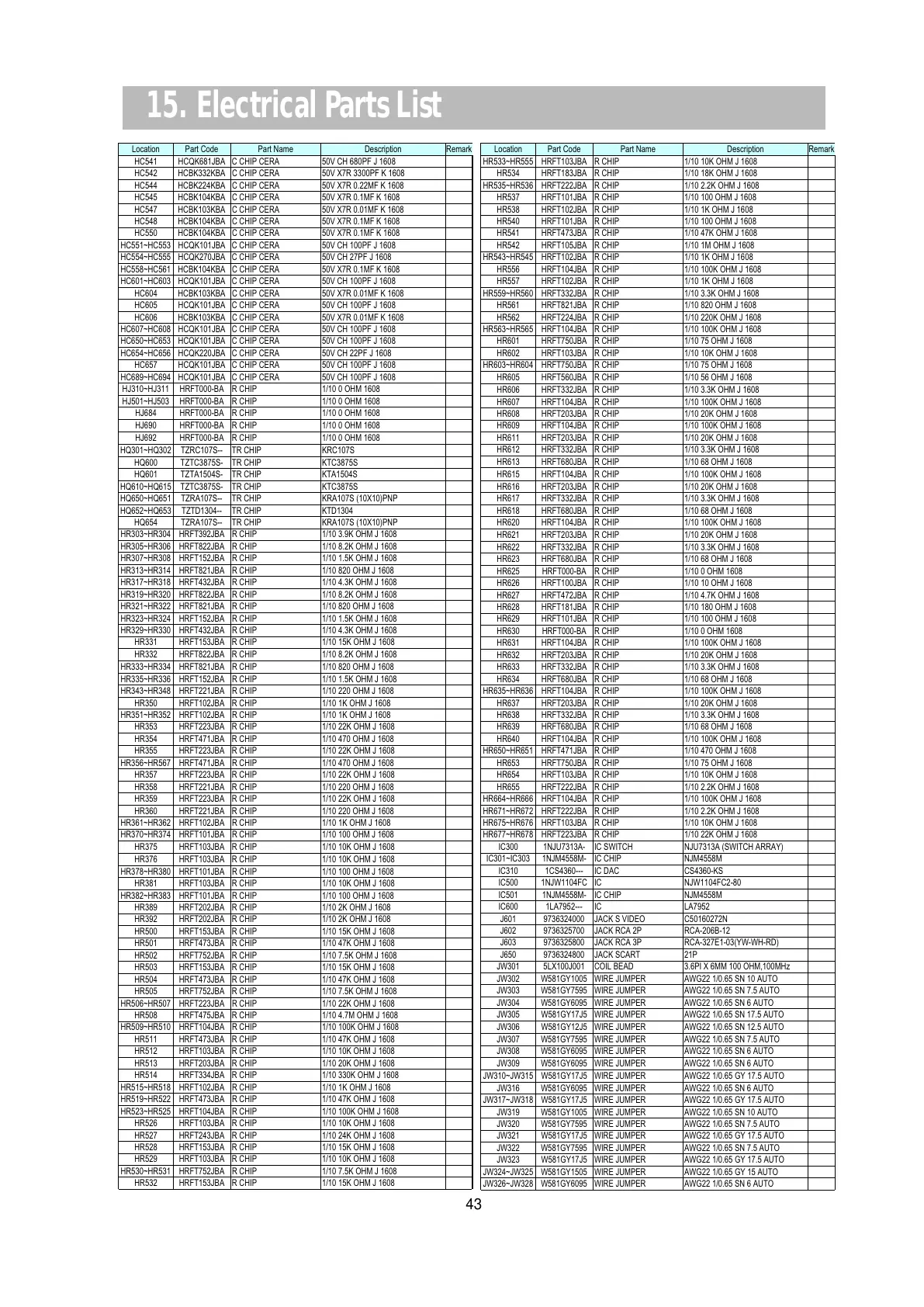

15. Electrical Parts List
43
Location Part Code Part Name Description Remark
HC541 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608
HC542 HCBK332KBA C CHIP CERA 50V X7R 3300PF K 1608
HC544 HCBK224KBA C CHIP CERA 50V X7R 0.22MF K 1608
HC545 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC547 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC548 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC550 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC551~HC553 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC554~HC555 HCQK270JBA C CHIP CERA 50V CH 27PF J 1608
HC558~HC561 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC601~HC603 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC604 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC605 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC606 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC607~HC608 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC650~HC653 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC654~HC656 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC657 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC689~HC694 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HJ310~HJ311 HRFT000-BA R CHIP 1/10 0 OHM 1608
HJ501~HJ503 HRFT000-BA R CHIP 1/10 0 OHM 1608
HJ684 HRFT000-BA R CHIP 1/10 0 OHM 1608
HJ690 HRFT000-BA R CHIP 1/10 0 OHM 1608
HJ692 HRFT000-BA R CHIP 1/10 0 OHM 1608
HQ301~HQ302 TZRC107S-- TR CHIP KRC107S
HQ600 TZTC3875S- TR CHIP KTC3875S
HQ601 TZTA1504S- TR CHIP KTA1504S
HQ610~HQ615 TZTC3875S- TR CHIP KTC3875S
HQ650~HQ651 TZRA107S-- TR CHIP KRA107S (10X10)PNP
HQ652~HQ653 TZTD1304-- TR CHIP KTD1304
HQ654 TZRA107S-- TR CHIP KRA107S (10X10)PNP
HR303~HR304 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608
HR305~HR306 HRFT822JBA R CHIP 1/10 8.2K OHM J 1608
HR307~HR308 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR313~HR314 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR317~HR318 HRFT432JBA R CHIP 1/10 4.3K OHM J 1608
HR319~HR320 HRFT822JBA R CHIP 1/10 8.2K OHM J 1608
HR321~HR322 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR323~HR324 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR329~HR330 HRFT432JBA R CHIP 1/10 4.3K OHM J 1608
HR331 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR332 HRFT822JBA R CHIP 1/10 8.2K OHM J 1608
HR333~HR334 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR335~HR336 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR343~HR348 HRFT221JBA R CHIP 1/10 220 OHM J 1608
HR350 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR351~HR352 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR353 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR354 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR355 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR356~HR567 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR357 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR358 HRFT221JBA R CHIP 1/10 220 OHM J 1608
HR359 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR360 HRFT221JBA R CHIP 1/10 220 OHM J 1608
HR361~HR362 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR370~HR374 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR375 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR376 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR378~HR380 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR381 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR382~HR383 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR389 HRFT202JBA R CHIP 1/10 2K OHM J 1608
HR392 HRFT202JBA R CHIP 1/10 2K OHM J 1608
HR500 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR501 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR502 HRFT752JBA R CHIP 1/10 7.5K OHM J 1608
HR503 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR504 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR505 HRFT752JBA R CHIP 1/10 7.5K OHM J 1608
HR506~HR507 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR508 HRFT475JBA R CHIP 1/10 4.7M OHM J 1608
HR509~HR510 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR511 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR512 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR513 HRFT203JBA R CHIP 1/10 20K OHM J 1608
HR514 HRFT334JBA R CHIP 1/10 330K OHM J 1608
HR515~HR518 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR519~HR522 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR523~HR525 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR526 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR527 HRFT243JBA R CHIP 1/10 24K OHM J 1608
HR528 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR529 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR530~HR531 HRFT752JBA R CHIP 1/10 7.5K OHM J 1608
HR532 HRFT153JBA R CHIP 1/10 15K OHM J 1608
Location Part Code Part Name Description Remark
HR533~HR555 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR534 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR535~HR536 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR537 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR538 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR540 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR541 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR542 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR543~HR545 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR556 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR557 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR559~HR560 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR561 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR562 HRFT224JBA R CHIP 1/10 220K OHM J 1608
HR563~HR565 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR601 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR602 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR603~HR604 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR605 HRFT560JBA R CHIP 1/10 56 OHM J 1608
HR606 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR607 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR608 HRFT203JBA R CHIP 1/10 20K OHM J 1608
HR609 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR611 HRFT203JBA R CHIP 1/10 20K OHM J 1608
HR612 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR613 HRFT680JBA R CHIP 1/10 68 OHM J 1608
HR615 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR616 HRFT203JBA R CHIP 1/10 20K OHM J 1608
HR617 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR618 HRFT680JBA R CHIP 1/10 68 OHM J 1608
HR620 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR621 HRFT203JBA R CHIP 1/10 20K OHM J 1608
HR622 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR623 HRFT680JBA R CHIP 1/10 68 OHM J 1608
HR625 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR626 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR627 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR628 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR629 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR630 HRFT000-BA R CHIP 1/10 0 OHM 1608
HR631 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR632 HRFT203JBA R CHIP 1/10 20K OHM J 1608
HR633 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR634 HRFT680JBA R CHIP 1/10 68 OHM J 1608
HR635~HR636 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR637 HRFT203JBA R CHIP 1/10 20K OHM J 1608
HR638 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR639 HRFT680JBA R CHIP 1/10 68 OHM J 1608
HR640 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR650~HR651 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR653 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR654 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR655 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR664~HR666 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR671~HR672 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR675~HR676 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR677~HR678 HRFT223JBA R CHIP 1/10 22K OHM J 1608
IC300 1NJU7313A- IC SWITCH NJU7313A (SWITCH ARRAY)
IC301~IC303 1NJM4558M- IC CHIP NJM4558M
IC310 1CS4360--- IC DAC CS4360-KS
IC500 1NJW1104FC IC NJW1104FC2-80
IC501 1NJM4558M- IC CHIP NJM4558M
IC600 1LA7952--- IC LA7952
J601 9736324000 JACK S VIDEO C50160272N
J602 9736325700 JACK RCA 2P RCA-206B-12
J603 9736325800 JACK RCA 3P RCA-327E1-03(YW-WH-RD)
J650 9736324800 JACK SCART 21P
JW301 5LX100J001 COIL BEAD 3.6PI X 6MM 100 OHM,100MHz
JW302 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW303 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW304 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW305 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW306 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW307 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW308 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW309 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW310~JW315 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW316 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW317~JW318 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW319 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW320 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW321 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW322 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW323 W581GY17J5 WIRE JUMPER AWG22 1/0.65 GY 17.5 AUTO
JW324~JW325 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW326~JW328 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
