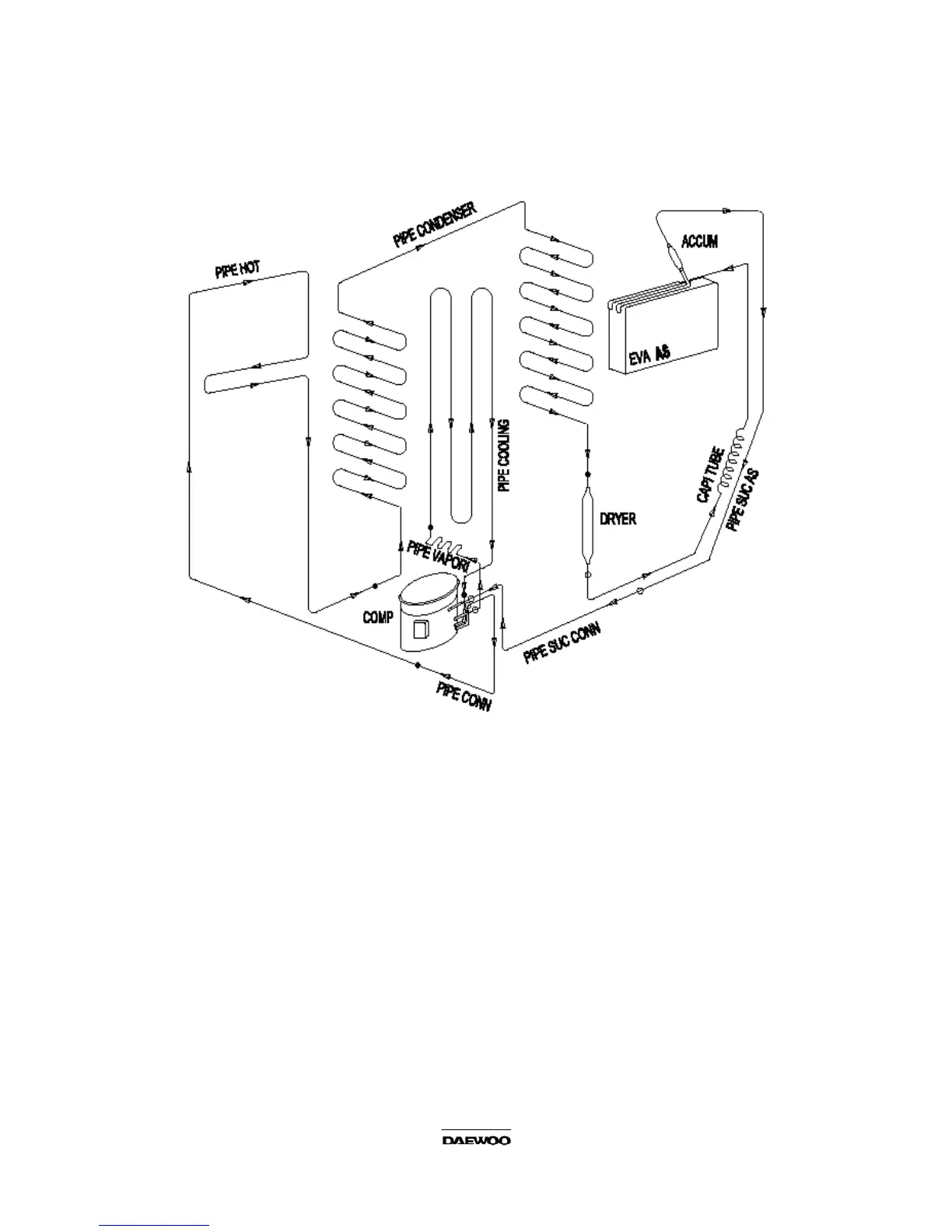

5-4. REFRIGERANT CYCLE DIAGRAM
▶ WELDING SPECIFICATIONS
○ : 5% SILVER ● : 35% SILVER
▶ CYCLE FLOW SEQUENCE
COMPRESSOR(DEL) → PIPE VAPORI → PIPE COOLING →
COMPRESSOR(COOLING IN & OUT) → PIPE CONN → PIPE HOT → PIPE
CONDENSER → DRYER → CAPILLARY TUBE → EVAPORATOR →
ACCUMULATOR → PIPE SUCTION → PIPE SUCTION CONN →
COMPRESSOR(SUC)
19
