Daewoo DM-K40 - 2.3. MPEG Circuitry; 2.3.1. MPEG Circuit Diagram

Daewoo DM-K40 Service Manual
Page 22
2.3. MPEG Circuit Diagram and Component Layout
2.3.1. MPEG Circuit Diagram

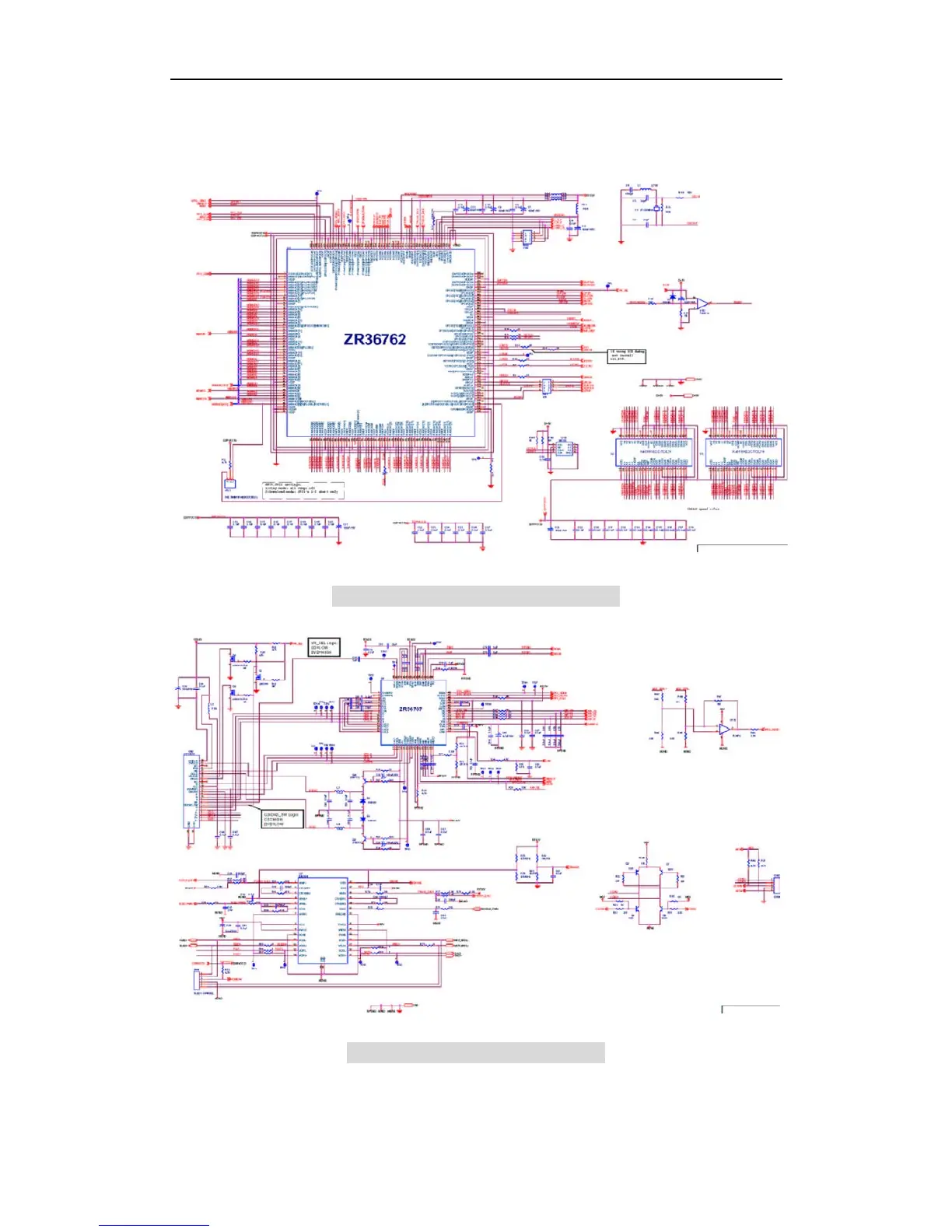

Fig 2-8 ZR36762/ZR36768&SDRAM
Fig2-9 RF AMPLIFIER&DRIVER
