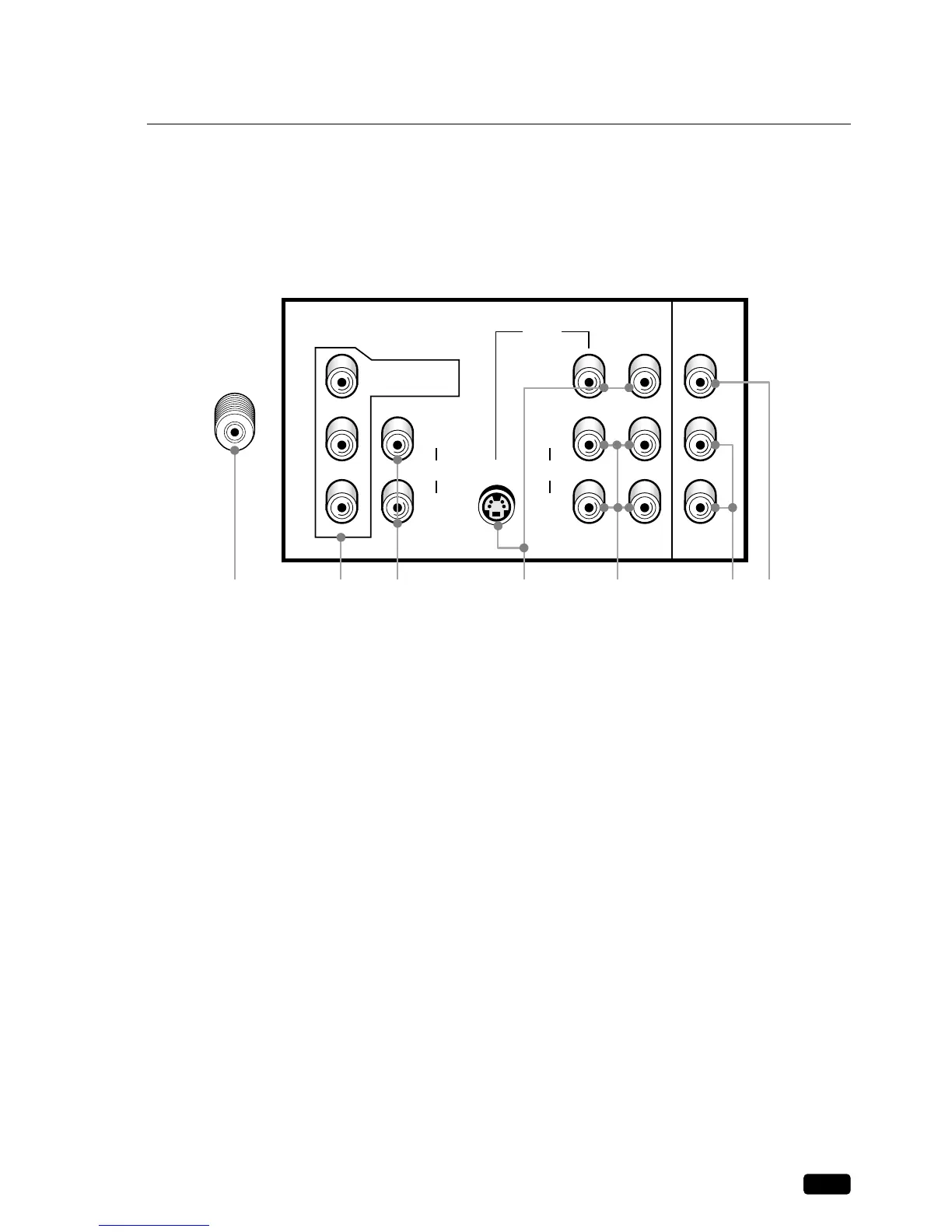

Your TV's Back Panel
1 Antenna terminal(ANT)
Use this terminal to attach an antenna or cable system to your TV.
2 VIDEO IN
These terminals allow the TV to receive video signals from another A/V components.
* S-VIDEO jack is used to receive the separated video signal, such as Y/C signals from the
S-VHS VCR.
3 AUDIO IN
This terminal allows the TV to receive audio signals from another A/V components.
4 VIDEO OUT
This terminal allows the other component to receive a video signal from your TV.
* This terminal is not effective on the CVI mode and the S-VIDEO mode.
5 AUDIO OUT
This terminal allows the other component to receive a audio signal from your TV.
6 Y / PB / PR IN(Component Video Input)
This terminal allows the TV to receive a Y/PB/PR signal from another component, such as DVD.
7 COMPONENT INPUT AUDIO IN
This terminal allows the TV to receive an audio signal from another component, such as a DVD.
3
Chapter 1 :
Overview of Your Equipment
