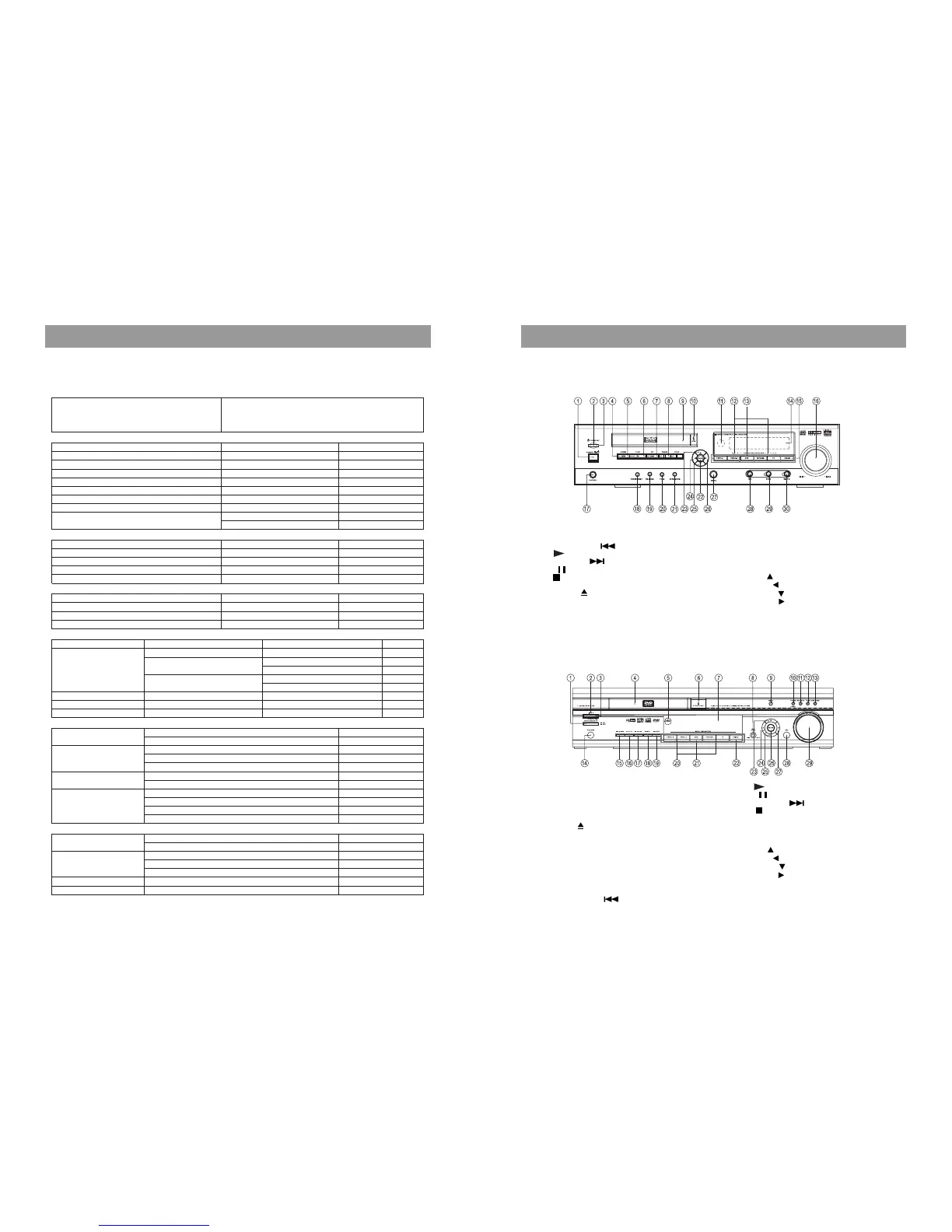

Daewoo DV - 115 - 1 Specifications; 2 Location of Users Controls; Front Panel

1. Specifications
Model : DV-115
2. Location of Users Controls
Model : DV-115
-. Front Panel
1) DV-115
1. POWER ON/OFF switch
2. STANDBY indicator
3. STANDBY/ON button
4. SKIP/SEARCH DOWN ( ) button
5. PLAY ( ) button
6. SKIP/SEARCH UP ( ) button
7. PAUSE ( ) button
8. STOP ( ) button
9. DVD/VIDEO CD/MP3 CD/audio CD disc tray
10. OPEN/CLOSE ( ) button
11. Remote control sensor
12. Input selector :
VIDEO 1, VIDEO 2, TAPE/MD, TV buttons
13. Input selector : DVD buttons
14. Display
15. Input selector : TUNER buttons
16. MASTER VOLUME control
17. PHONES jack
18. TUNE/PRESET button
19. FM MODE button
20. TONE button
21. SURROUND MODE button
22. ENTER button
23. MOVE UP( ) button
24. MOVE LEFT( ) button
25. MOVE DOWN( ) button
26. MOVE RIGHT( ) button
27. MENU button
28. MIC jack(Option)
29. ECHO LEVEL control(Option)
30. MIC VOL control(Option)
Power Supply Power Consumption
Voltage(Option) Operating 160Watt
AC 110V or 120V or 127V or Demensions(W X D X H)/Weight
220V or 230V or 240V(50/60Hz) 430 X 380 X 97mm/9.2kg
Power Output at 0.2% THD At 1KHz 6 ohms 30W X 2
Total Harmonic Distortion At 1KHz 1 W 0.3%
Input Sen./Impedance @ 1KHz, 47K ohms TV , Tape/MD 200mV ± 30/47K
Output Level / Impedance @ 1KHz Tape Rec 200mV ± 30/2.2K
Frequency Response at 1W : TV, Tape/MD -3dB 20 ~ 50KHz
S/N Ratio IHF-A Weighted TV , Tape/MD 90dB
Subwoofer Turnover Frequency 120Hz
Channel Separation 1KHz 45dB
Crosstalk Tape/MD --> TV 60dB
TV --> Tape/MD 60dB
Power Output at 0.2% THD At 1KHz 6 ohms 30W
Total Harmonic Distortion At 1KHz 1W 0.3%
S/N Ratio IHF-A Weighted Rated Output 55dB
Frequency Response Large 1W 30 ~ 20KHz
Dolby Mode Small 1W 120 ~ 20KHz
Power Output at 0.2% THD At 1KHz 6 ohms 30W X 2
Total Harmonic Distortion At 1KHz 1 W 1.0%
S/N Ratio Dolby Rated Output 55dB
Frequency Response(Only Dolby) ± 3dB 1W 120 ~ 6KHz
Input Sen./Impedance Composite Video(Video1, Video2) 1Vp-p/75 ohms ± 0.5dB
Output Level / Impedance C-Video(Video1 Rec, Monitor) 1Vp-p/75 ohms ± 0.5dB
S-Video(DVD Only) Y:1Vp-p/75 ohms, negative sync. ± 0.5dB
C: 0.286Vp-p/75 ohms ± 0.5dB
Component Out(DVD Only) Y:1Vp-p/75 ohms, negative sync. ± 0.5dB
Cr, Cb: 0.7Vp-p/75 ohms ± 0.5dB
Frequency Response 5MHz ~ 6NHz + 0/-3dB + 0/-3dB
Crosstalk @ 1MHz 45dB 40dB
S/N Ratio 45dB 40dB
Tuning Range USA Version 87.5 ~ 108MHz
Multi Europe Version 87.5 ~ 108MHz
Frequency Step USA Version 100KHz
Multi Version 50KHz / 100KHz
Europe Version 50KHz
Usable Sens. 75 ohms S/N 30dB USA Version 2uV(17.2dBf)
S/N 26dB Europe Version 3uV(20.8dBf)
S/N Ratio @ 1mV IHF-A Mono USA Version 70dB
Mono Europe Version 70dB
Stereo USA Version 65dB
Stereo Europe Version 63dB
Tuning Range USA Version 530 ~ 1710kHz
Europe Version 522 ~ 1620kHz
Frequency Step USA Version 10KHz
Multi Version 10 / 9KHz
Europe Version 9KHz
Usable Sensitivity 1000/999KHz S/N 20dB 800uV/m
S/N Ratio 400Hz, 30%Mod, 1000KHz(10mV Input) 40dB
FM Tuner Section FM ANT Impedance : 75 ohms
MW(AM) Tuner Section
Front Amp. Section
Center Amp Section
Rear Amp Section
Video Section
General Specifications
5 6
EDR-700S
1. POWER ON/OFF switch
2. STANDBY indicator
3. STANDBY/ON button
4. DVD/VIDEO CD/MP3 CD/audio CD disc tray
5. Remote control sensor
6. OPEN/CLOSE ( ) button
7. Display
8. MIC LEVEL control
9. MENU button
10. TUNING/PRESET button
11. FM MODE button
12. TONE button
13. SURROUND MODE button
14. PHONES jack
15. SKIP/SEARCH DOWN ( ) button
16. PLAY ( ) button
17. PAUSE ( ) button
18. SKIP/SEARCH UP ( ) button
19. STOP ( ) button
20. Input selector :
VIDEO 1, VIDEO 2, TAPE/MD, TV buttons
21. Input selector : DVD buttons
22. Input selector : TUNER buttons
23. MOVE UP( ) button
24. MOVE LEFT( ) button
25. MOVE DOWN( ) button
26. MOVE RIGHT( ) button
27. ENTER button
28. MIC jack(Option)
29. MASTER VOLUME control
2) DV-115
