5. Confirm that the triangular mark "A" on the Loading Gear L Ass'y is aligned with the notch "B" in the Loading Gear R
Ass'y in EJECT mode (Fig. 5)
6. Make sure that the teeth of the Loading Rack are aligned with the those of the Loading Gear R so that hole "C" of the
Loading Rack aligns with the circulr mark "D" on the Loading Gear R (fig. 5)
19

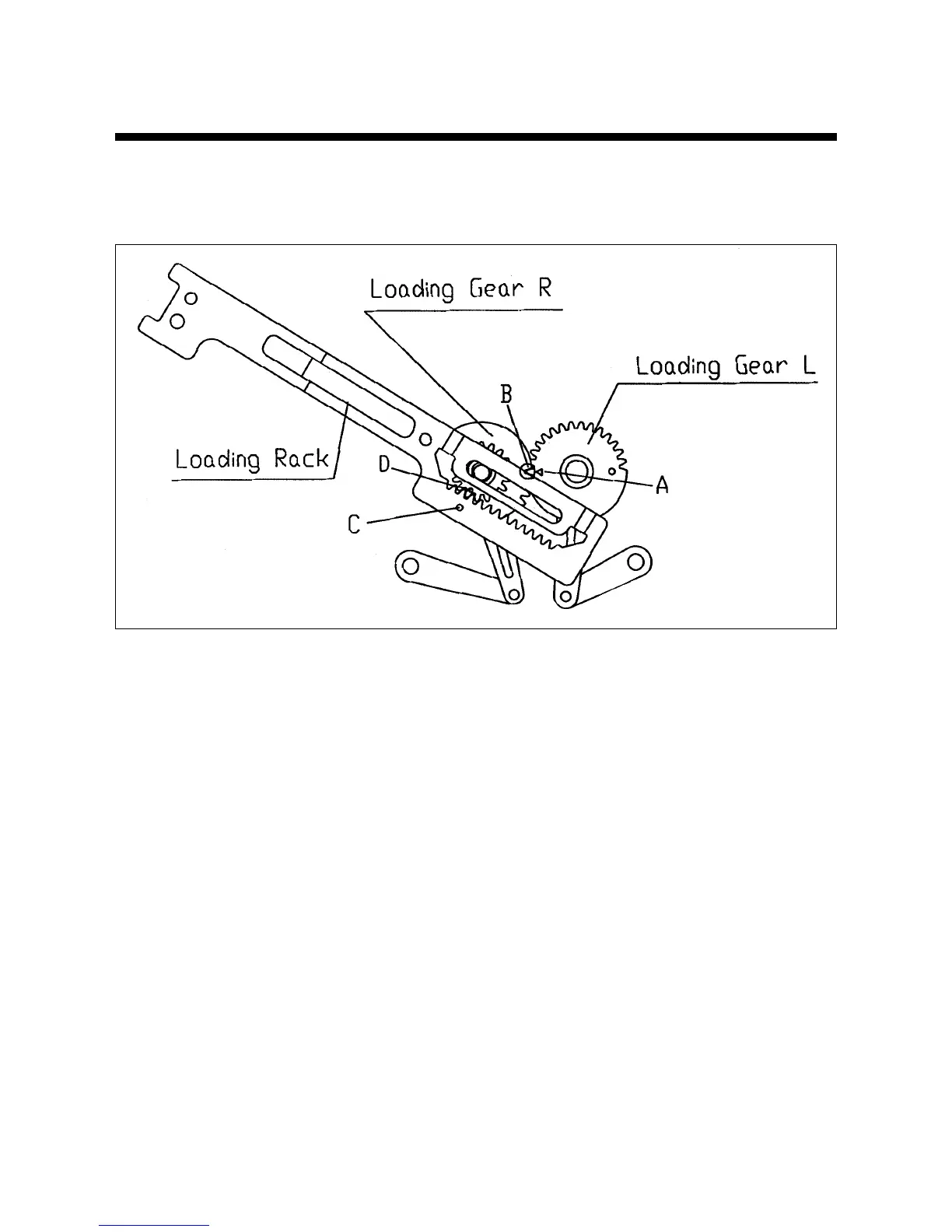

Fig. 5- Mechanical Checks/Loading Loading Rack and Loading Gear Alignment
