Daewoo DVN-14F6N - IN03 (MC4558 C) IC Details; I503(TC4066 BP) IC Details

50

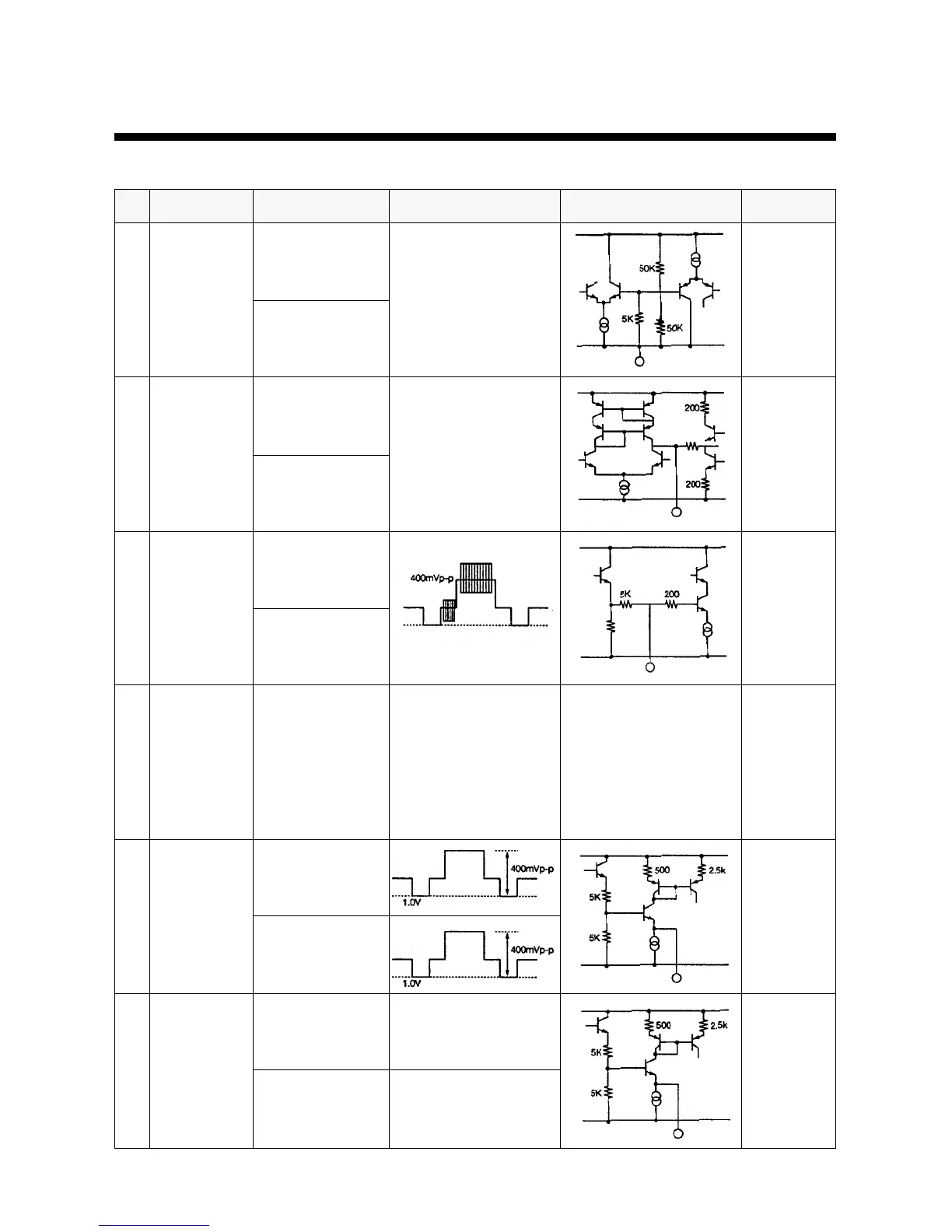

No Pin-function Type voltage(V) Signal waveform Input/Output configuration Remarks
SP 0~1.5 [V]
7 MODE-CTL LP 1.5~3.2 [V]
EP 3.2~5.0 [V]
REC = 3V
8 VCA-FILT DC
PB = 3V
REC = 2.2V
9 VCA-IN
PB = 2.2V
10 GND 0V
REC = 1.0V
11 CCD DRIVE
PB = 1.0V
PIC-CTL REC = 3V SOFT : 2.0~2.5V
HARD : 2.6V~3.2V
12
EDIT
PB = 3V EDIT when over 3.5V
