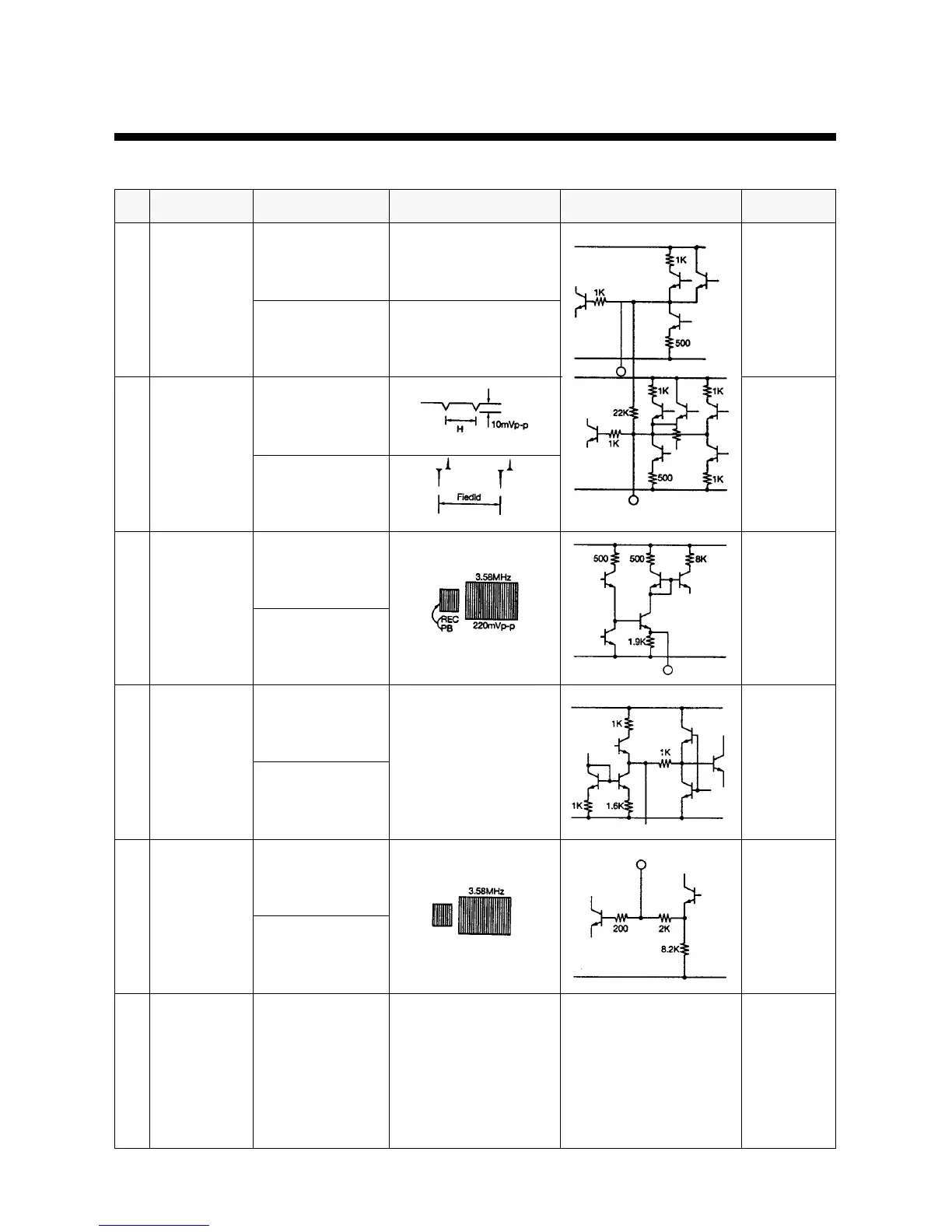

Daewoo DVN-14F6N - IU01 (BA7790 LS) IC Details

No Pin-function Type voltage(V) Signal waveform Input/Output configuration Remarks
REC = 2.8V
19 SLD-FILT
PB = 2.8V
AFC/APC
REC =2.8V
20
FILT
PB = 2.8V
REC = 1.9V
XO mode
when over 3.5V
21 C-OUT
PB = 1.9V
ANR ON
when over 3.5V
Color = 1.9V
22 KILL-FILT
Killer = 3.1V
REC = 1.7V
23 CNR-CD-IN
PB = 1.7V
CNR OFF
when over 2.5V
24 VCC-2 5.0V D.C
52
