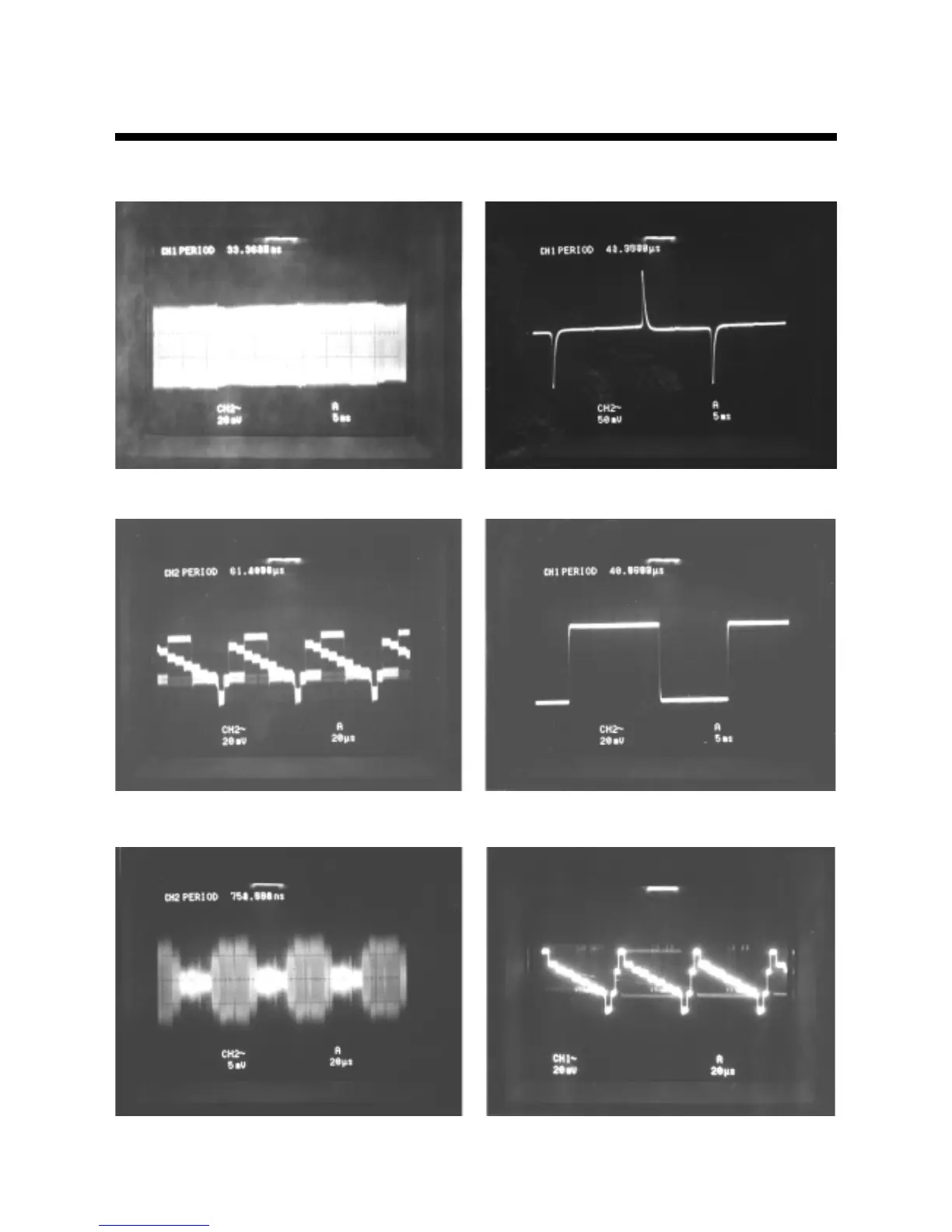

① IY01 PIN 14 (PB ENVELOPE) ② IN03 PIN 1(CTL HEAD –)
■■
IMPORTANT SIGNAL WAVEFORMS
80
③ IY01 PIN 2 (PLAY) ④ IN01 PIN 20 (CTL PULSE)
⑤ I501 PIN 38 ⑥ IY01 PIN 2 (REC)
