10

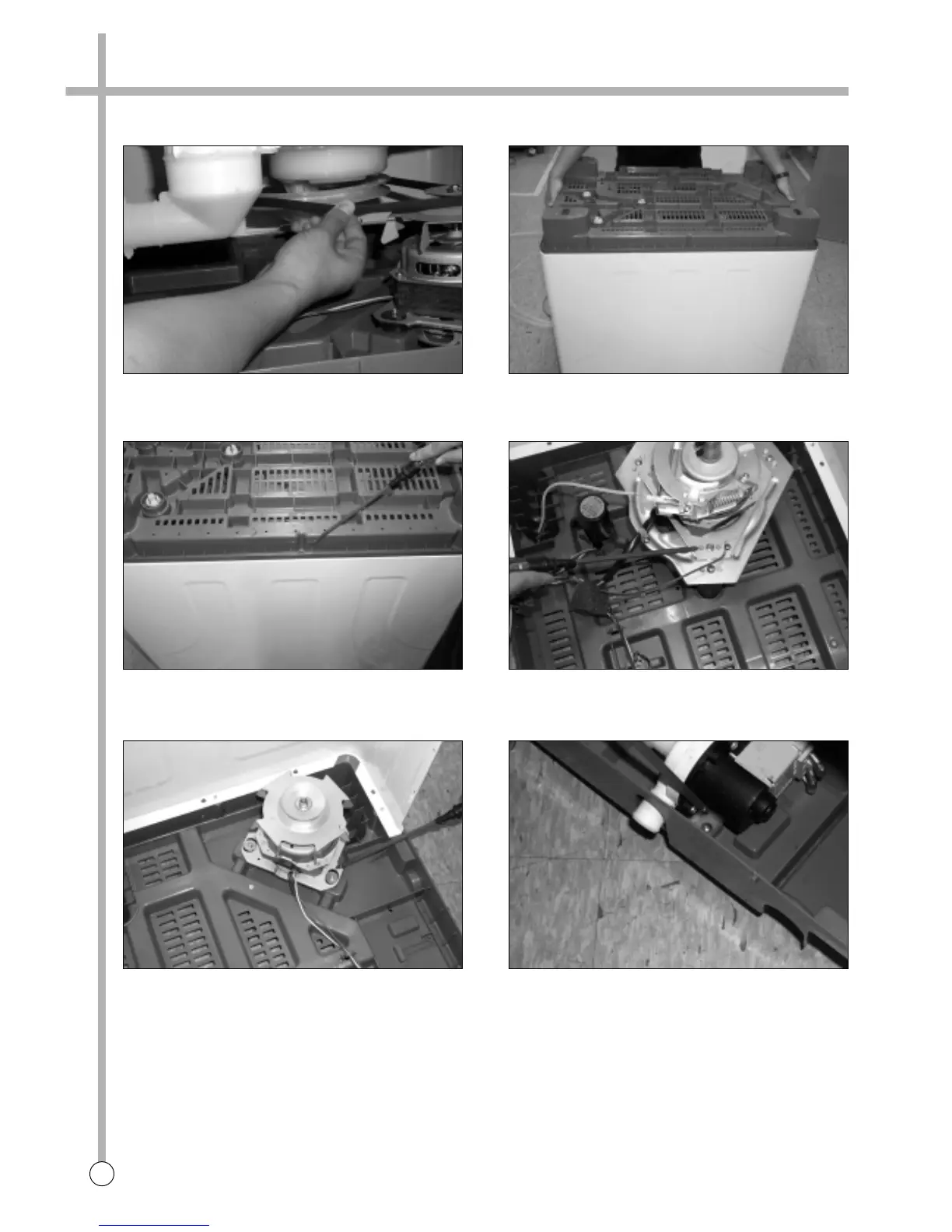

11. Remove a V-BELT from PULLEY MOTOR.
13. Remove 7 screws on the BASE UNDER ASSY.
15. Remove 3 bolts on the BASE UNDER, and
remove the WASH MOTOR.
12. Turn over the washing machine.
14. Remove 3 screws on the BRACKET MOTOR, and
remove the SPIN MOTOR.
16. Remove 1 screw on the FIXTURE PUMP. (In case
of pump model)
To Next Page
