12

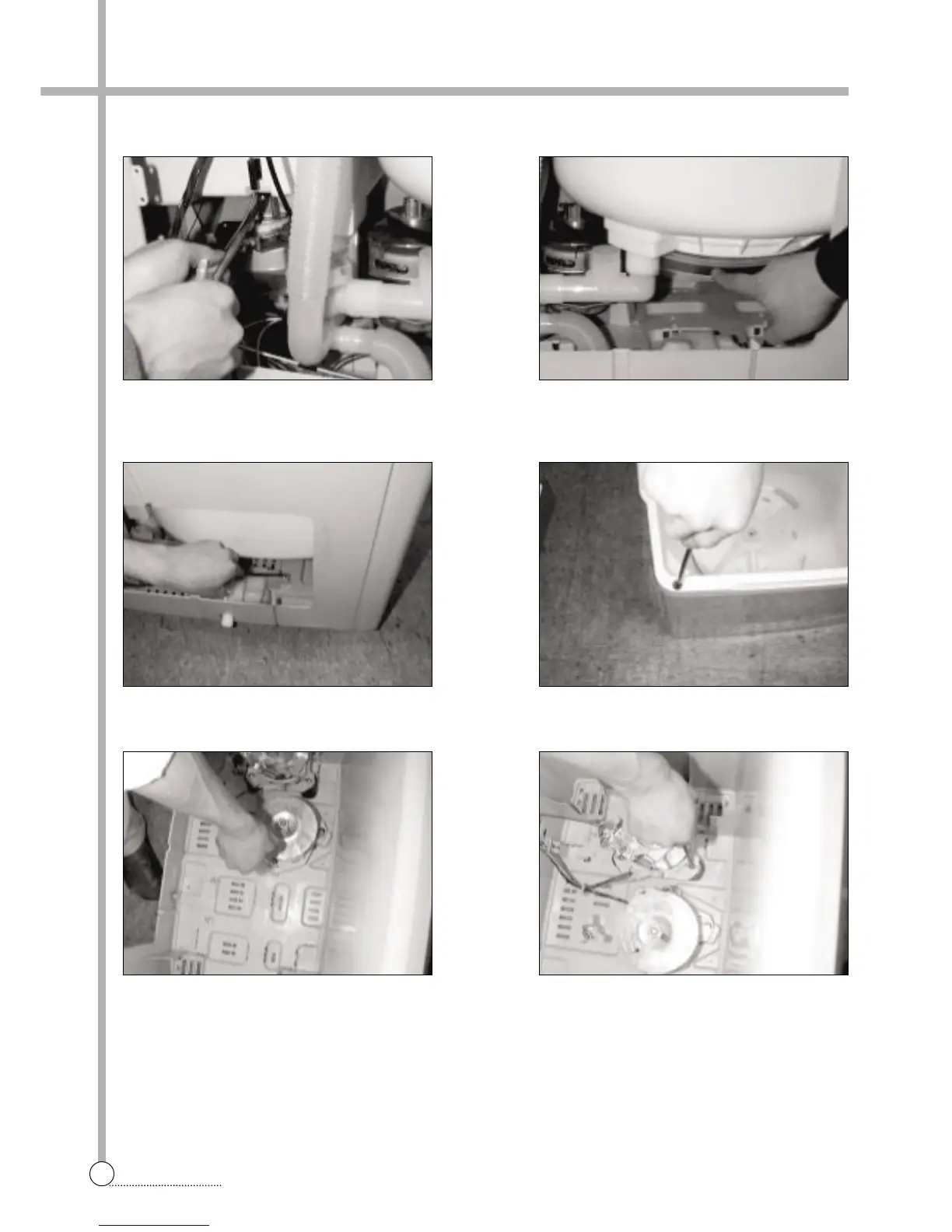

3. Remove nut and bolt on spin basket shaft and
remove spin basket.
4. Remove a belt connecting motor pulley and
pulsator pulley.
5. Remove 3 screws fixing the drain pump.
(pump model)
6. Remove cap screw(2EA) and 5 screws on
flange of the tub. And lift up the tub assembly.
7. Remove 3 screws and wash motor. 8. Remove 3 screws and spin motor.
