WAVEFORMS

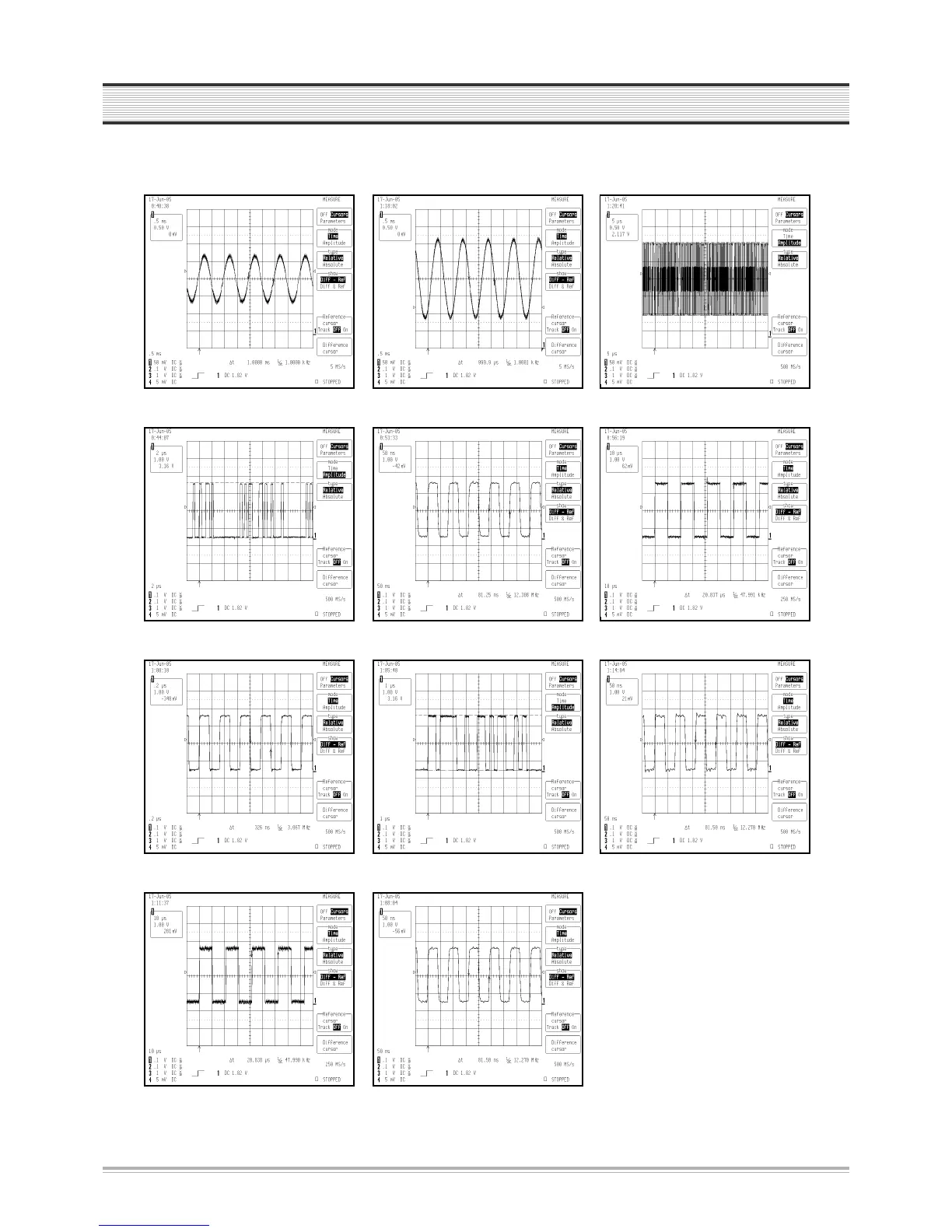

3. Audio WAVEFORMS(Test Signal : 1KHz Sinewave)
< ADC SCLK : ICA01.7 > < DAC SDIN : ICA02.1 > < DAC MCLK : ICA02.4 >
< DAC L/RCLK : ICA02.3 > < DAC SCLK : ICA02.2 >
< ADC SDOUT : ICA01.4 > < ADC MCLK : ICA01.2 > < ADC L/RCLK : ICA01.8 >
< DAC Audio Output
: ICA02.7&10 >
< ADC Audio Input : ICA01.10&12 >
<
COAXIAL Output : PC02.25
>
