WAVEFORMS

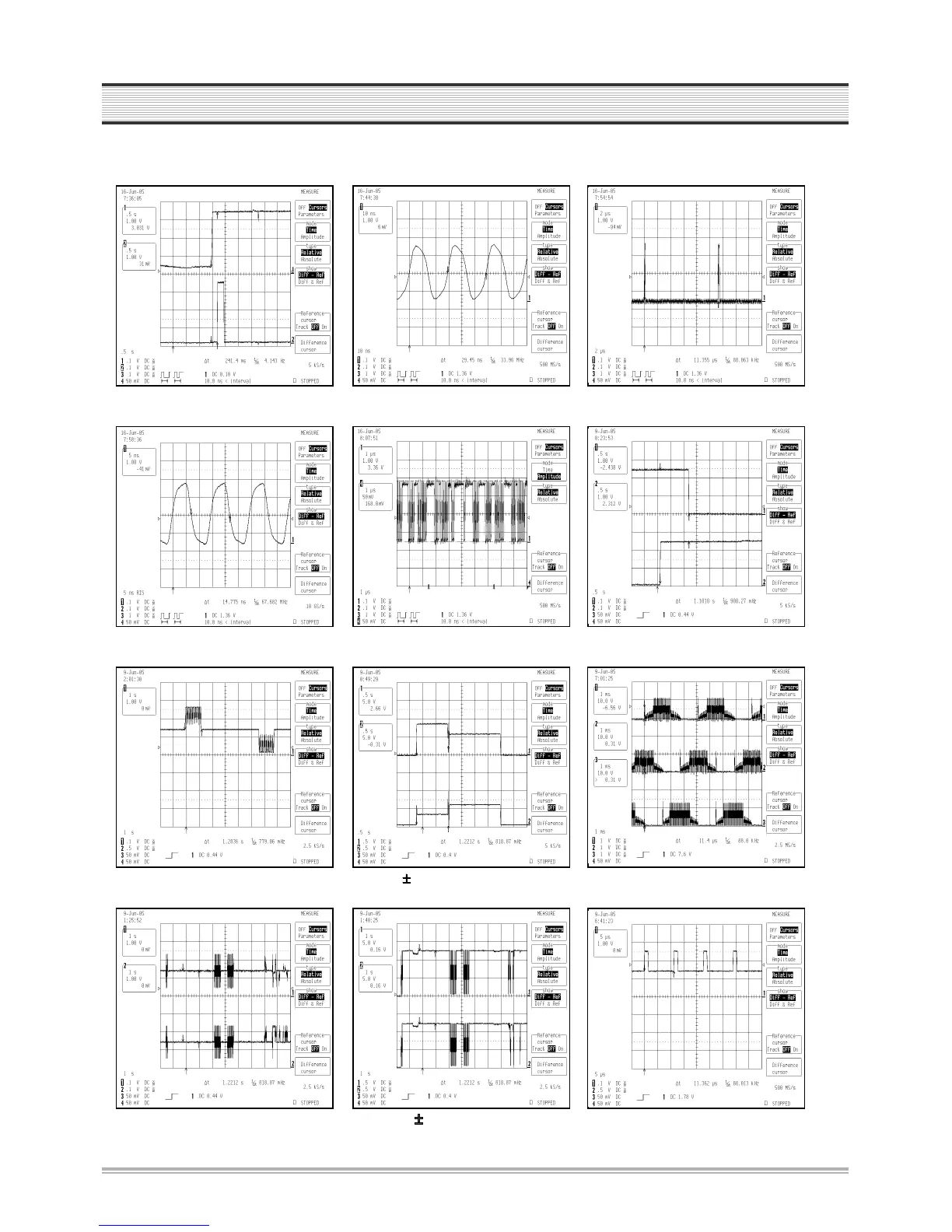

4. Front End WAVEFORMS

Tray In/Out : ICF01.173&174

< XF01 : CF52.01 > < CKE : ICF02.34 >< On/Off 3.3V & MT1818 Reset >

< CLK : ICF02.35 > < FLASH ADDR : ICF04.25 >

< SLIN1&2 : ICF08.28&29 >

< SLO

1 : ICF08.36&37 >

< SPIN(PWM5) : ICF01.14 >

< UVW(DiscPlay) : PF03.9&10&11 ><LDIN(PWM3) : ICF08.26 >

LOAD (TrayIn) : ICF08.49&50
