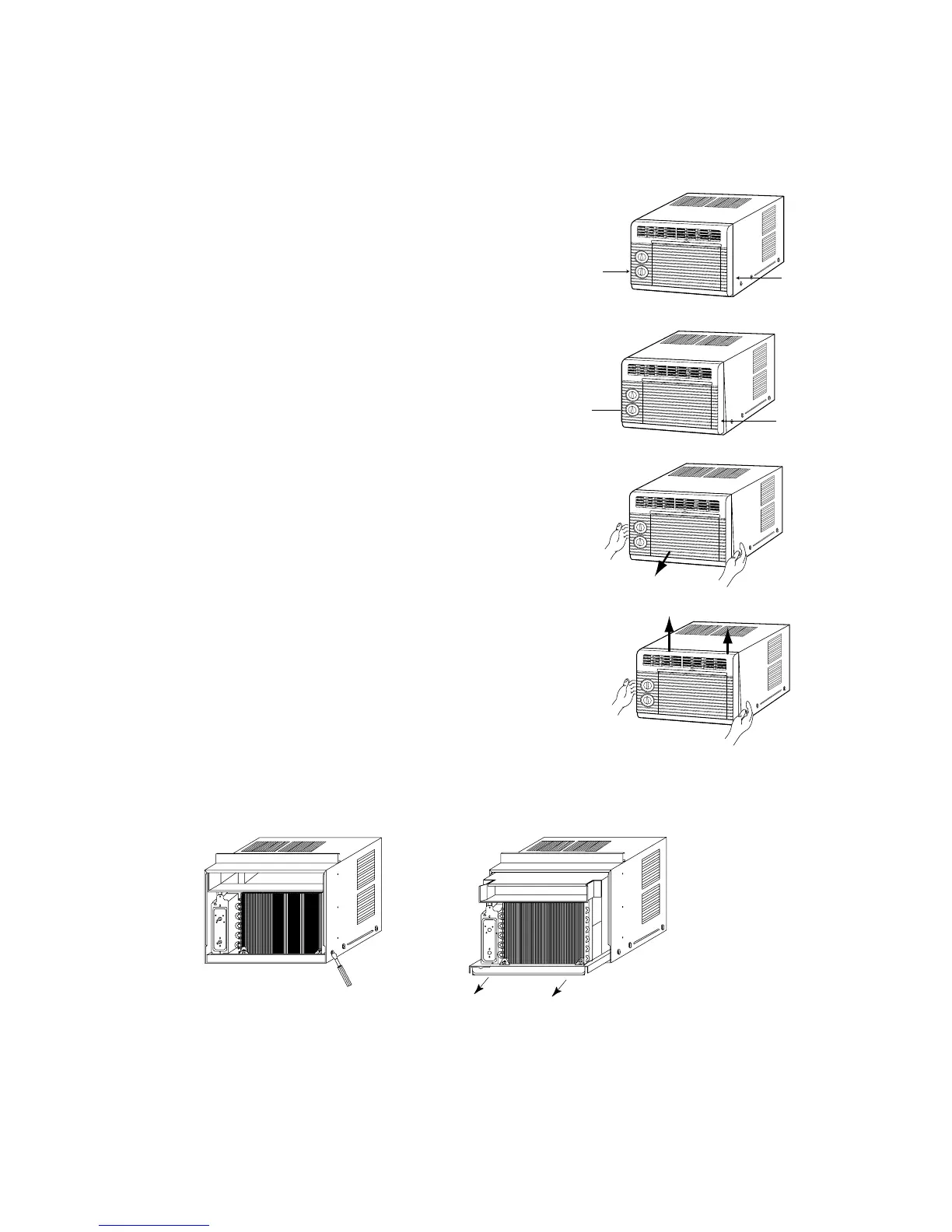

4. Disassemble Front Grille from Chassis.
– Front Grille and chassis are fixed with snap-fit.
1) Release right-lower snap-fit.
– Push the right lower side of chassis to the left, with pushing left side
of Front Grille to the right until the snap-fit is released.
2) Release left-lower snap-fit.
– Push the left-lower side of chassis to the right, with pushing right
side of Front Grille to the right until the snap-fit is released.
3) Pull lower side of the Front Grille until it is separated from the
chassis. (when knobe remain, pull Front Grille until knobs are
released from control)
4) Push base side of the Front Grille to upper side until it is separated
from the chassis.
5. After front grille is removed, remove two screws located in both side of chassis and pull out the unit from chassis.
