8
• Step 6 - Recheck Installation
To be sure you have correctly installed your Room Air Conditioner, review the steps and make sure all of the
parts are securely fastened in the window as the instructions show. A tight seal is essential.
Read through the Use & Care manual to become familiar with the operation of your room air conditioner.

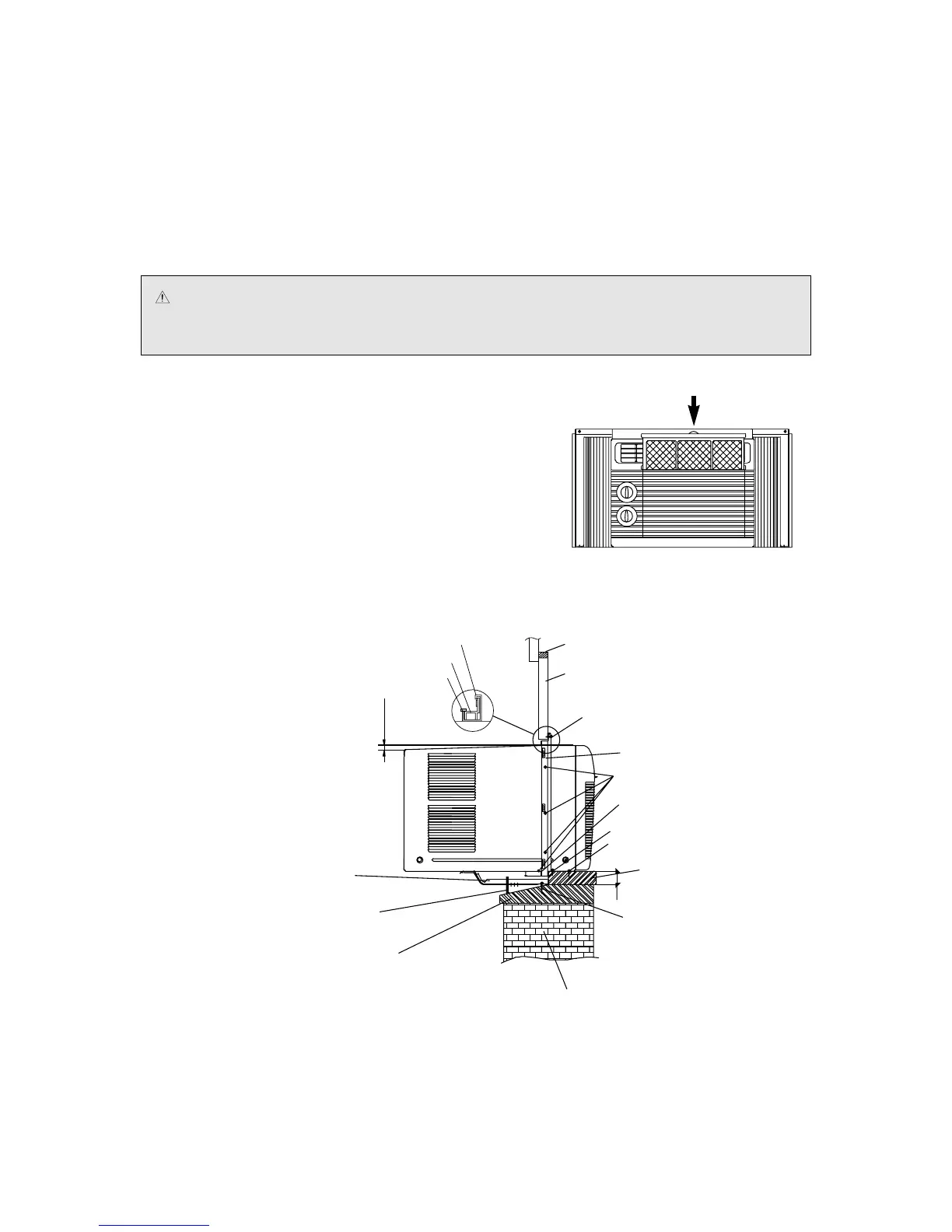

• Step 7 - Install Unit and assemble Front Grille
1. Push the unit into the installed Chassis.
2. Fasten Base Pan and Chassis with screws to side holes.
3. Assemble Front Grille into Chassis holes.
– Snap Front Grille’s hook to each Chassis holes.
4. Fasten Front Grille with screws.
5. Insert Filter into the Front Grille.
6. Push the Knobs into the control.
• Step 8 - Recheck the entire installation
WALL
Screw (Type B, 2x2=4 pieces)
SILL
Screw (Type C, 3 pieces)
Screw (Type C, 2x1=2 pieces)
GUIDE LOWER
WINDOW KIT 'R & 'L
Screw (Type D, 2x4=8 pieces)
Screw (Type C, 2 pieces)
WINDOW SEAL A
WINDOW SASH
SILL BRACKET(2 pieces)
OUTER WINDOW SILL
Leveling Screw (Type A, 2x1= 2 pieces)
TOP GUIDE
WINDOW KIT FRAME
WINDOW SEAL B
38mm
15
0.28"~0.39"(7~10mm)
CAUTION Do not lift window sash without holding the unit. The window sash helps keep the unit in the
window. Exercise caution when opening the window. Failure to do so many result in
personal injury and/or property damage.
