Daewoo DWD-FD1431 User Manual

24

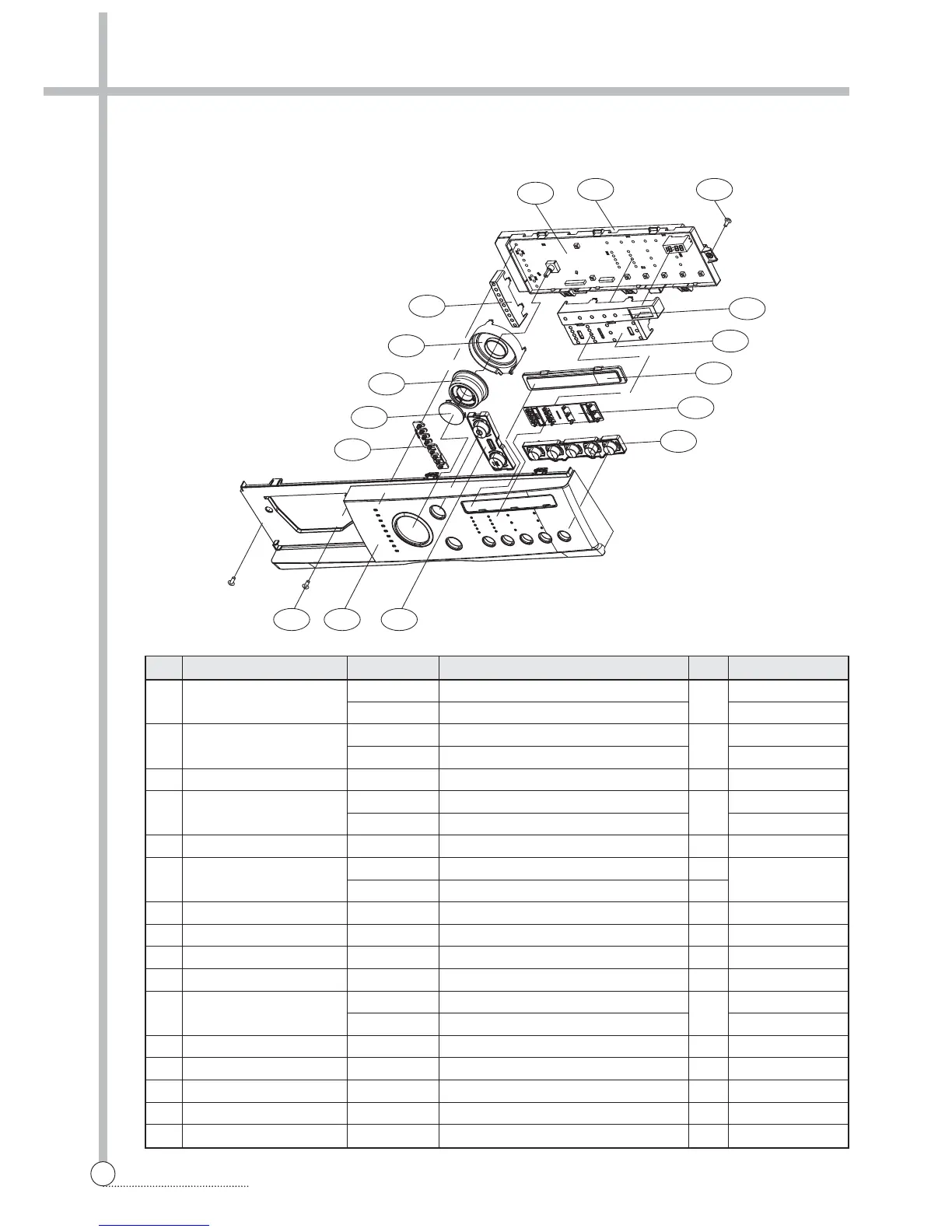

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-FD144X SERIES)
B02
B01
B14
B05
B07
B06
B08
B16
B15
B09
B11
B13
B03
B04
B12
B10
B01 PANEL *F
36142T1500 HIPS
1
DWD-FD1441(2)
36142T1501 ABS + SPRAY DWD-FD1443
B02 BUTTON POWER
3616639100 ABS 1 DWD-FD1441
3616639110 ABS + SPRAY DWD-FD1442(3)
B03 WINDOW COURSE 3615507000 ABS-TR 1
B04 BUTTON SELECTION
3616639000 ABS
1
DWD-FD1441
3616639010 ABS + SPRAY DWD-FD1442(3)
B05 WINDOW DISPLAY 3615506800 ABS-TR 1
B06 PCB AS
PRPSSWFJ-- DWD-FD14'S, DONGSUH MOTOR 1
PRPSSWFL-- DWD-FD14'S, NEWMOTECH MOTOR 1
B07 HOLDER LED SELECTION 3613055300 HIPS 1
B08 CASE PCB 36111T1500 HIPS 1
B09 HOLDER DIAL 3613055500 HIPS 1
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 KNOB DIAL OUTER
3613406600 ABS DWD-FD1441
3613406610 ABS + SPRAY DWD-FD1442(3)
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 KNOB DIAL *INNER 3613406700 ABS 1 DWD-FD1441
B14 WINDOW SELECTION 3615506900 ABS-TR 1
B15 HOLDER LED COURSE 3613055400 HIPS 1
B16 DECORATOR WINDOW 3611689900 PC FILM 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
Refer to Detailed Part
Code of PCB AS
1
