Daewoo DWD-FD1431 User Manual

25

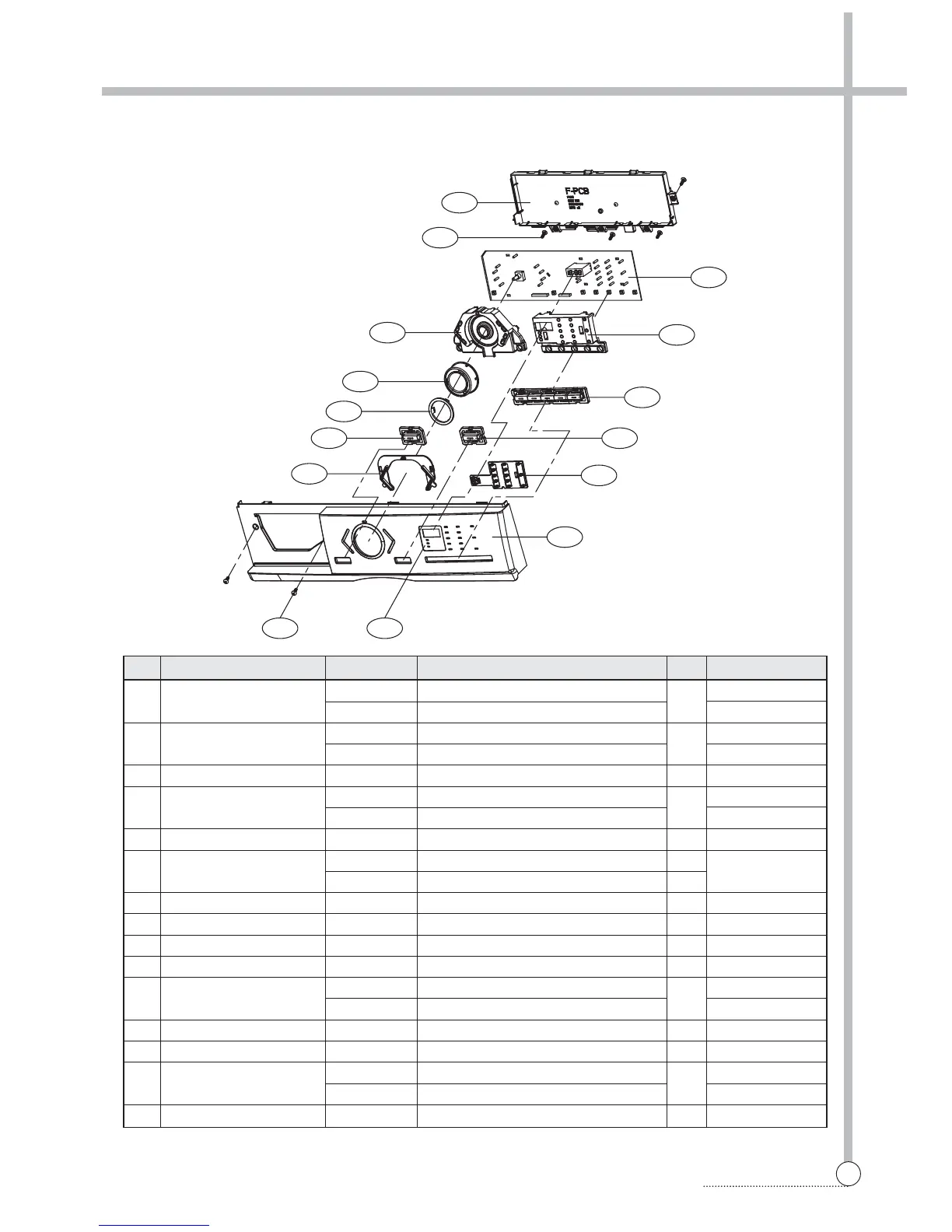

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-FD145X SERIES)
B01
B05
B14
B04
B07
B08
B10
B09
B11
B13
B02
B03
B06
Time Save
Door Lock
Child Lock
B15B12
B01 PANEL F
3614290100 HIPS, D-FU125'S
1
DWD-FD1451(2)
3614290110 ABS D-FU1253'S DWD-FD1453
B02 BUTTON POWER
3616644900 ABS
1
DWD-FD1451(2)
3616644910 ABS + SPRAY DWD-FD1453
B03 WINDOW COURSE 3615509500 ABS-TR 1 DWD-FD145X
B04 BUTTON FUNCTION
3616645100 ABS
1
DWD-FD1451(2)
3616645110 ABS + SPRAY DWD-FD1453
B05 WINDOW SELECTION 3615509600 ABS-TR 1 DWD-FD145X
B06 PCB AS
PRPSSWFJ-- DWD-FD14'S, DONGSUH MOTOR 1
PRPSSWFL-- DWD-FD14'S, NEWMOTECH MOTOR 1
B07 HOLDER LED FUNCTION 3613058800 HIPS 1 DWD-FD145X
B08 CASE PCB 3611149400 HIPS 1 DWD-FD145X
B09 HOLDER LED COURSE 3613058700 HIPS 1 DWD-FD145X
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 BUTTON DIAL
3616644800 ABS
1
DWD-FD1451(2)
3616644810 ABS + SPRAY DWD-FD1453
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 DECORATOR BUTTON DIAL 3611696400 ABS, GILDING 1 DWD-FD145X
B14 BUTTON START
3616645000 ABS
1
DWD-FD1451(2)
3616645010 ABS + SPRAY DWD-FD1453
B15 DECORATOR FILM 3611689900 P.C FILM 1 DWD-FD145X
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
Refer to Detailed Part
Code of PCB AS
