DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
13
To assemble the gear mechanism ass’y, reverse the disassembly procedure.
NOTES

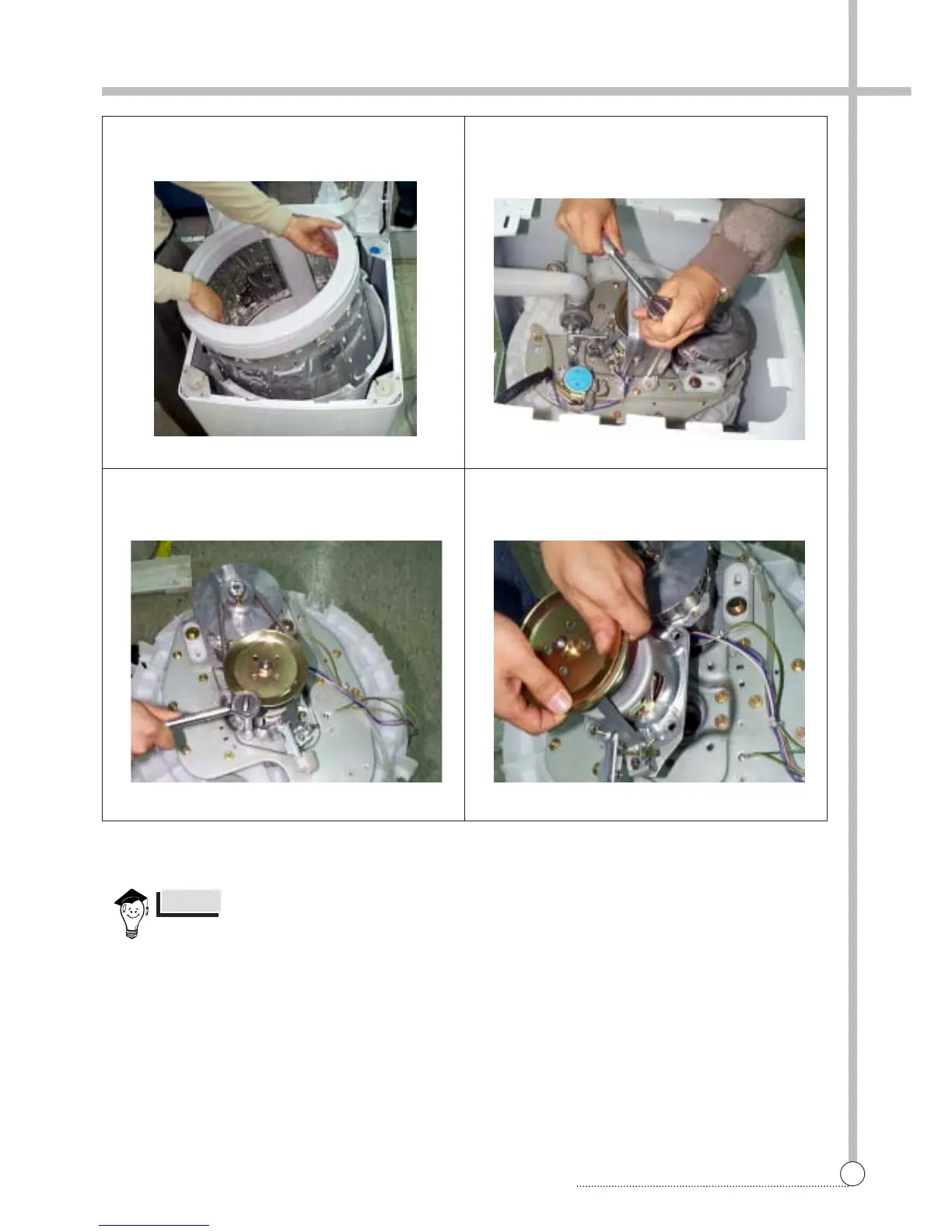

7 Remove the tub i assy.
q Remove four special bolt of gear mechanism assy by
using a box wrentch.
8 Lay the top of the washer on the floor.
9 Remove four special bolts of gear protect by using a
box wrentch and remove gear protect.
0 Remove the V-belt.
w Pull out the gear mechanism ass’y.
