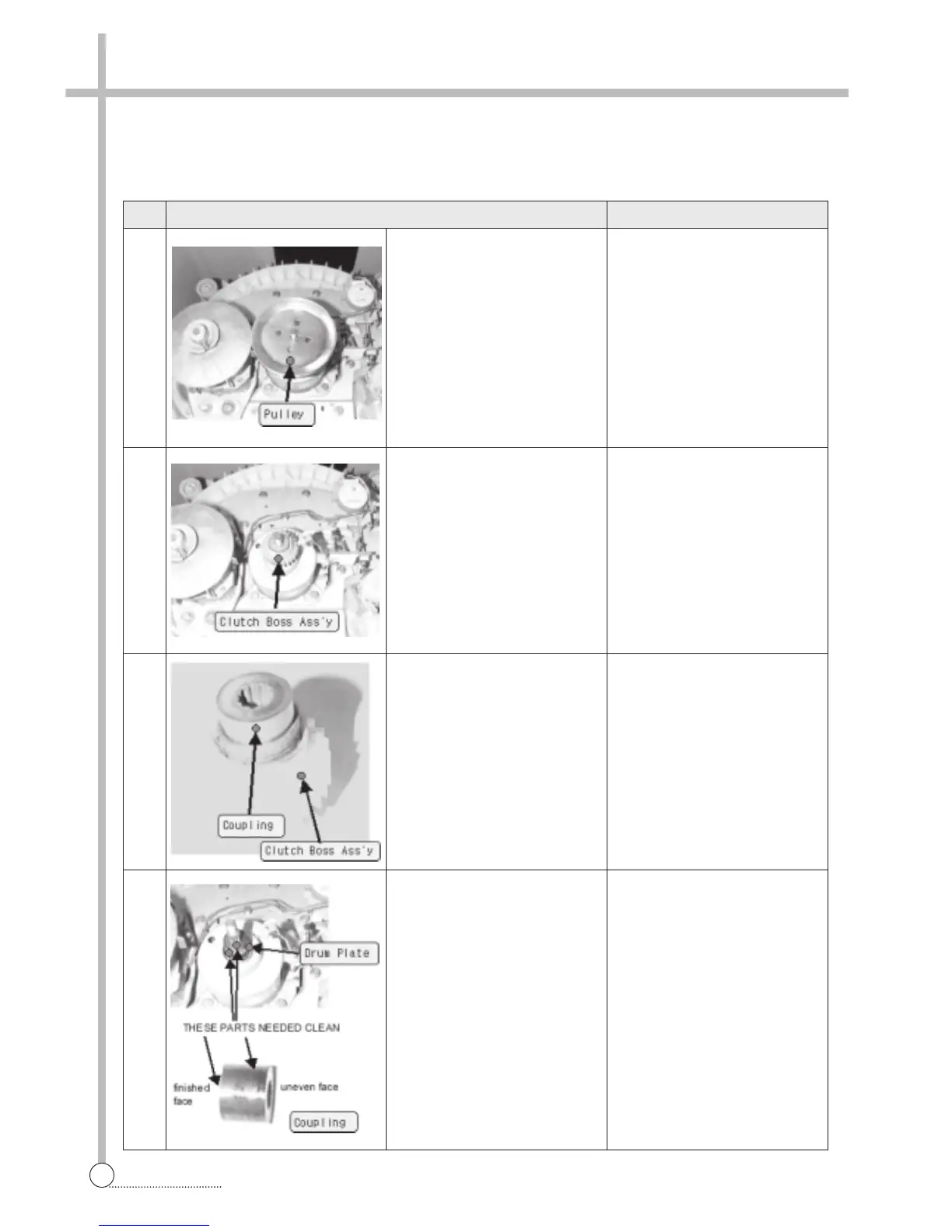

Disassemble the pulley.
Disassemble the clutch boss
assembly.
Separate coupling from clutch
boss ass’y.
Cleaning
Catch the boss and pull
upward with spiral rotate in the
clockwise direction.
Clean the drum plate, coupling
surface and contact face
between drum plate and cou-
pling.
It is necessary to keep cotton
piece goods being dry and
clean.
